Caprice V8-265 4.3L VIN W SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine
>>
Body Harness to Engine Harness
>>
Pinout Description
Pinout Description

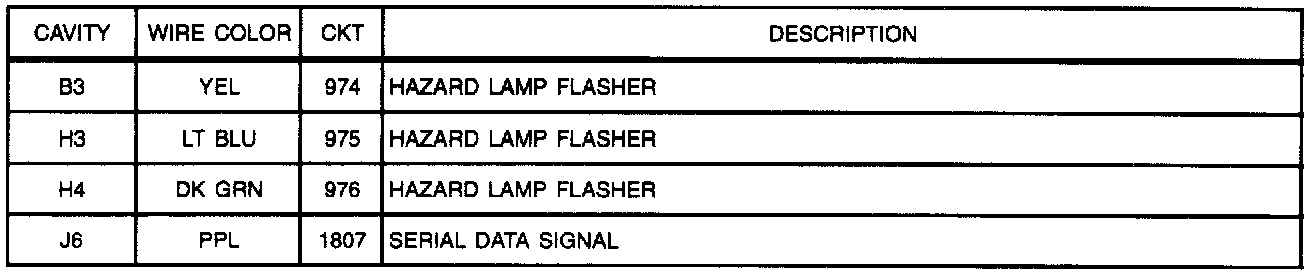

C204: Body Harness To Engine Harness (Part 1 Of 2):

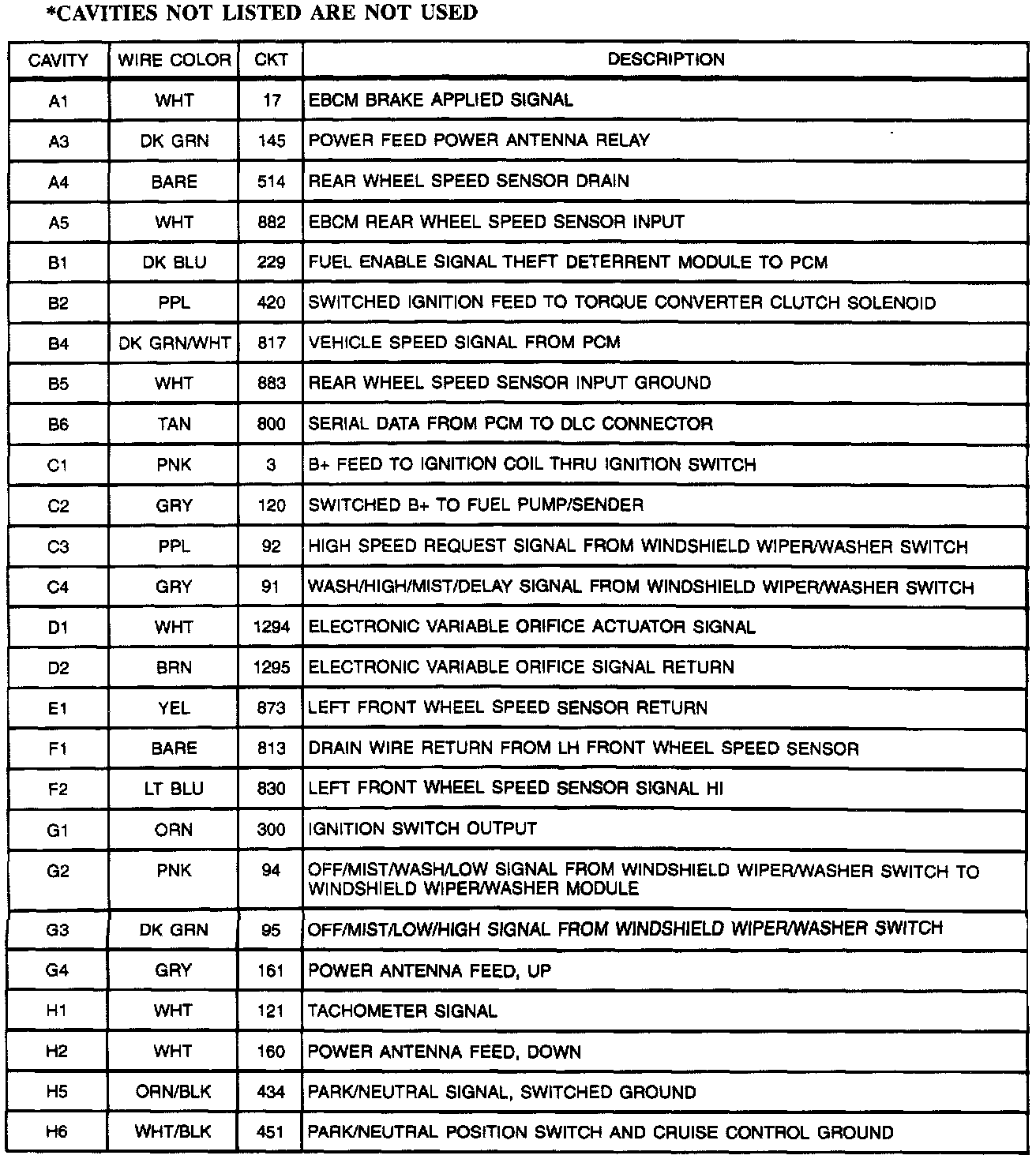

C204: Body Harness To Engine Harness (Part 2 Of 2):
