P0562

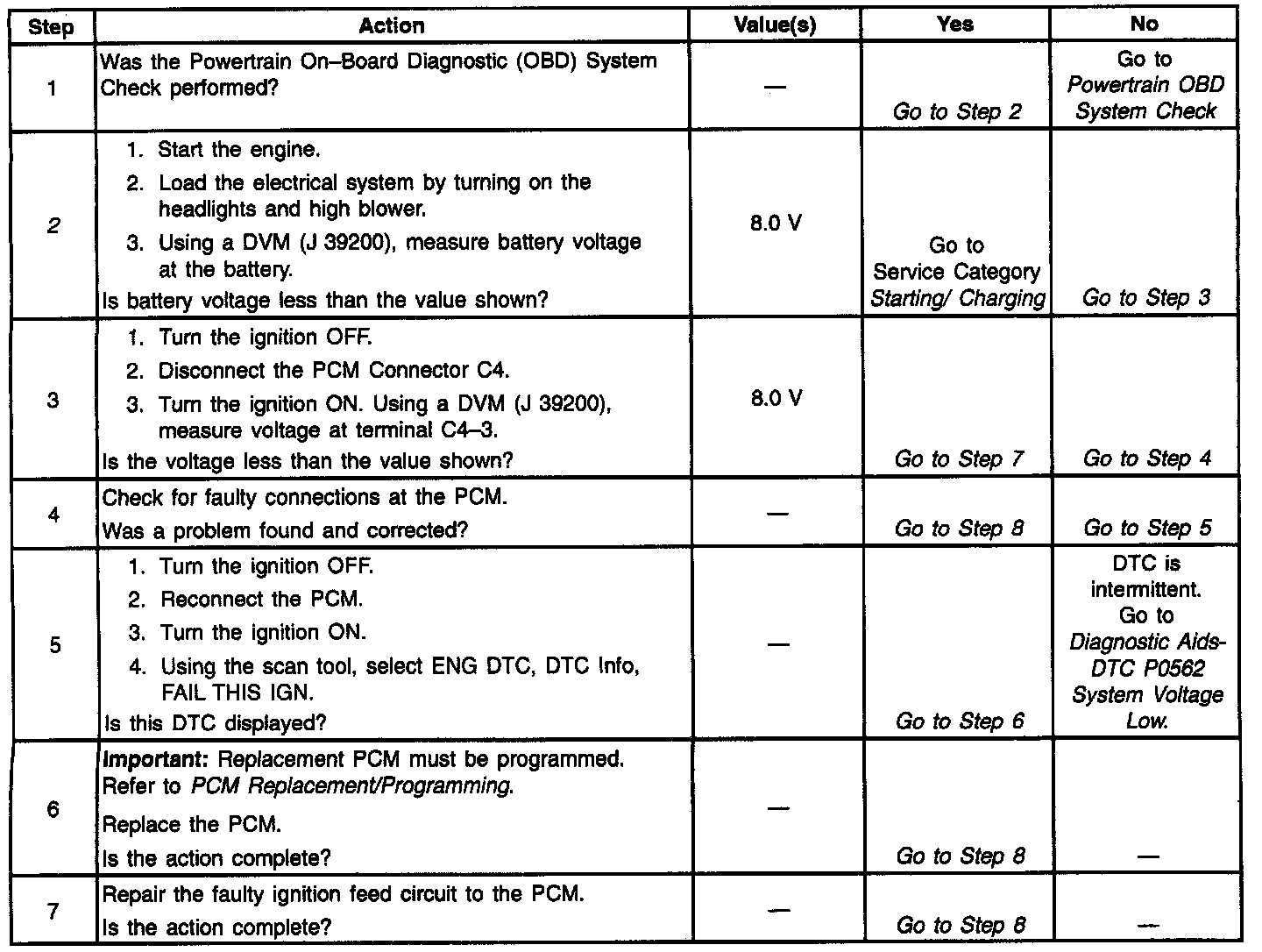

Diagnostic Chart:

Wiring Diagram:

CIRCUIT DESCRIPTION

The PCM continuously monitors system voltage. System voltage information is taken from the PCMs ignition feed circuits. Since voltages below 8.0 Volts or above 17.1 Volts, could cause improper system operation and/or component damage, the PCM operates in a default mode if a PCM Voltage DTC is set. If system voltage is low the PCM will raise the idle speed to increase generator output. It system voltage is high, the PCM disables most outputs to protect the hardware. Class 2 Serial Data is shut down when system voltage is below 9.2 Volts or above 16.0 Volts. A scan tool will not display data if system voltage is outside this range. Because of this, a DVM must be used to monitor system voltage when checking to see if the fault is currently present.

CONDITIONS FOR SETTING THE DTC

^ Engine running.

^ The PCM senses system voltage below 8.0 Volts.

^ Condition present for 6 seconds.

ACTION TAKEN WHEN THE DTC SETS

^ DTC P0562 will be stored in the PCM memory when the diagnostic runs and fails.

^ The Malfunction Indicator Lamp (MIL) will not illuminate.

^ The PCM will record operating conditions at the time the diagnostic fails. This information will be stored in Failure Records.

^ High idle speed.

^ The transmission defaults to third gear. TCC operation is inhibited.

CONDITIONS FOR CLEARING THE MIL/DTC

^ A history DTC will clear after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.

^ A last test failed (Current DTC) will clear when the diagnostic runs and does not fail.

^ PCM battery voltage is interrupted.

^ Using a scan tool.

DIAGNOSTIC AIDS

^ Extremely low voltage (below 7.5 Volts) may cause the loss of serial data and the MIL may not function. An open ignition feed circuit will cause a no start and the MIL will not illuminate. Low system voltage may cause other DTCs to set.

^ Using Freeze Frame and/or Failure Records data may aid in locating an intermittent condition. If the DTC cannot be duplicated, the information included in the Freeze Frame and/or Failure Records data can be useful in determining how many miles since the DTC set. The Fail Counter and Pass Counter can also be used to determine how many ignition cycles the diagnostic reported a pass and/or a fail. Operate vehicle within the same freeze frame conditions (RPM, load, vehicle speed, temperature etc.) that were noted. This will isolate when the DTC failed.

For intermittents, refer to Symptoms. Testing and Inspection

TEST DESCRIPTION

Number(s) below refer to step numbers on the diagnostic table.

2. Checks the Charging system under load at idle. Voltage should remain above 8.0 Volts.
