DTC 06

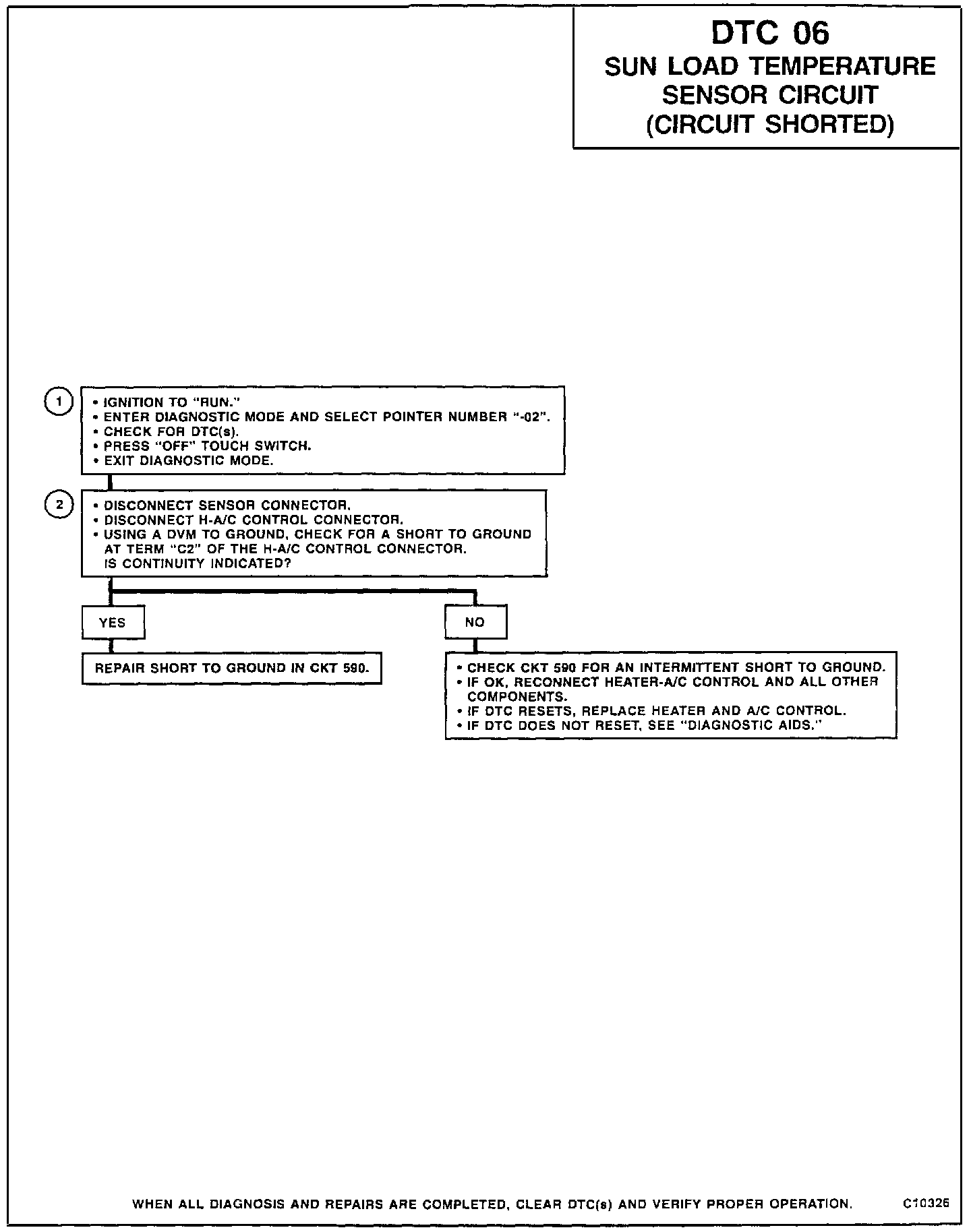

Diagnostic Chart:

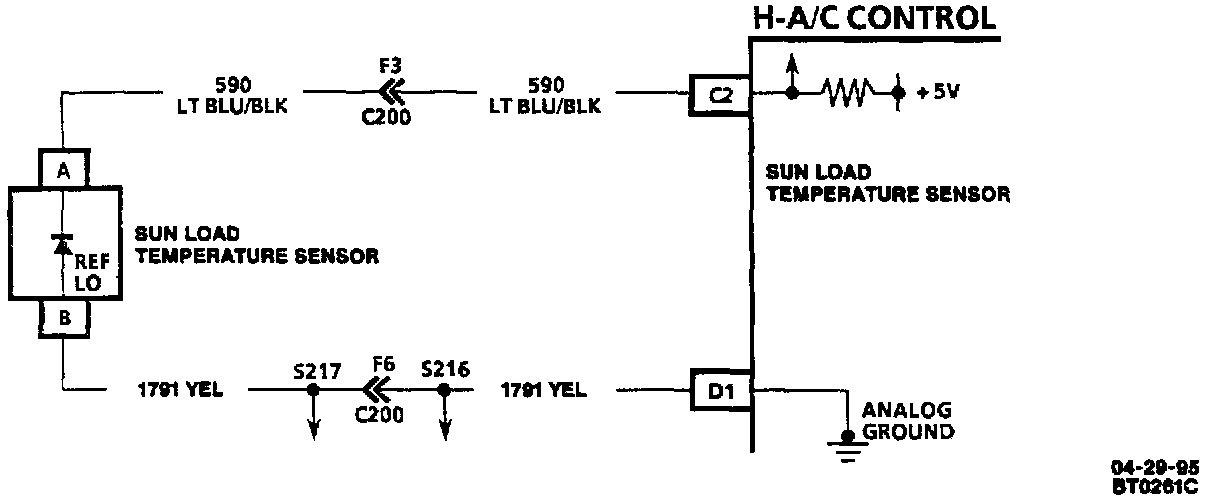

Wiring Diagram:

CIRCUIT DESCRIPTION

The sun load sensor is a reverse bias photo diode which measures sun load on the vehicle. In "AUTO" mode, the sensor is an input to the H-A/C control to control air delivery. In bright sunlight, the influence of the sensor is comparable to lowering the guide temperature setting by as much as three degrees. A current DTC 06 will he set if a ground exists in the circuit.

DTC WILL SET WHEN

With ignition in "RUN," the H-A/C control will detect this fault anytime that CKT 590 is at or near zero voltage.

ACTION TAKEN:

DTC 06 will set in the H-A/C control. While the DTC is present, the H-A/C control will use a default value of 240 (readout shows "-140") which is equivalent to no sun load. This can be seen by displaying pointer "-18" for the sun load temperature sensor.

DTC WILL CLEAR WHEN

This fault will clear as soon as the fault has been repaired, and the system will return to normal operation.

DTC CHART TEST DESCRIPTION

Number(s) below refer to circled number(s) on the diagnostic chart.

1. This test checks for HVAC DTC(s) and should clear any intermittent DTC(s).

2. This test checks for a short to ground in CKT 590.

DIAGNOSTIC AIDS

Visually inspect sensor and connector damage by removing grille.
