A. Input Shaft

^ Tools Required:
- J 5590 Press Tube
- J 22912-01 Split Plate
- J 23907 Slide Hammer
- J 28537-17 Race Installer
- J 39594 Race Remover
- Hydraulic Press






DISASSEMBLE

Important
- Do not replace tapered bearings (9) or race (11) unless inspection shows bearing or race damage.

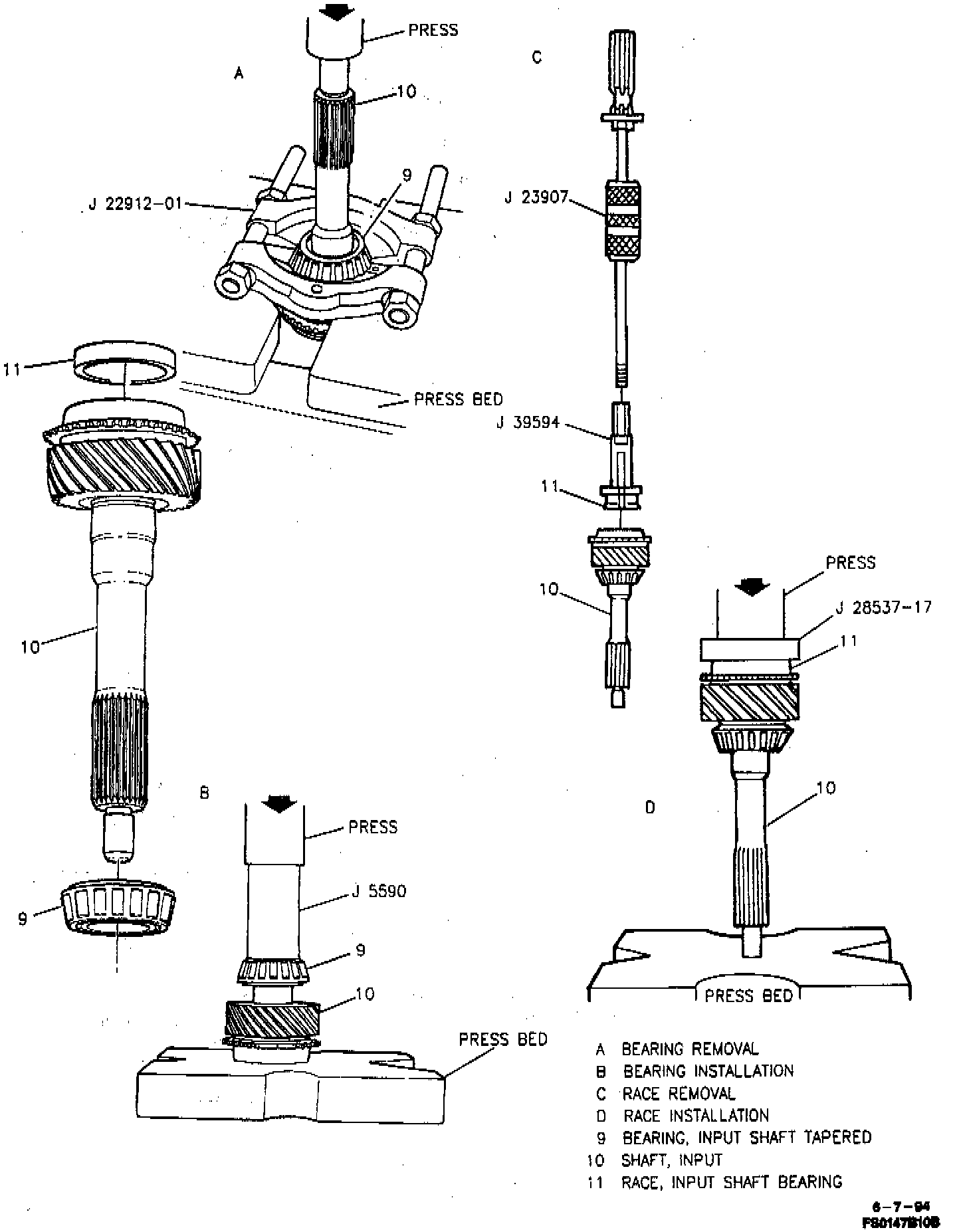

1. Input shaft tapered bearing (9) from input shaft (10) using J 22912-01 and hydraulic press.
2. Input shaft bearing race (11) using J 23907 and J 39594.

Clean
- Input shaft components with solvent and dry with compressed air.

Inspect
- Input shaft components.
- Shaft (10) and spline for excessive wear or cracks. Replace if these conditions exist.
- Gear teeth for excessive wear, pitting, scoring, spelling or fractures.
- Bearing (9) for roughness of rotation, burred or pitted conditions. Replace if these conditions exist.

NOTICE: If scuffed, nicked, burred or scoring conditions cannot be reconditioned by hand with a soft stone or crocus cloth, replace the component.

NOTICE: When replacing bearing (9) also replace bearing race (8).

NOTICE: When replacing bearing race (11) also replace bearing (22).

ASSEMBLE
1. New bearing race (11) to input shaft (10) using J 28537-17 and hydraulic press.
2. New input shaft tapered bearing (9) to input shaft (10) using J 5590 and hydraulic press.
