I. Transmission Case
REMOVE OR DISCONNECT1. Computer aided shin solenoid (181).
2. Cover plate bolts (47).
3. Cover plate (48).
4. Shift detent assembly (56).
5. Front offset lever roll pin (50).
6. 8 of the 10 adapter plate to transmission case bolts (178).
7. Rotate transmission into vertical position.
8. Last 2 adapter plate to transmission case bolts (178).

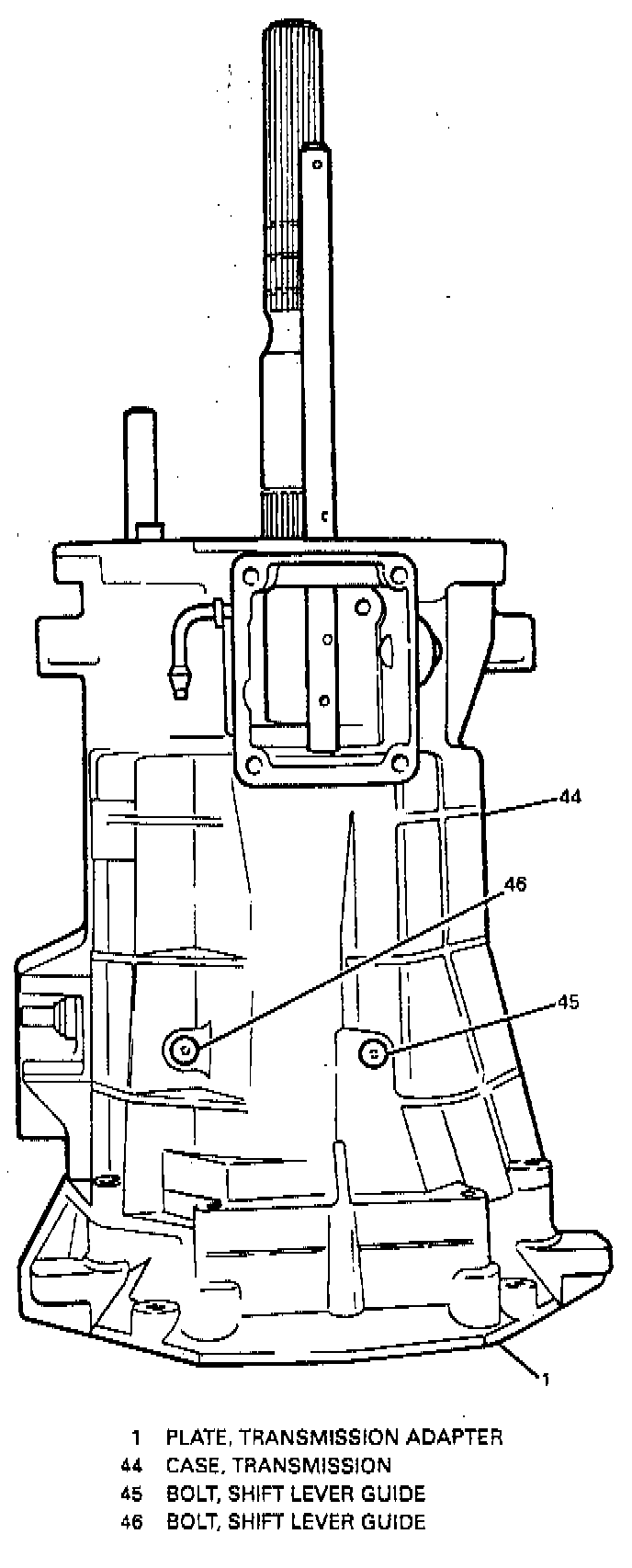

9. Shift lever guide bolts (45 and 46).
10. Magnets (57).
11. Transmission case (44) and front offset lever (51).
- Slide transmission case (44) up off of gear clusters and shift rail components.
- Hold offset lever (51) against guide plate (55) to prevent release of detent ball (53) and spring (52).
- Note that the loose detent ball (53) and spring (52) will come out.
Clean
- Shift lever guide bolt threads (45 and 46).
- Case (44) and magnets (57) with solvent and dry with compressed air.
