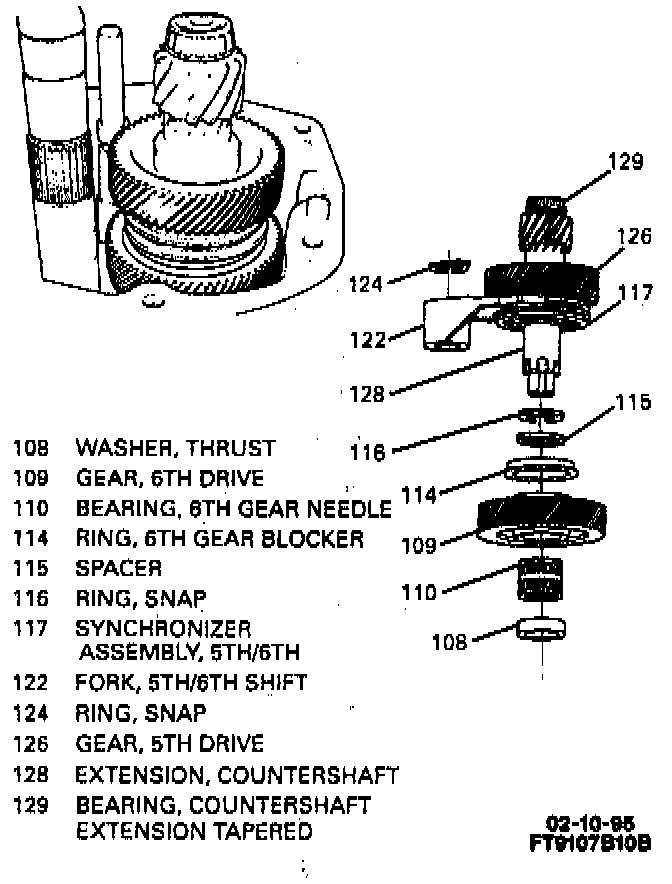

H. Countershaft Extension Assembly
REMOVE OR DISCONNECT
1. 5th/6th shift fork snap ring (124).
2. Rotate transmission in horizontal position, guide plate up.
3. Countershaft extension assembly with 5th/6th shift fork (122).
REMOVE OR DISCONNECT
1. 5th/6th shift fork snap ring (124).
2. Rotate transmission in horizontal position, guide plate up.
3. Countershaft extension assembly with 5th/6th shift fork (122).
