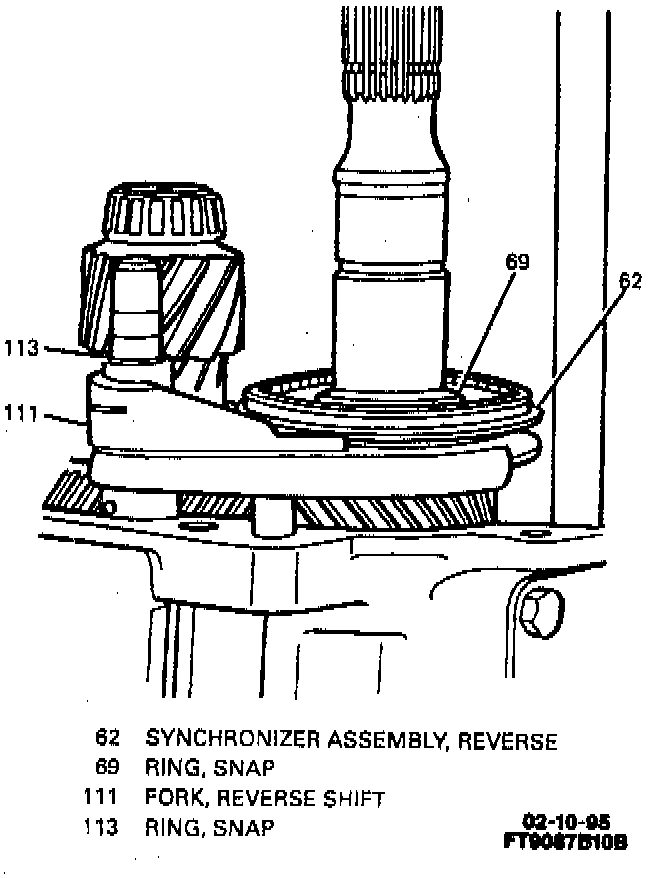

F. Reverse Shift Fork
REMOVE OR DISCONNECT
1. Reverse synchronizer snap ring (69).
2. Reverse shift fork snap ring (113) and discard.
3. Reverse shift fork (111), synchronizer (62) and thrust washer (68) at the same time.
REMOVE OR DISCONNECT
1. Reverse synchronizer snap ring (69).
2. Reverse shift fork snap ring (113) and discard.
3. Reverse shift fork (111), synchronizer (62) and thrust washer (68) at the same time.
