B. Shifter

^ Tools Required:
- J 3289-20 Holding Fixture Bench Mount
- J 39430 Transmission Support Fixture

REMOVE OR DISCONNECT
1. Vent tube (161).
2. Clutch housing bolts (163).
3. Clutch housing (162).
4. Clutch fork bolt (166).
5. Clutch fork (164) and T-handle (165).

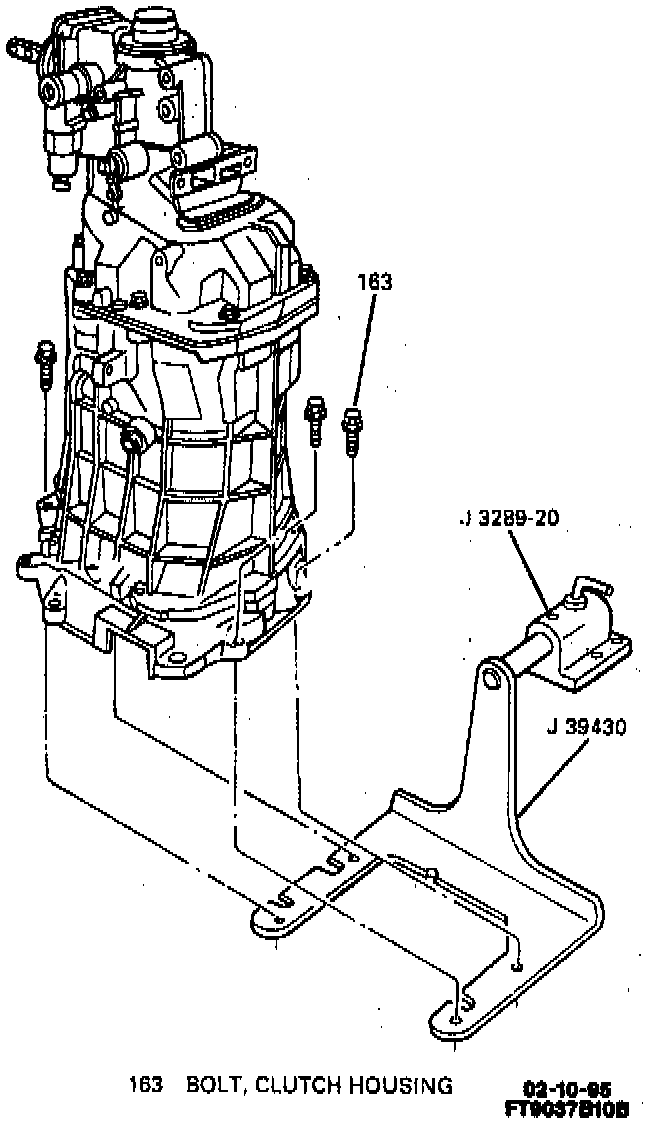

6. Install transmission to J 39430 and J 3289-20
- Use bolts (163) to secure transmission to J 39430.
7. Rotate transmission in horizontal position, shifter up.
8. Plug (101) and drain transmission fluid.
9. Put transmission in 3rd/4th neutral position.

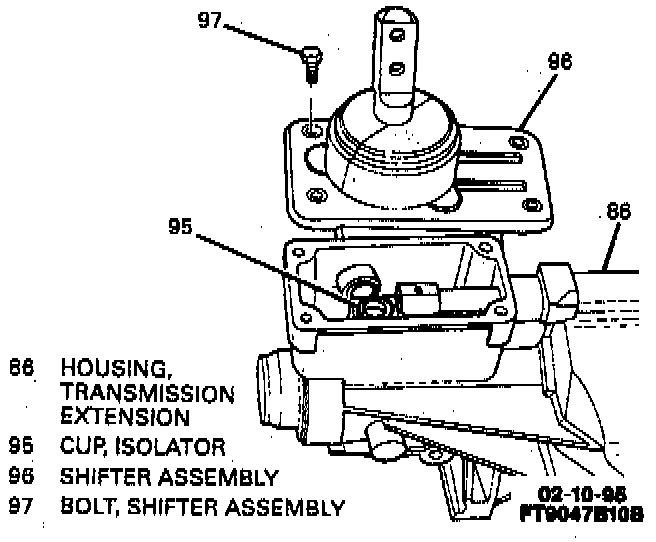

10. Shifter bolts (97).
11. Shifter (96).

Inspect
- Isolator cup (95) for wear. Replace rear offset shift lever (93), if wear is excessive or isolator cup (95) is loose.
