H. Speedometer Gear

^ Tools Required:
- J 39441 Gear Installer
- J 39441-2 Gear Installer Bolts

INSTALL OR CONNECT
1. Speedometer gear snap ring (80).

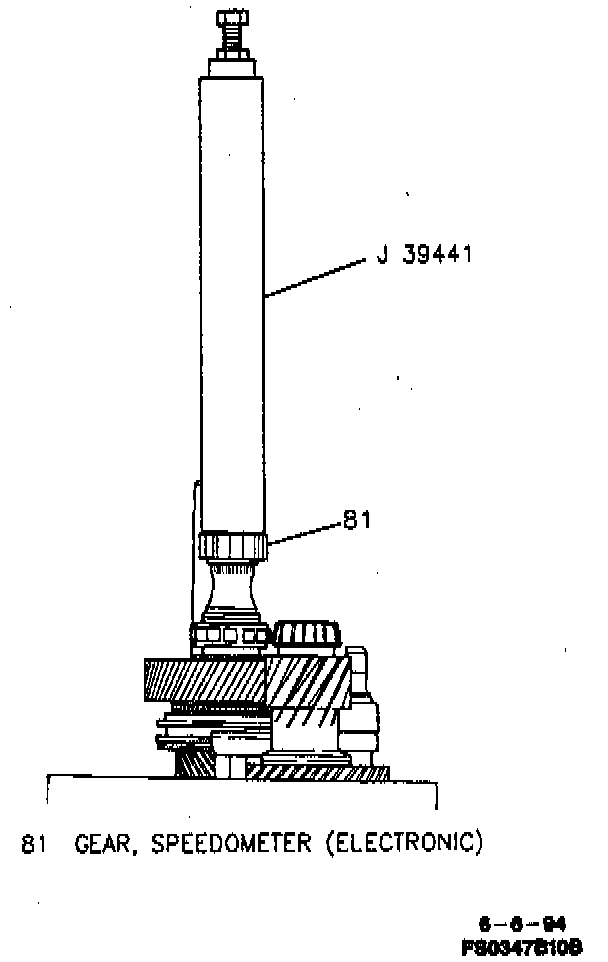

2. Speedometer gear (81) using J 39441 and J 39441-2.
3. Speedometer gear snap ring (82).
4. Sealing ring.
