- Power Distribution Schematics
- Power Distribution Schematics

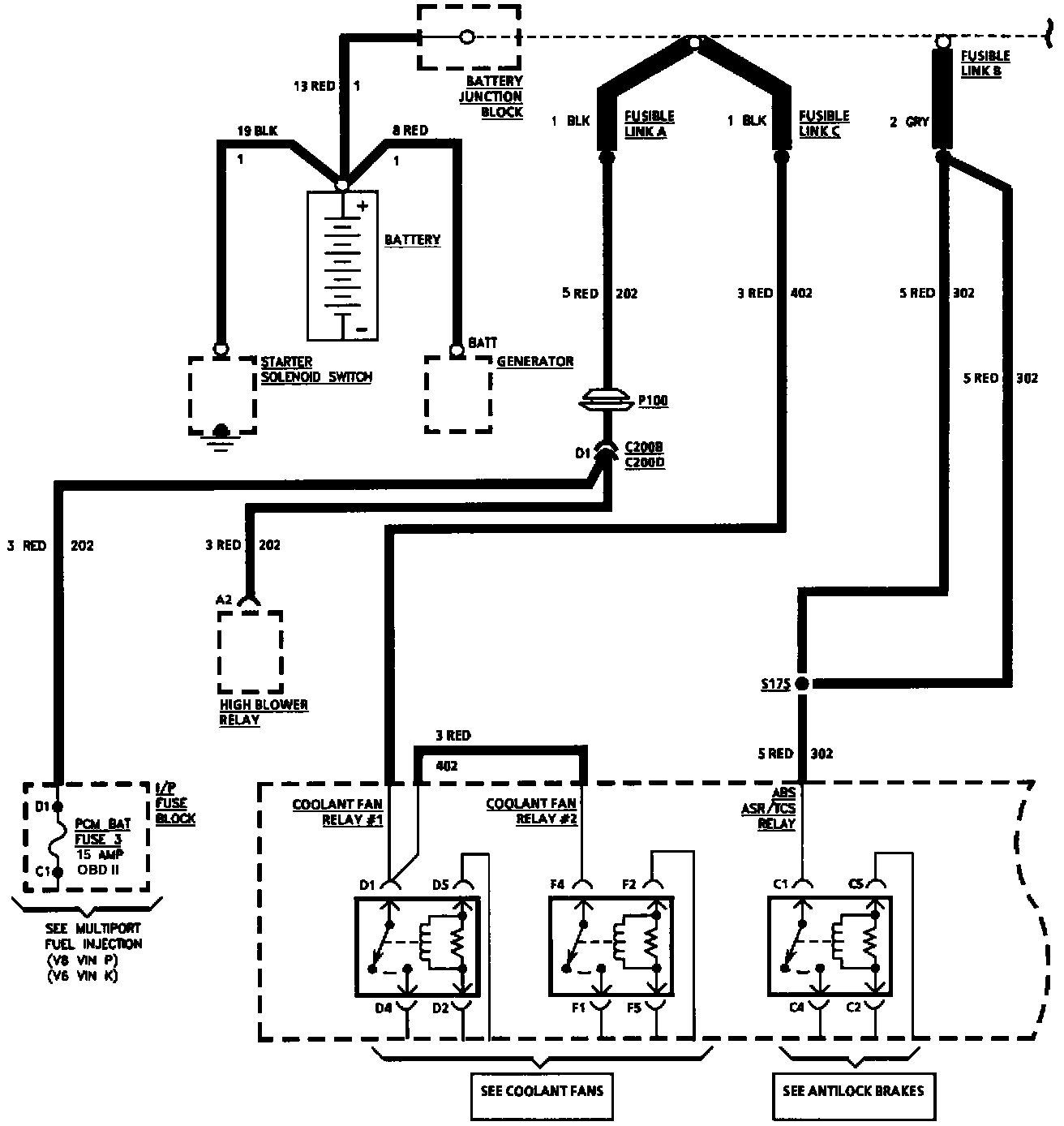

Power Distribution (Part 1 Of 2):

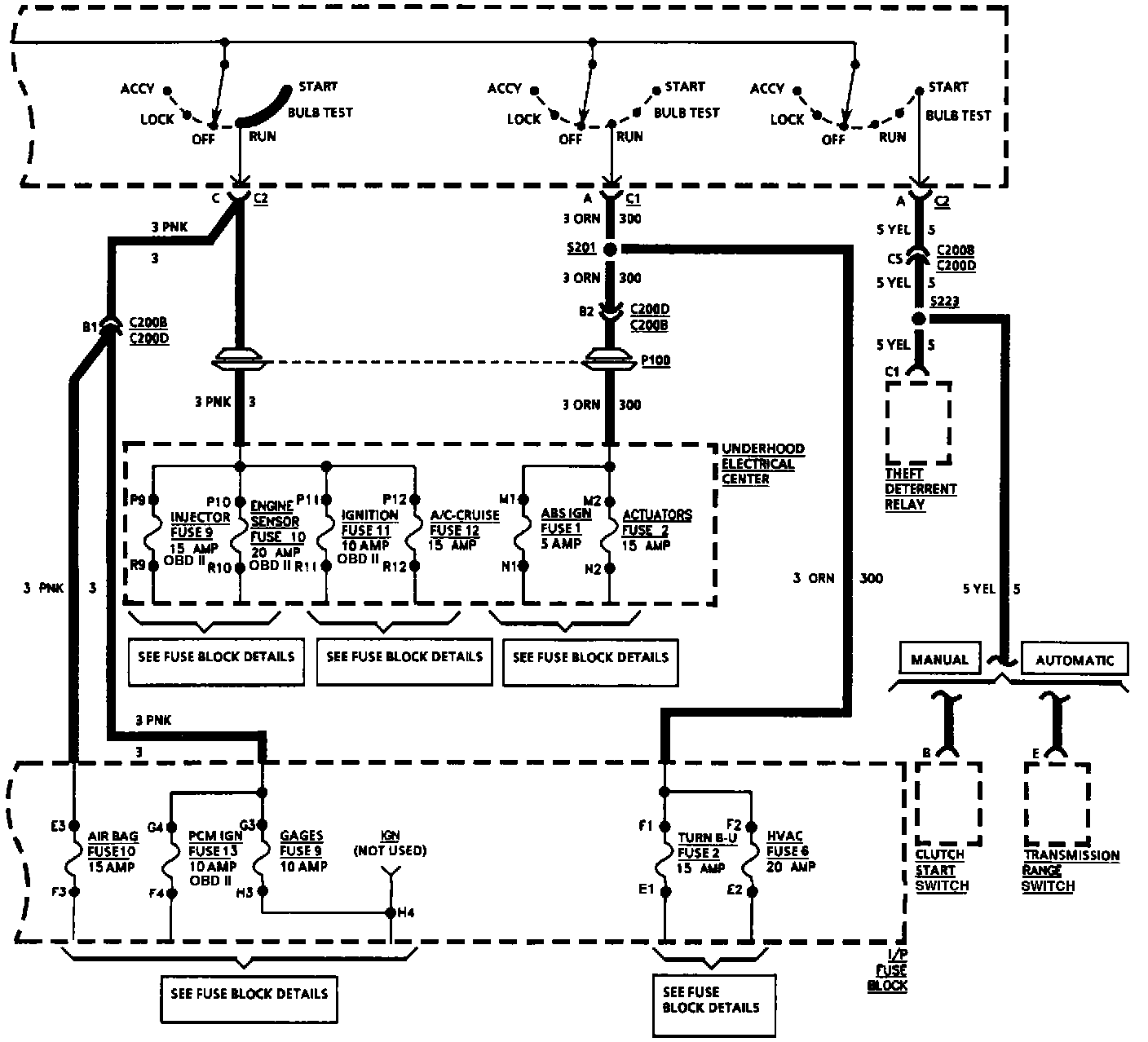

Power Distribution (Part 2 Of 2):

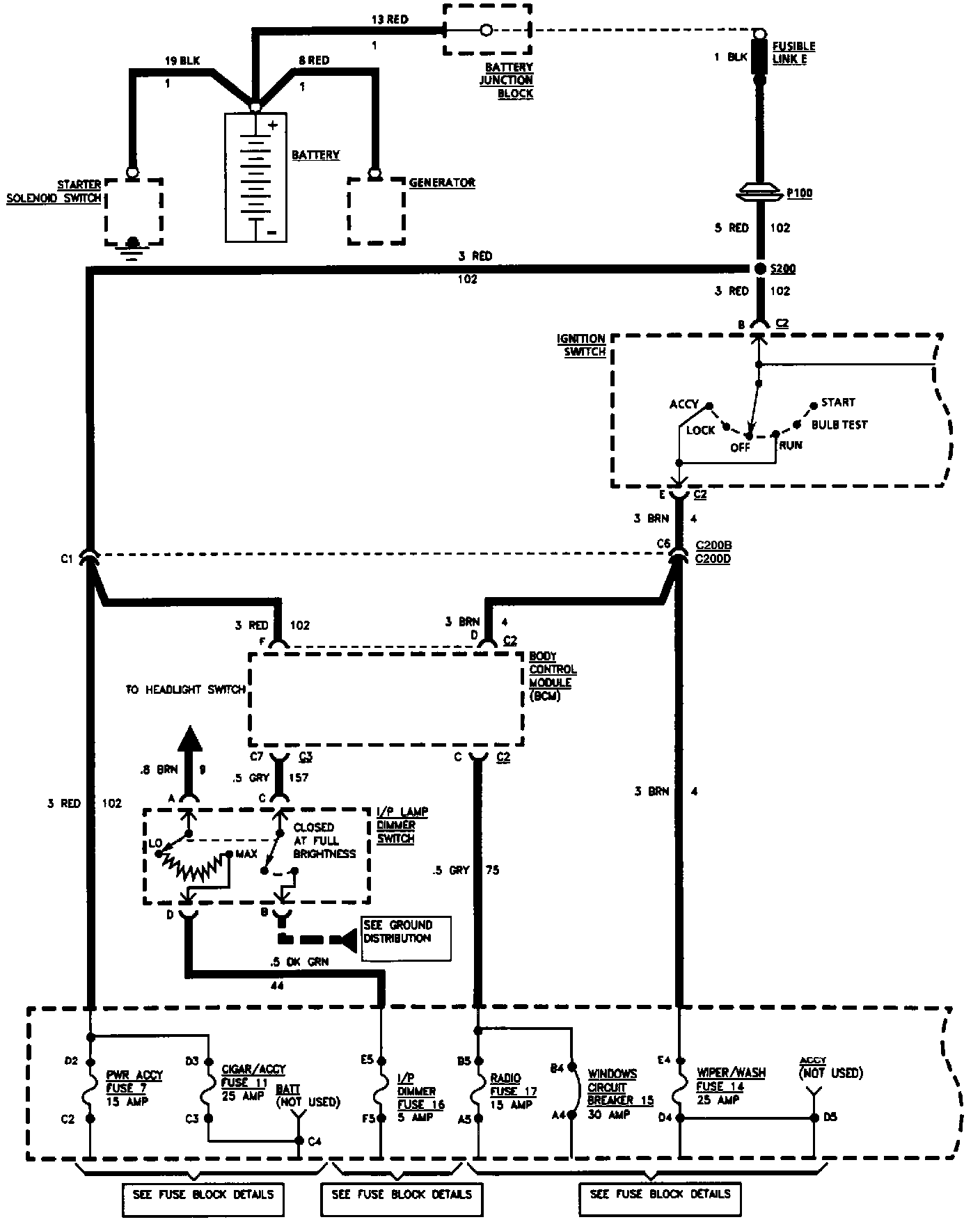

Power Distribution (Part 1 Of 2):

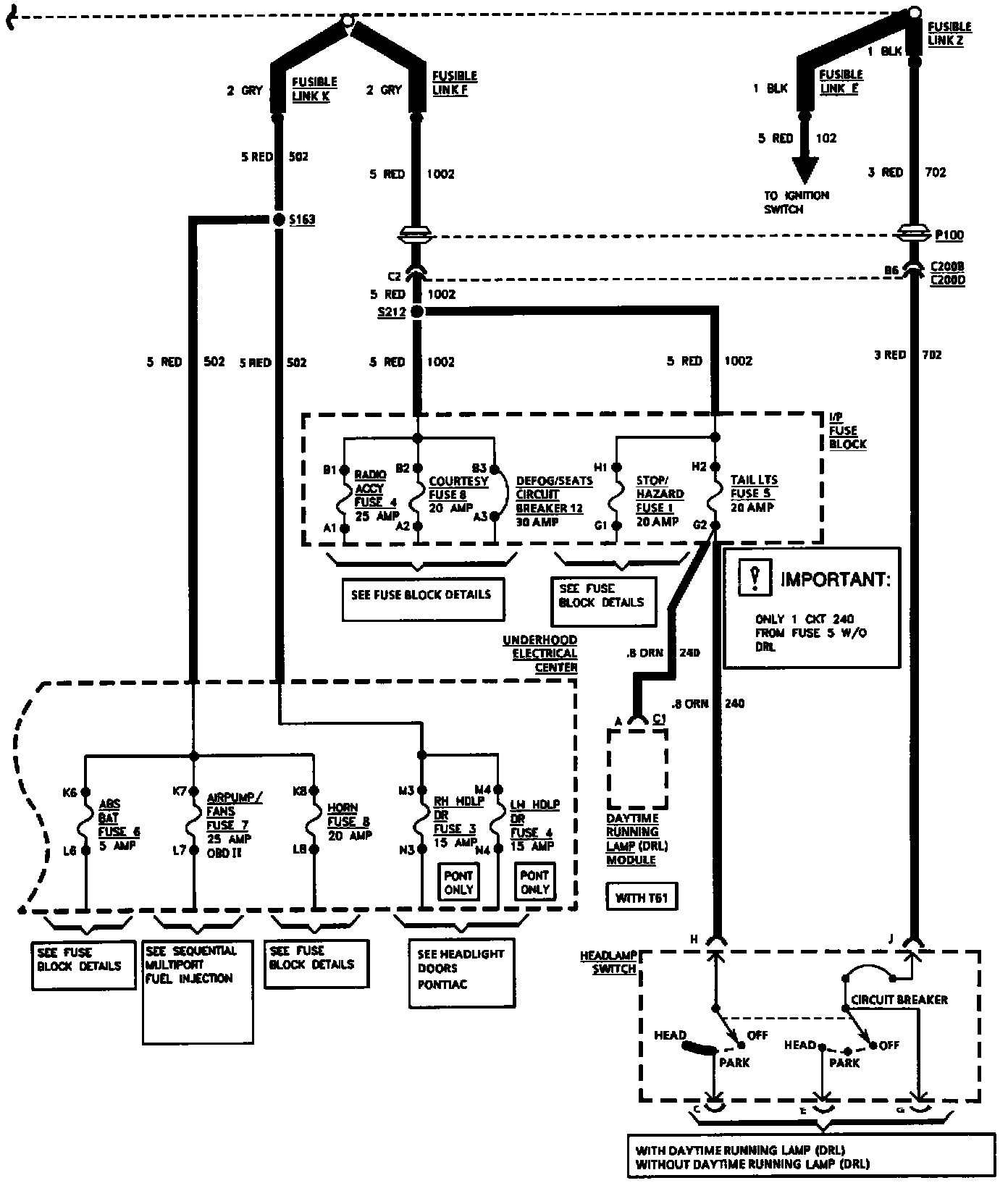

Power Distribution (Part 2 Of 2):
