Engine Harness to I/P Harness
Engine Harness to I/P Harness

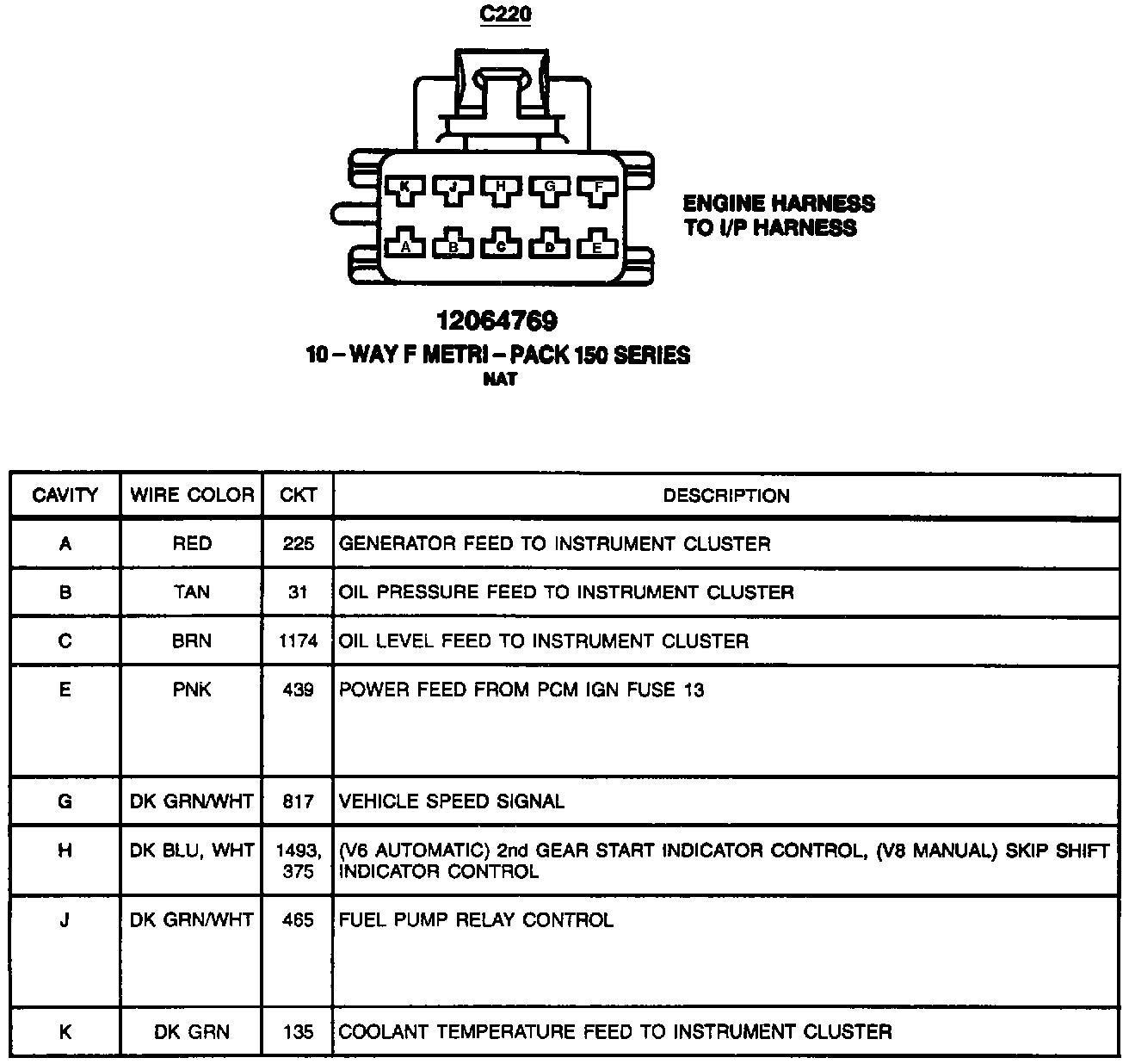

C220: Engine Harness To I/P Harness:

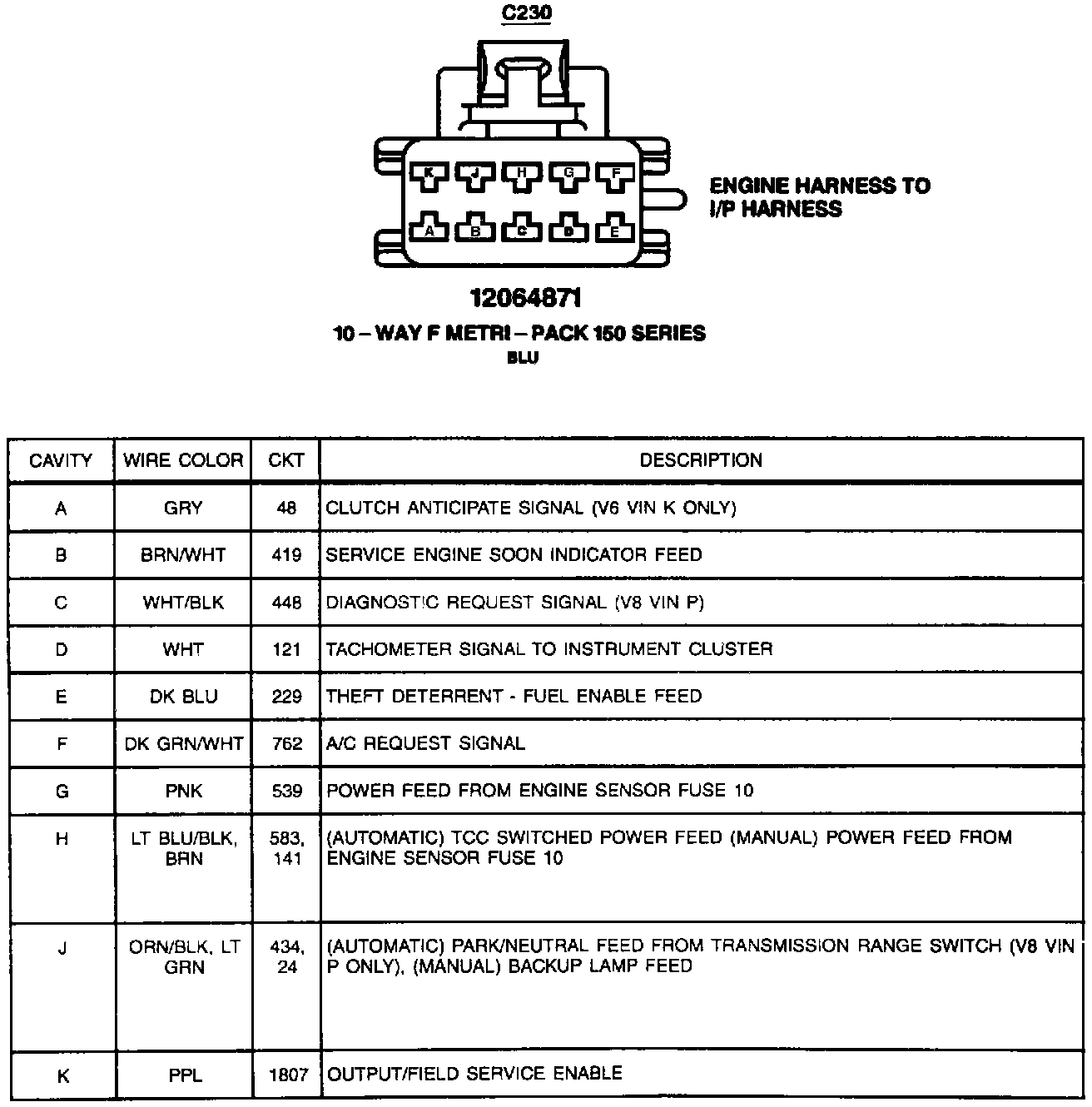

C230: Engine Harness To I/P Harness:

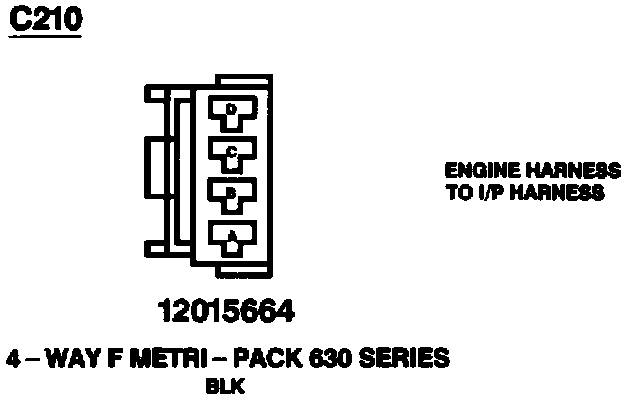

C210: Engine Harness To I/P Harness:
