ABS System Electrical Connectors

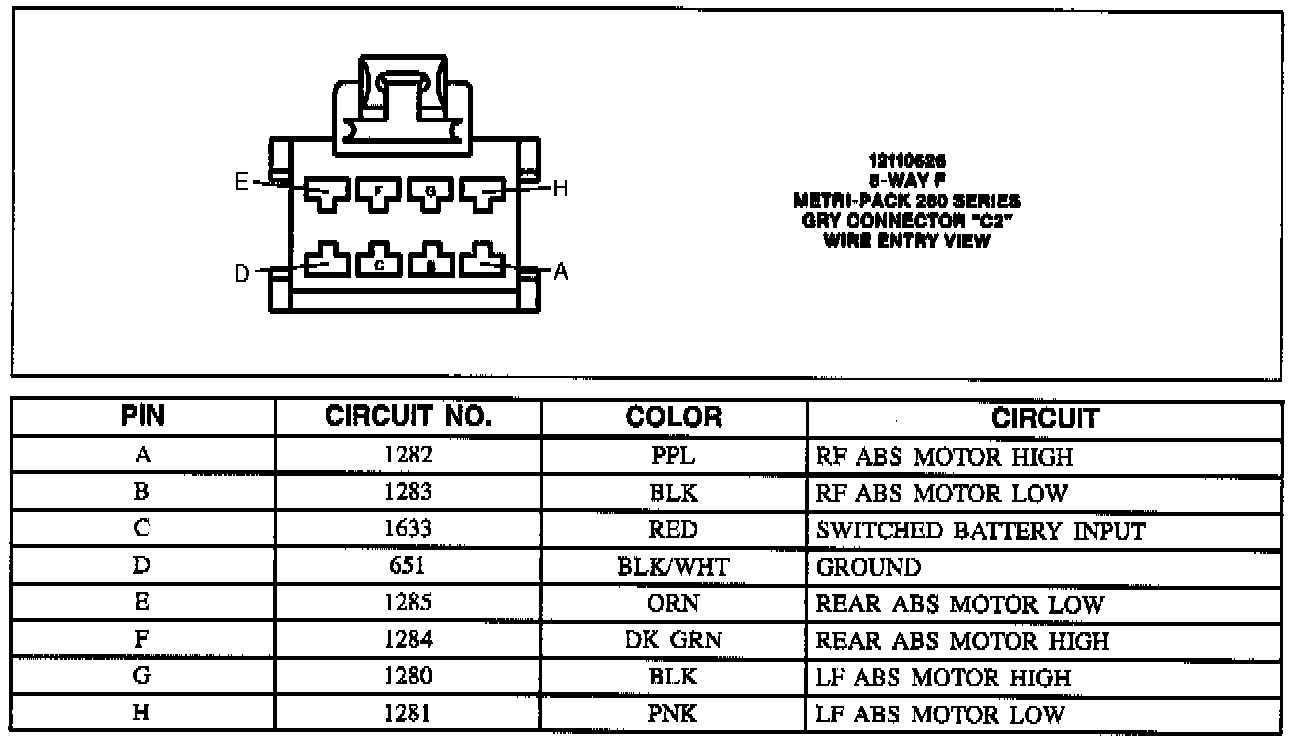

Fig. 37 EBCM Connector Face Views.:

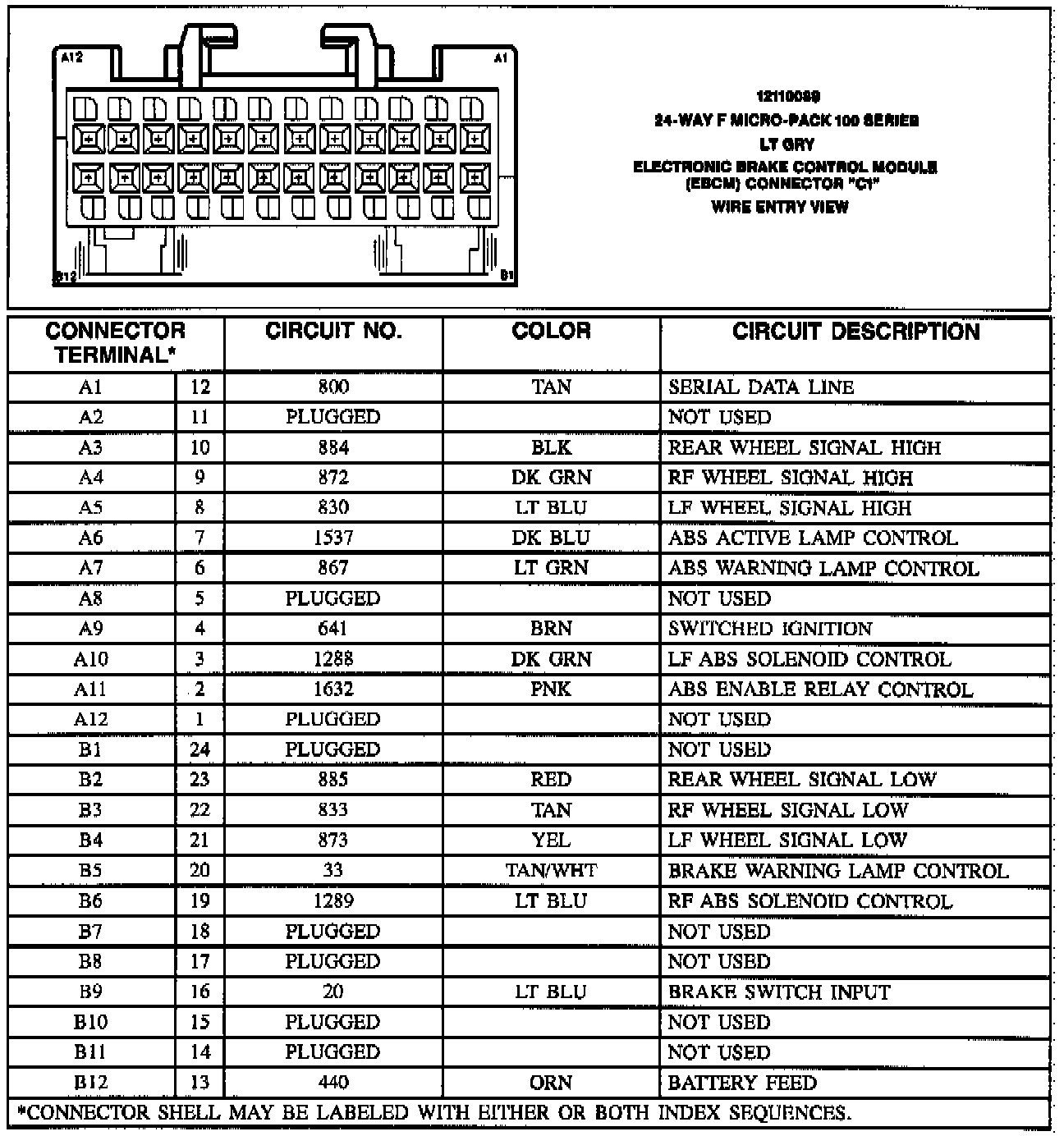

Fig. 38 EBCM Connector Face Views.:

When performing diagnostic procedures refer to Fig. 37 and Fig. 38 for EBCM connector terminal identification.
