Home
>>
Chevrolet
>>
1995
>>
Cavalier/Z24 L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
C1
>>
Without Rear Defogger
Without Rear Defogger

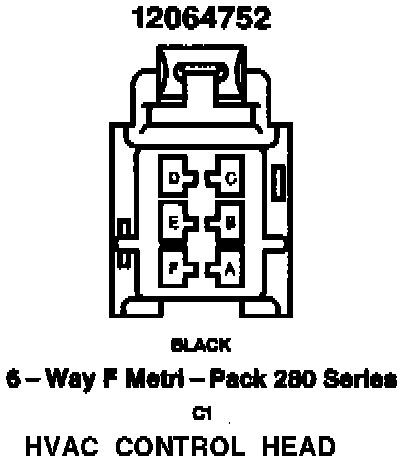

HVAC Control Head C1:

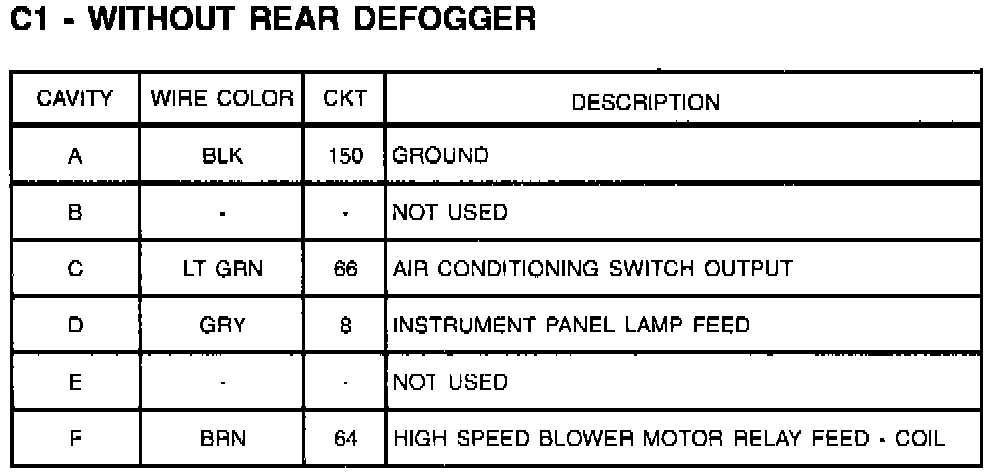

HVAC Control Head C1 (Without Rear Defogger):
