Knock Sensor
>>
Locations
>>
Assembly View
Assembly View

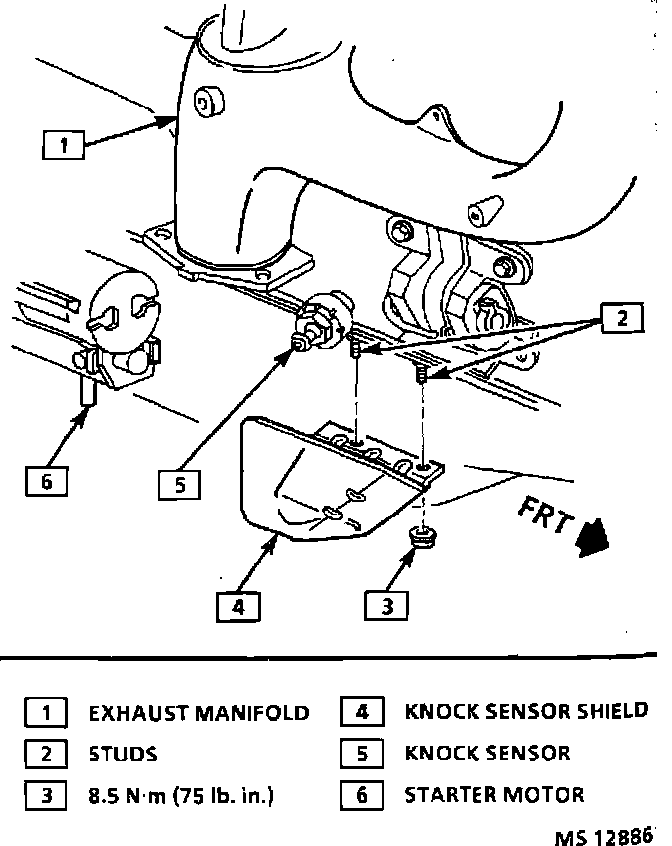

Left Knock Sensor Location:

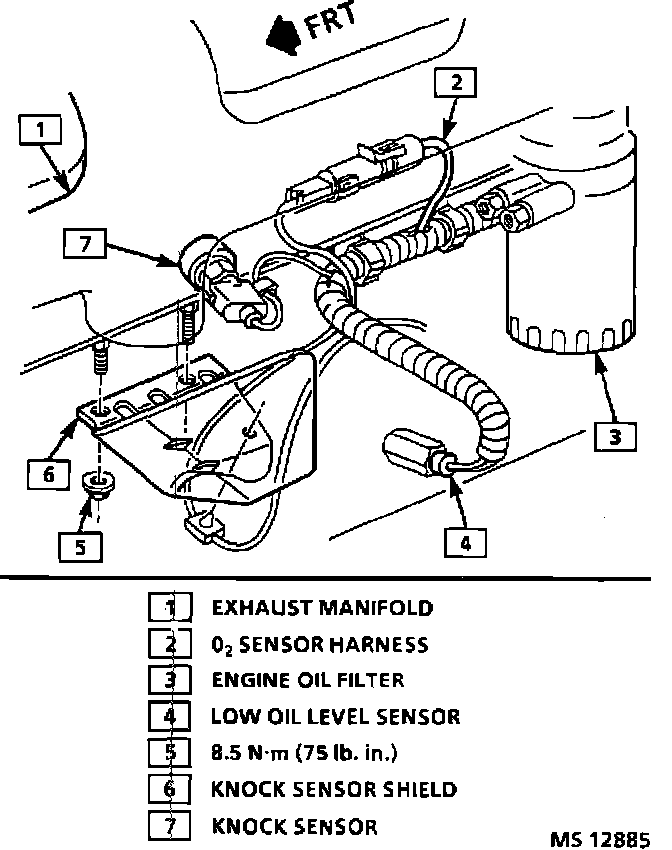

Right Knock Sensor Location:
The knock sensors are located on the sides of the engine block.
