Keyless Entry
Keyless Entry

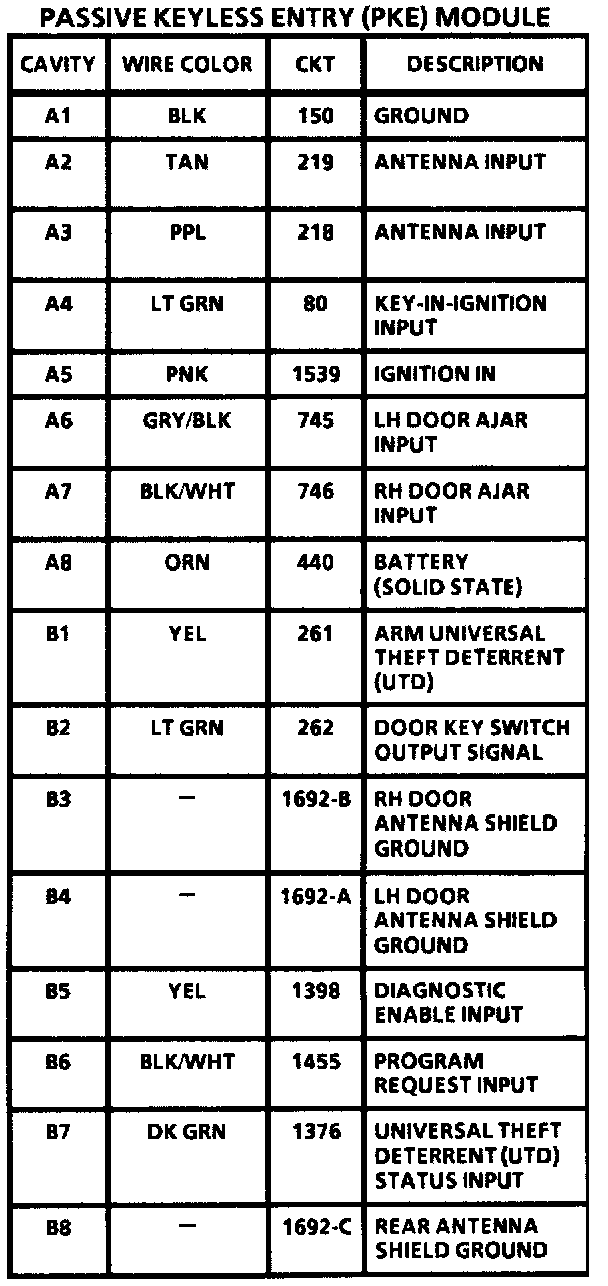

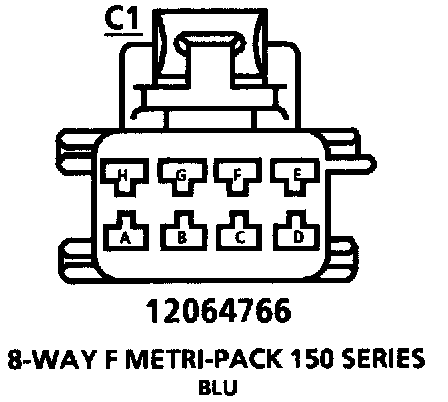

Passive Keyless Entry: C1:

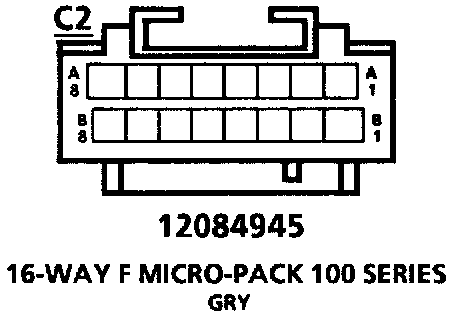

Passive Keyless Entry: C2:

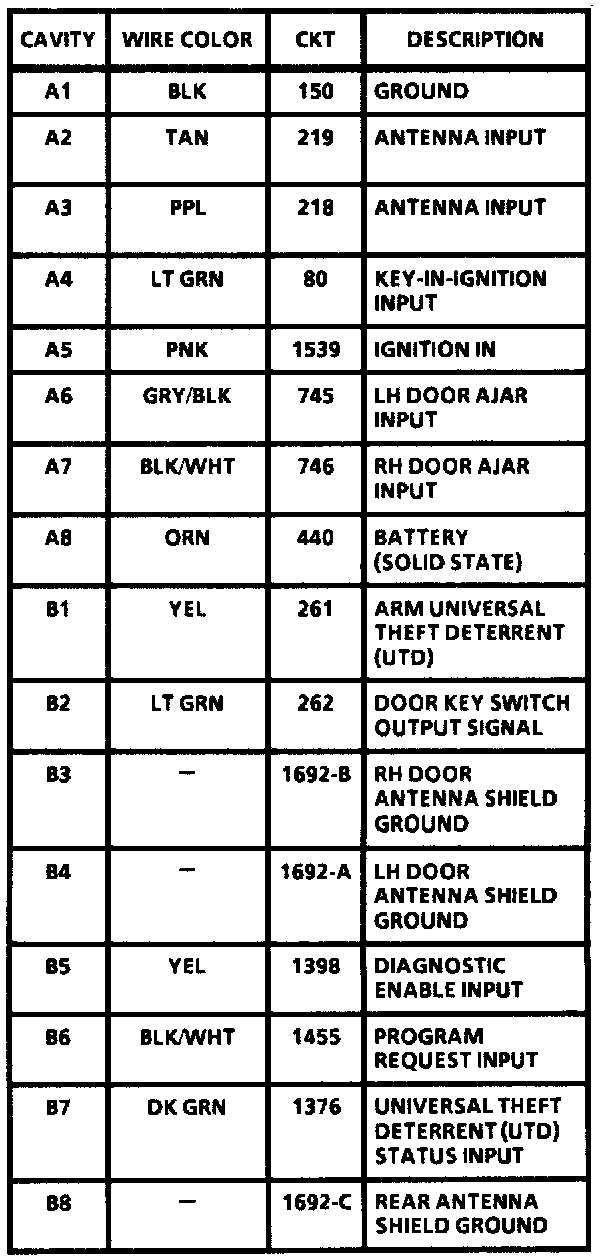

Passive Keyless Entry: C1:
Passive Keyless Entry: C2:
