Data Link Connector: Diagrams

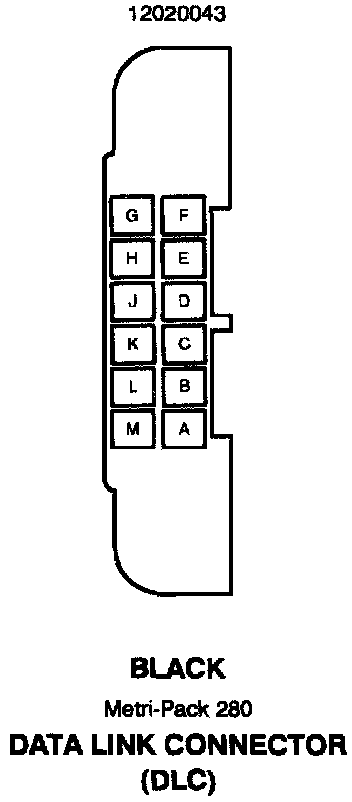

Harness Connector Faces: Data Link Connector (DLC):

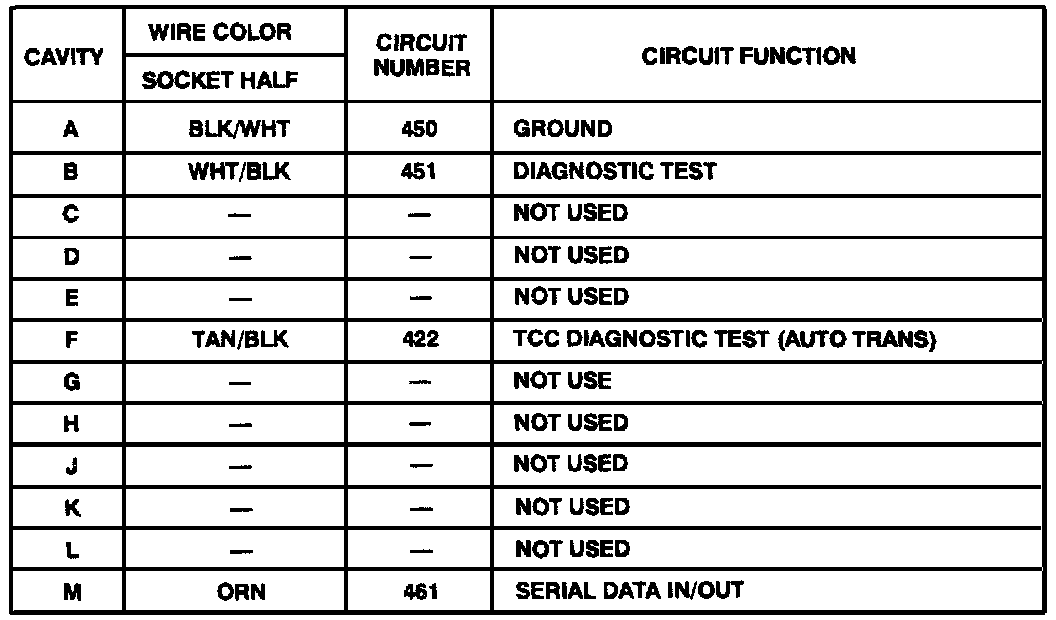

Harness Connector Faces: Data Link Connector (Description):
