Home
>>
Chevrolet
>>
1994
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Information Bus (Data Line)
Information Bus (Data Line)

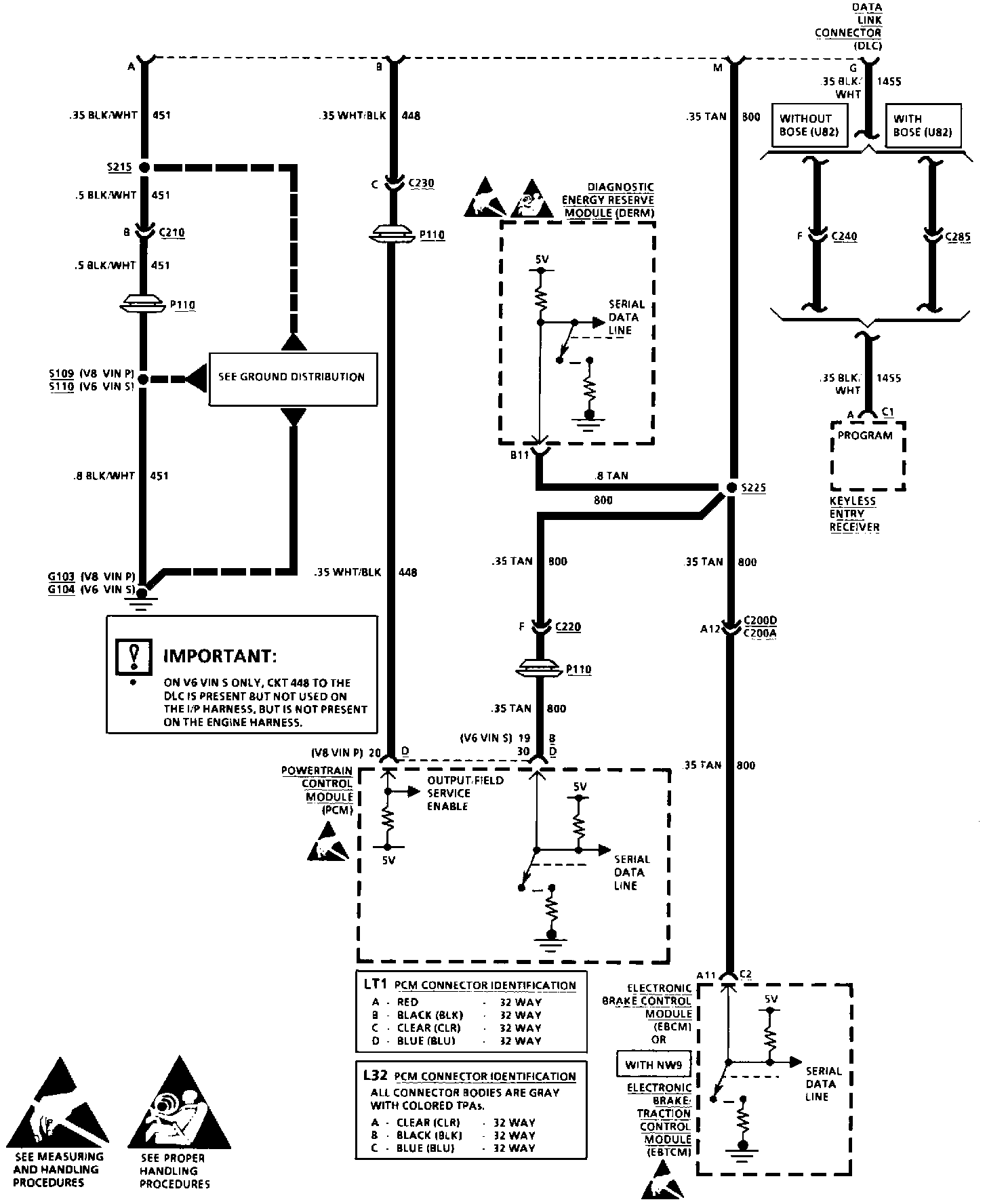

Serial Data Circuit (CKT 800):
