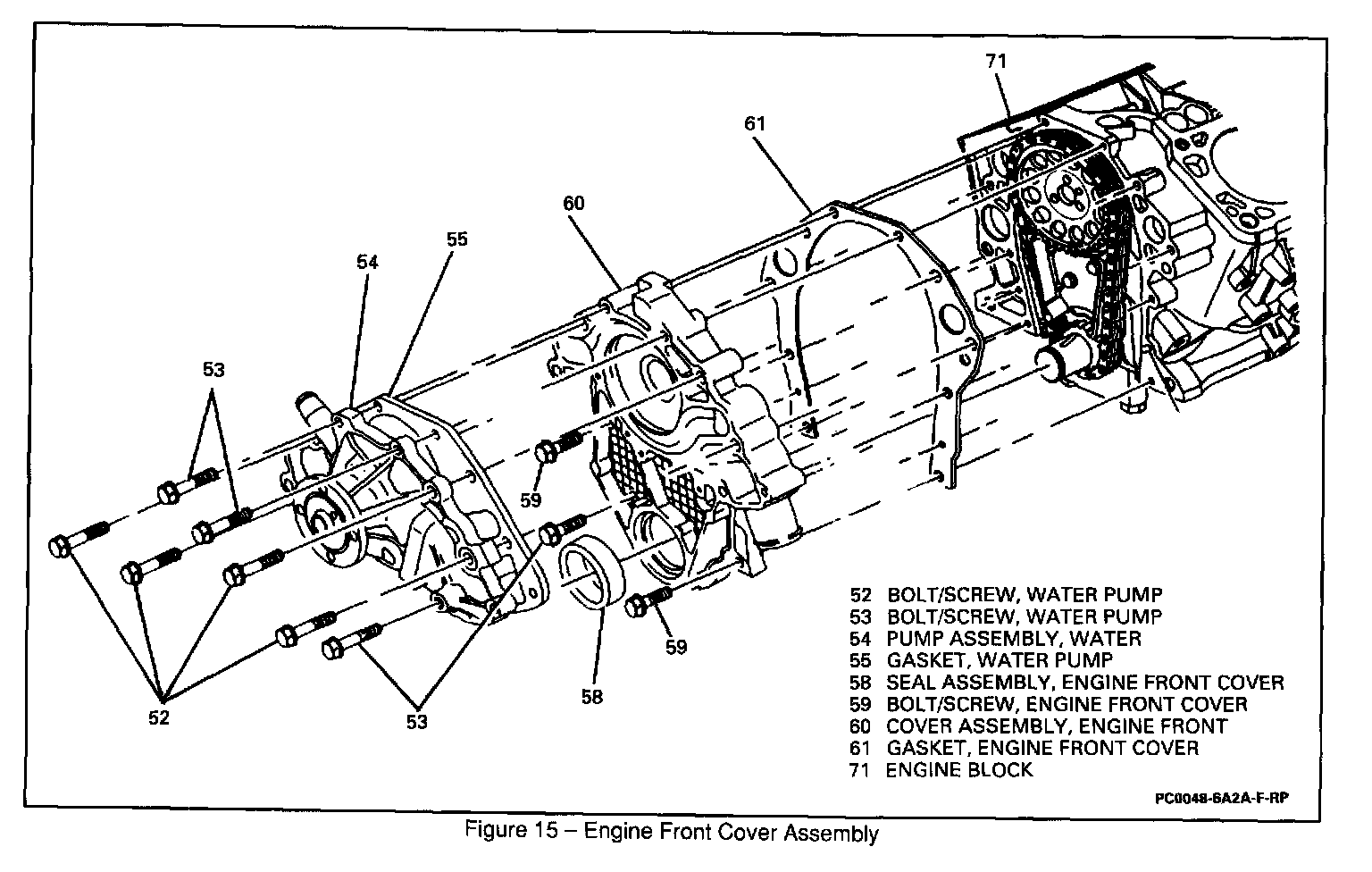

Water Pump and Engine Front Cover Assembly
Water Pump and Engine Front Cover Assembly
WATER PUMP AND ENGINE FRONT COVER ASSEMBLY
