Camaro V6-204 3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Modules
>>
Ignition Control Module (ICM)
Ignition Control Module (ICM)

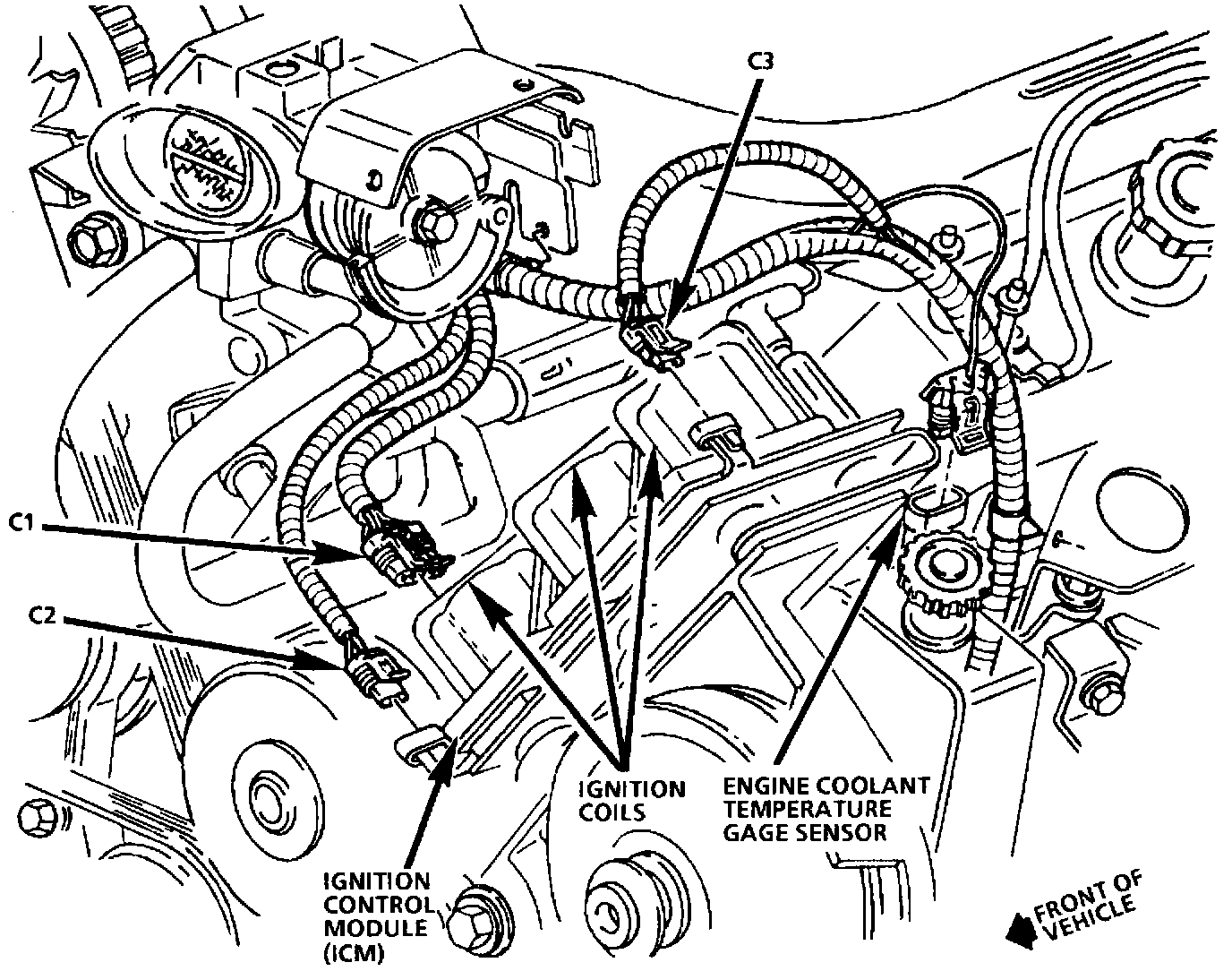

Top Front LH Side Of Engine:
