Fuse Block Details
Fuse Block Details
RS Electrical Center:

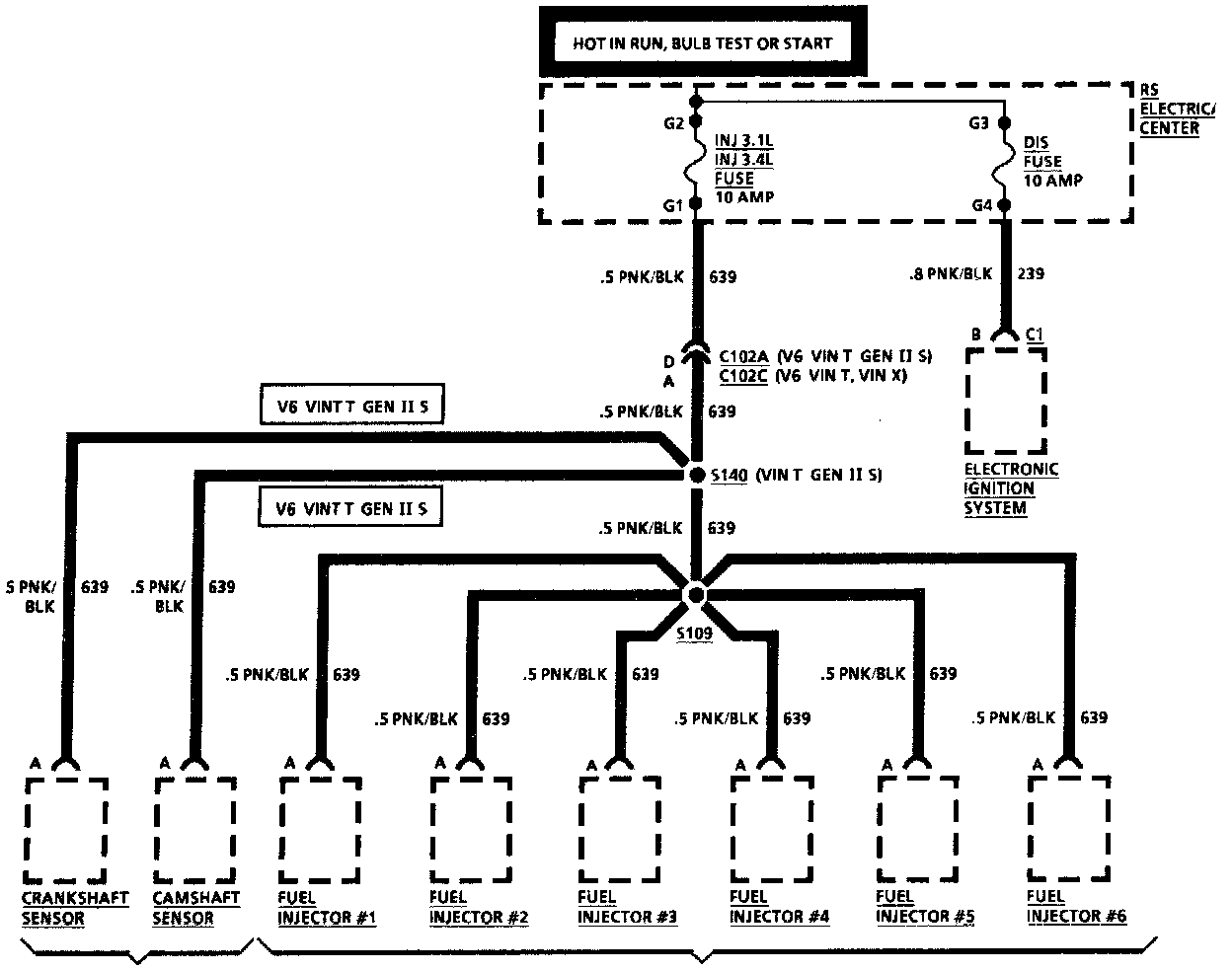

V6 Vin T, V6 Vin X, Vin T GEN 11S:

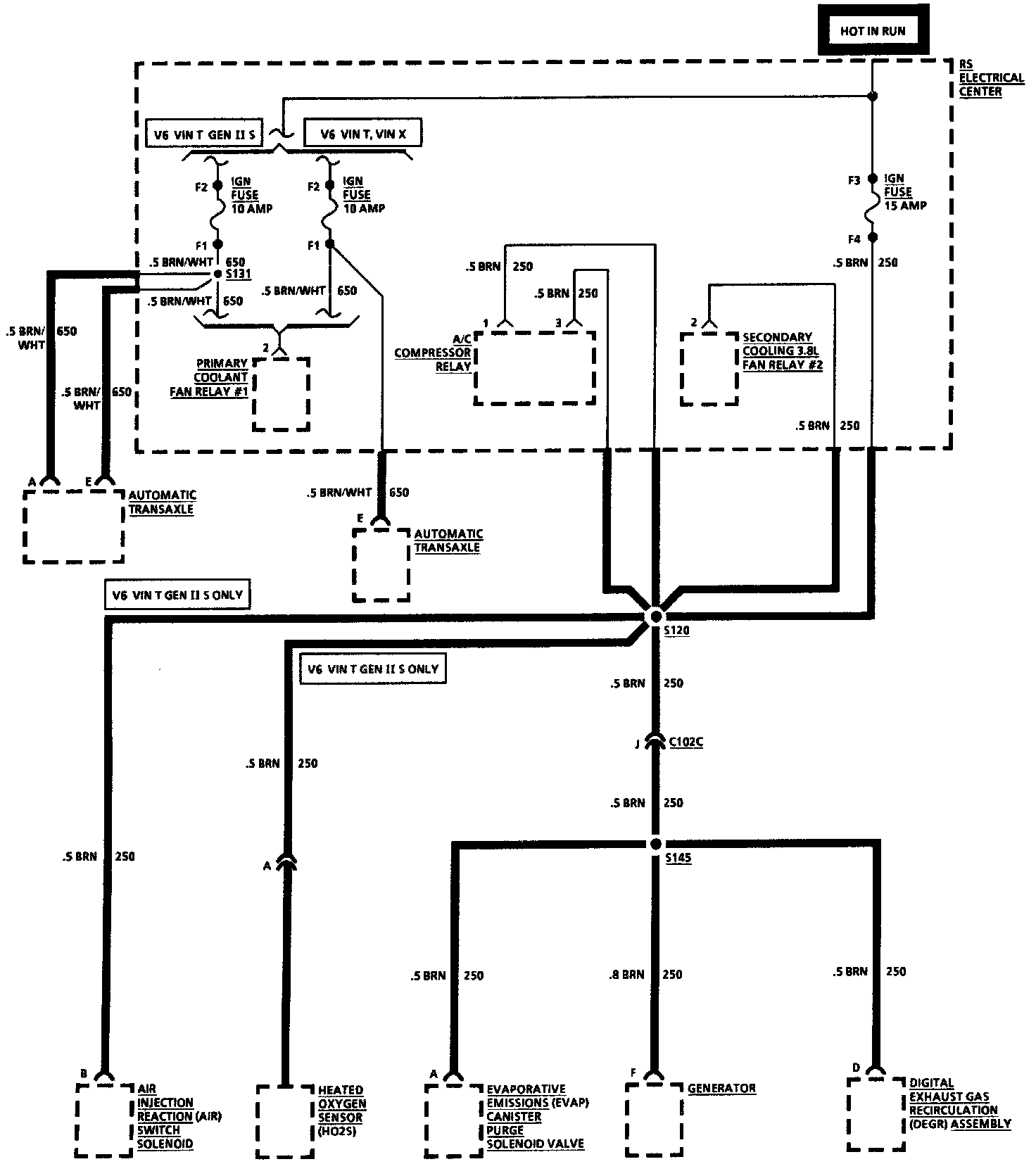

Fuse Block Details, V6 Vin T, Vin T GEN II S:
