Chevrolet
>>
1993
>>
Lumina V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

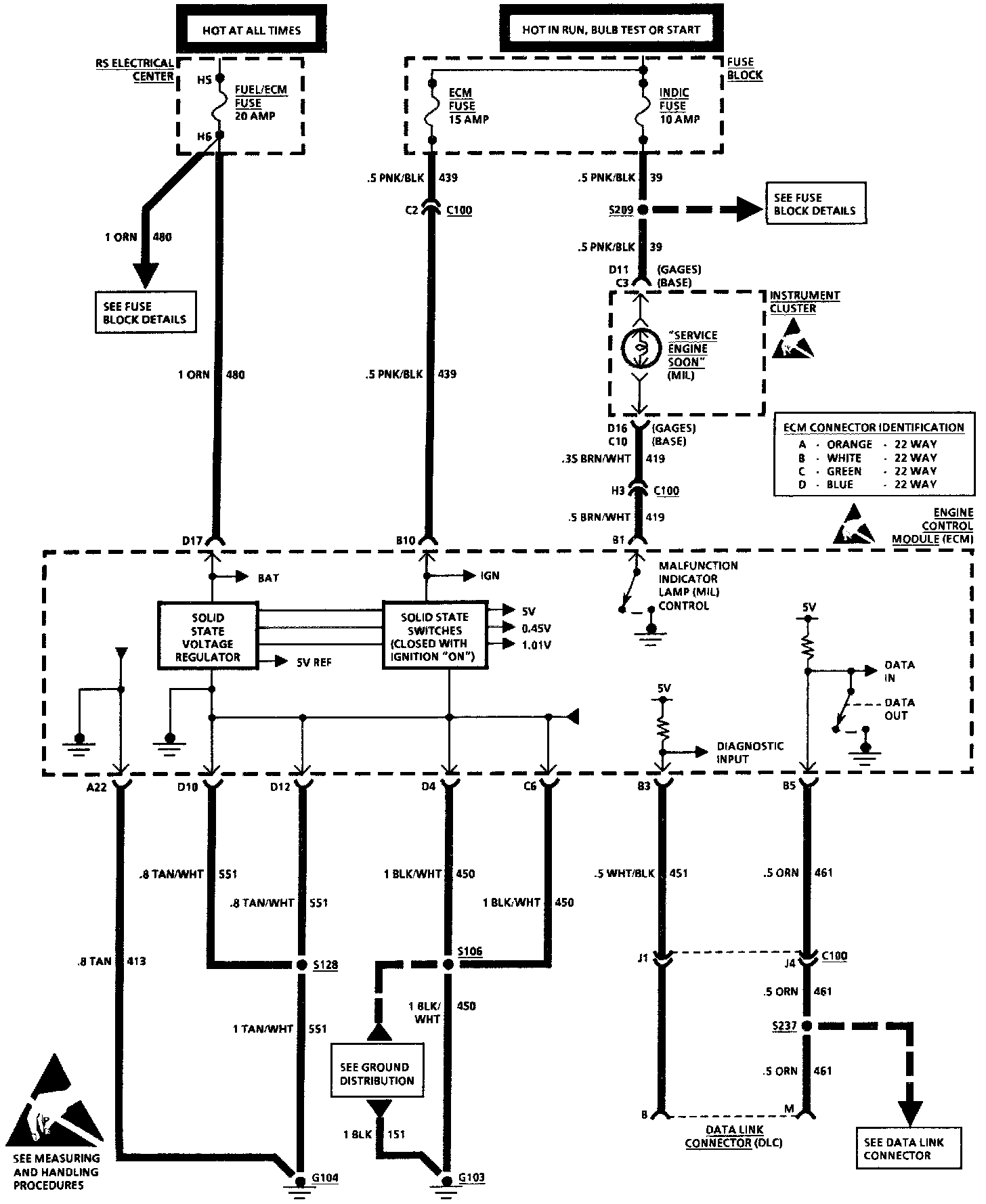

Multiport Fuel Injection: Power, Ground, DLC And Malfunction Indicator Lamp:
