Housing Assembly HVAC: Service and Repair

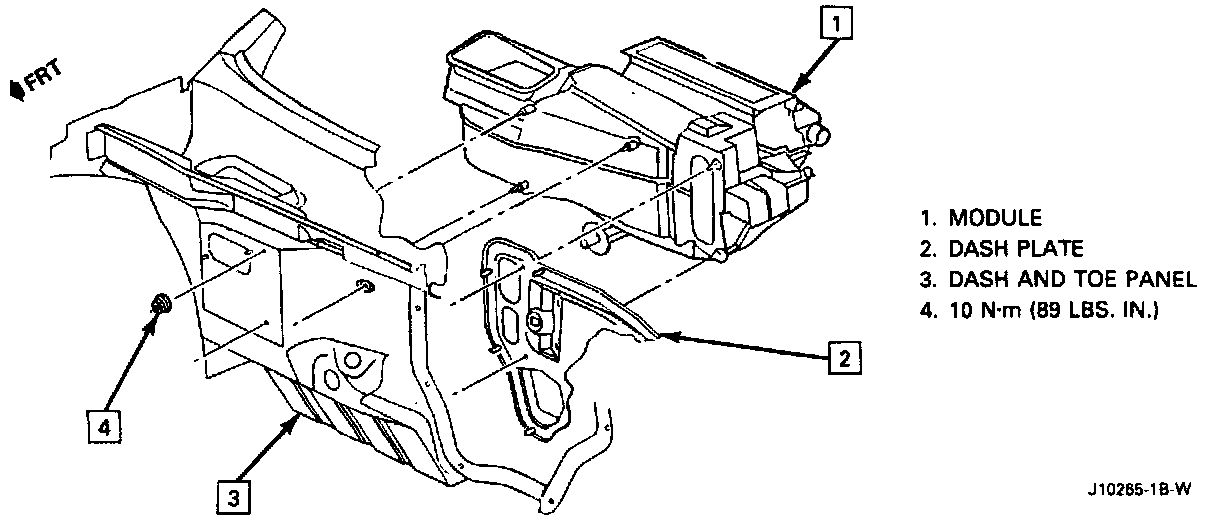

Module Assembly:

Typical Heater System Duct Work:

REMOVE OR DISCONNECT
1. Air cleaner, if necessary to access battery cable.
2. Negative battery cable.
3. Right sound insulator panel under instrument panel.
4. Electrical convenience center:
A. Remove rear screws.
B. Loosen front screw.
C. Slide out.
5. Electrical connector at motor.
6. Harness from clip.
7. Blower motor mounting screws.
8. Blower motor.

INSTALL OR CONNECT
1. Blower motor.
2. Mounting screws.
3. Harness to clip.
4. Electrical connector.
5. Electrical convenience center.
6. Sound insulator panel.
7. Negative battery cable.
8. Air cleaner, if removed.
