Timing Chain/Gear Alignment
Timing Chain/Gear Alignment

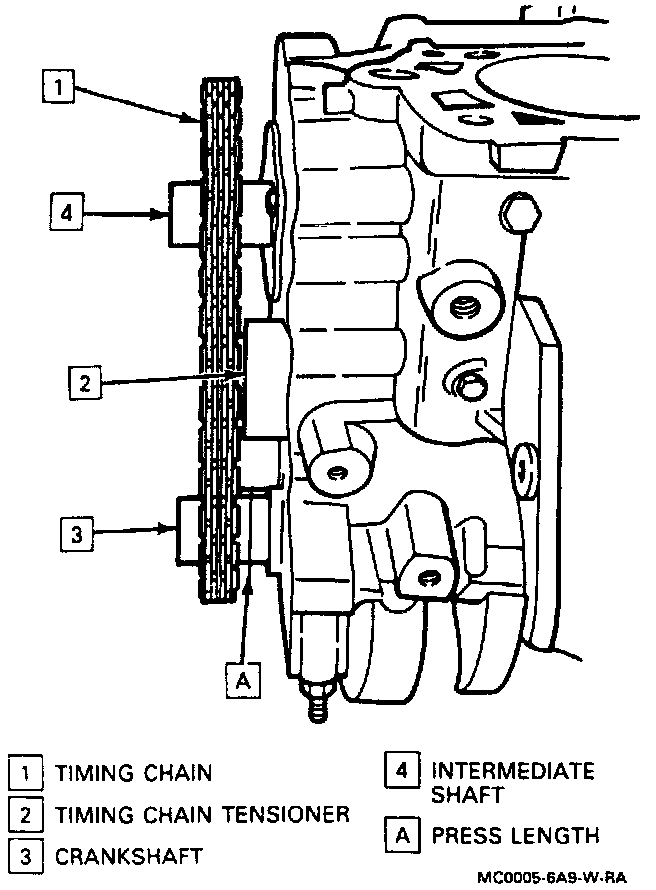

Proper Parallel Alignment Of The Timing Chain Assembly:
