Home
>>
Chevrolet
>>
1993
>>
Lumina V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Power Window Circuit Breaker
Power Window Circuit Breaker

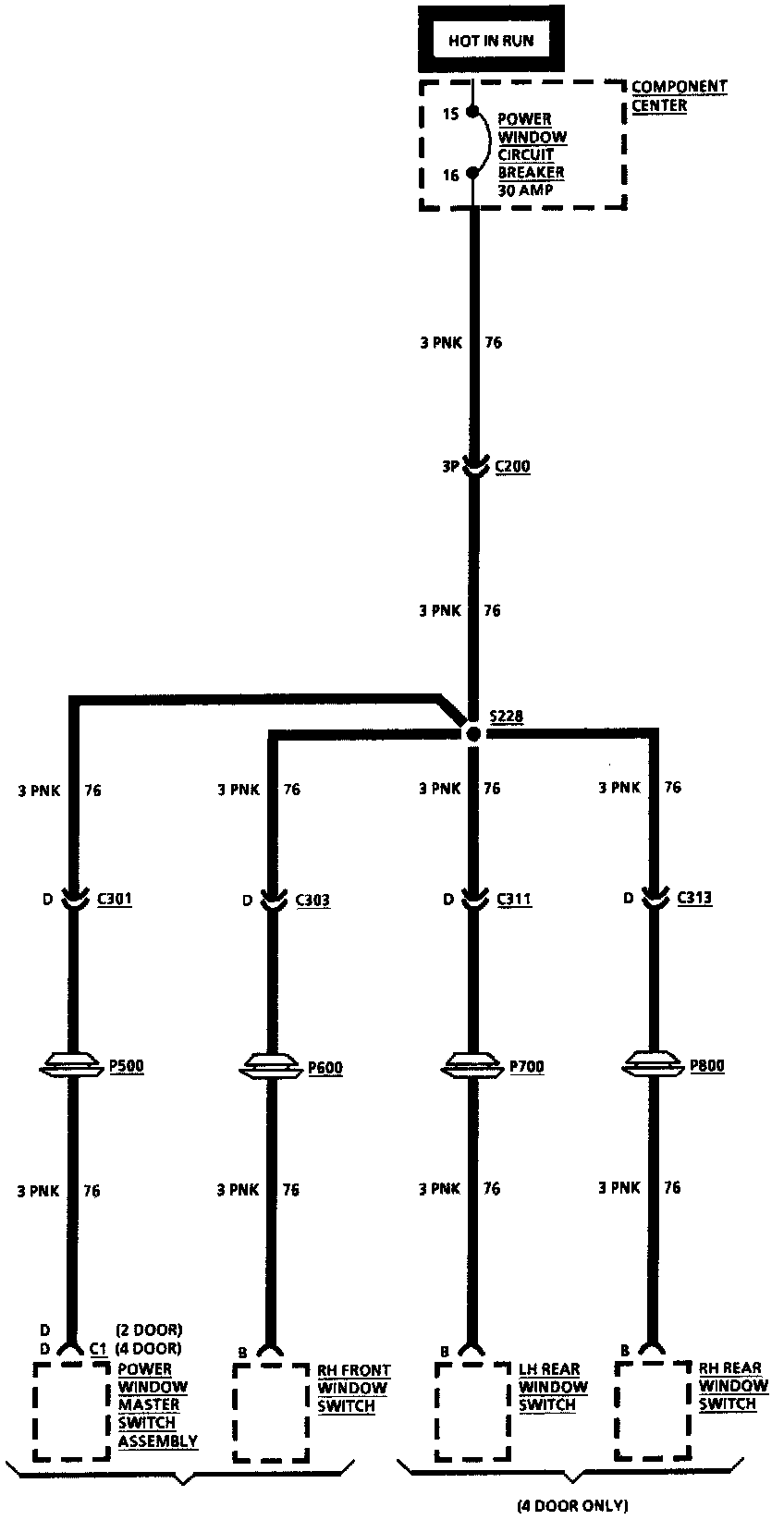

Fuse Block Details, Power Window Circuit Breaker:
