Engine Data Sensors

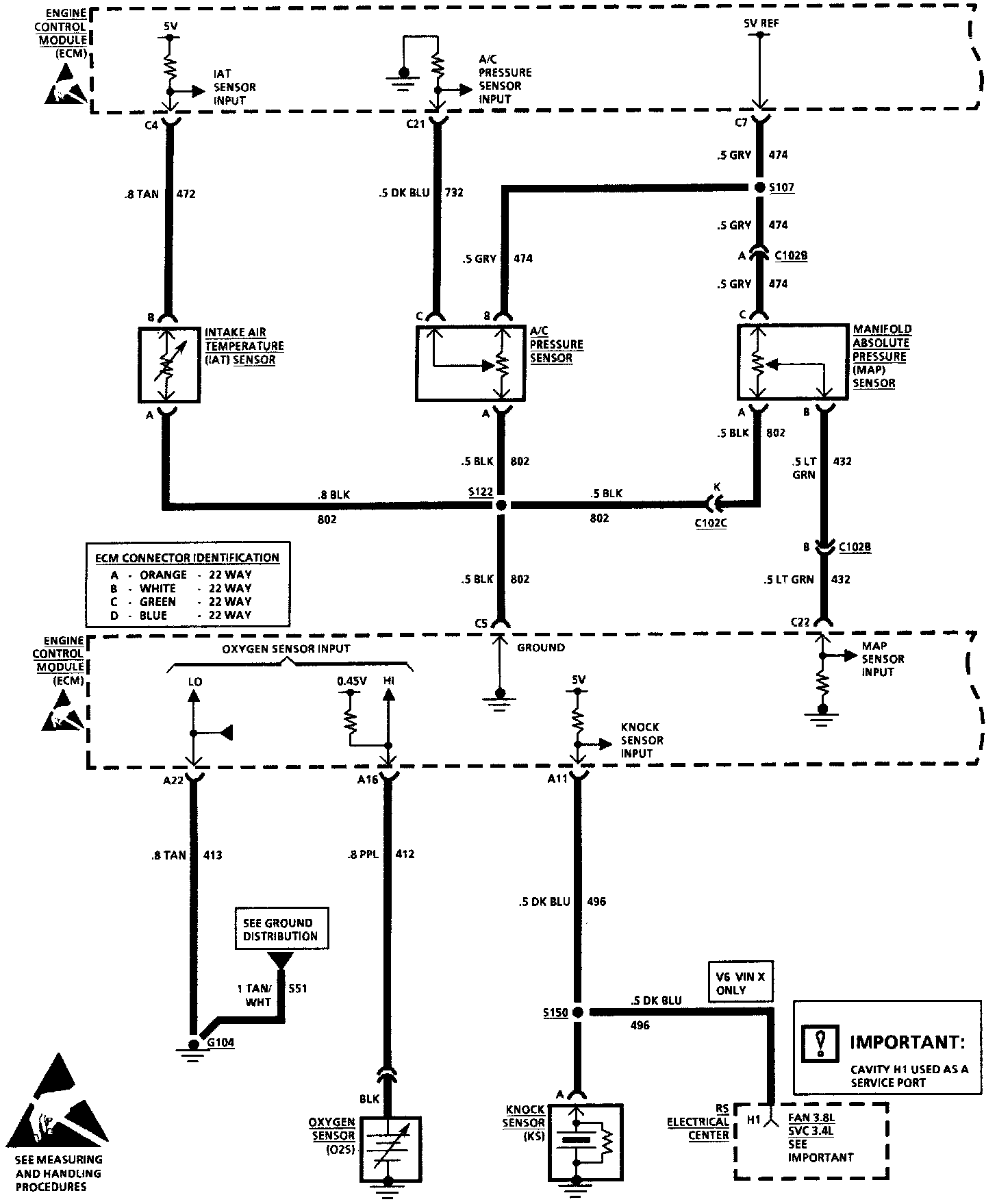

Multiport Fuel Injection: Engine Data Sensors:



Multiport Fuel Injection: Engine Data Sensors Cont.:
