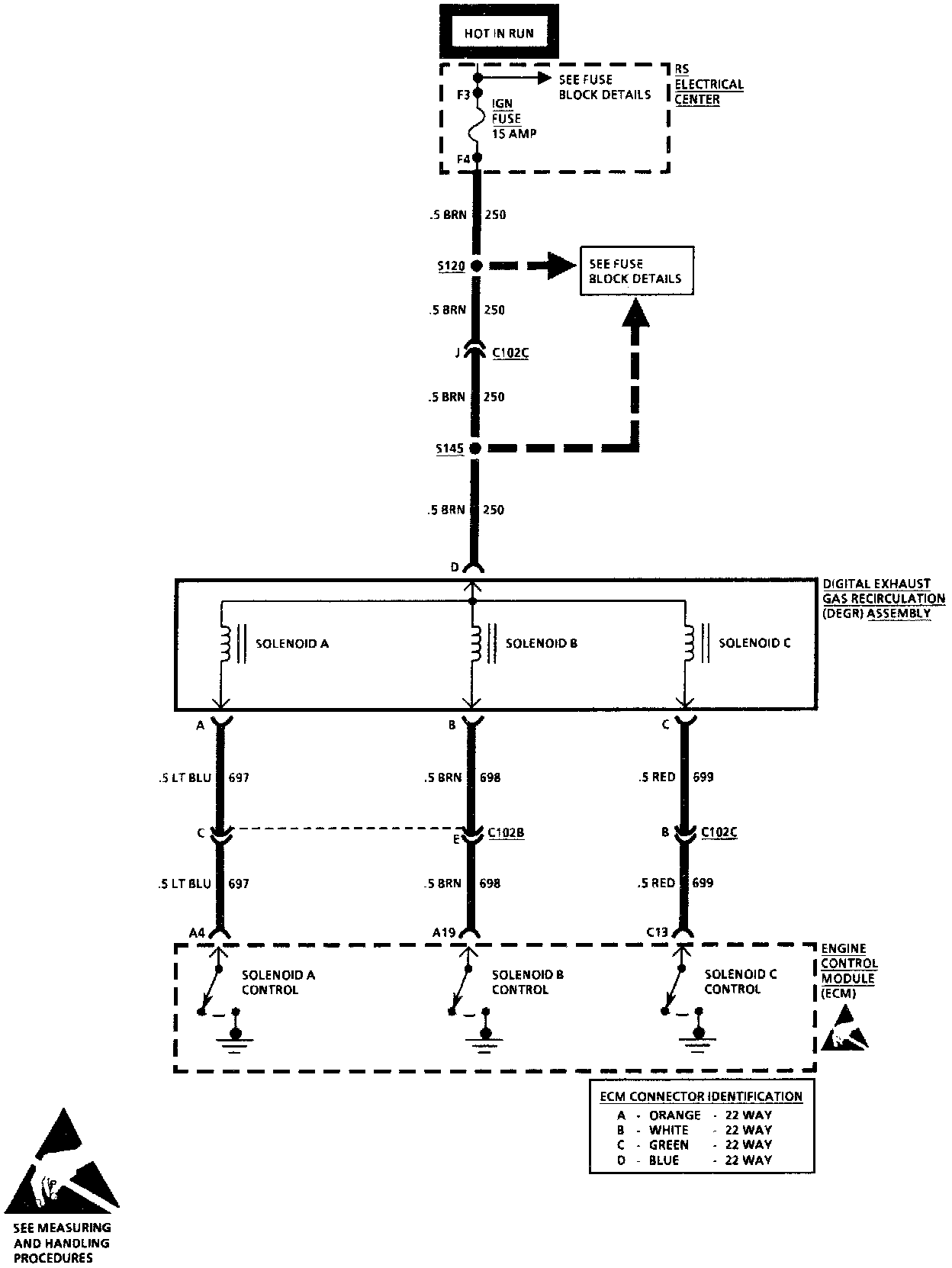

Digital Exhaust Gar Recirculation (EGR)

Multiport Fuel Injection: Digital Exhaust Gas Recirculation:
