Chevrolet
>>
1993
>>
Lumina V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

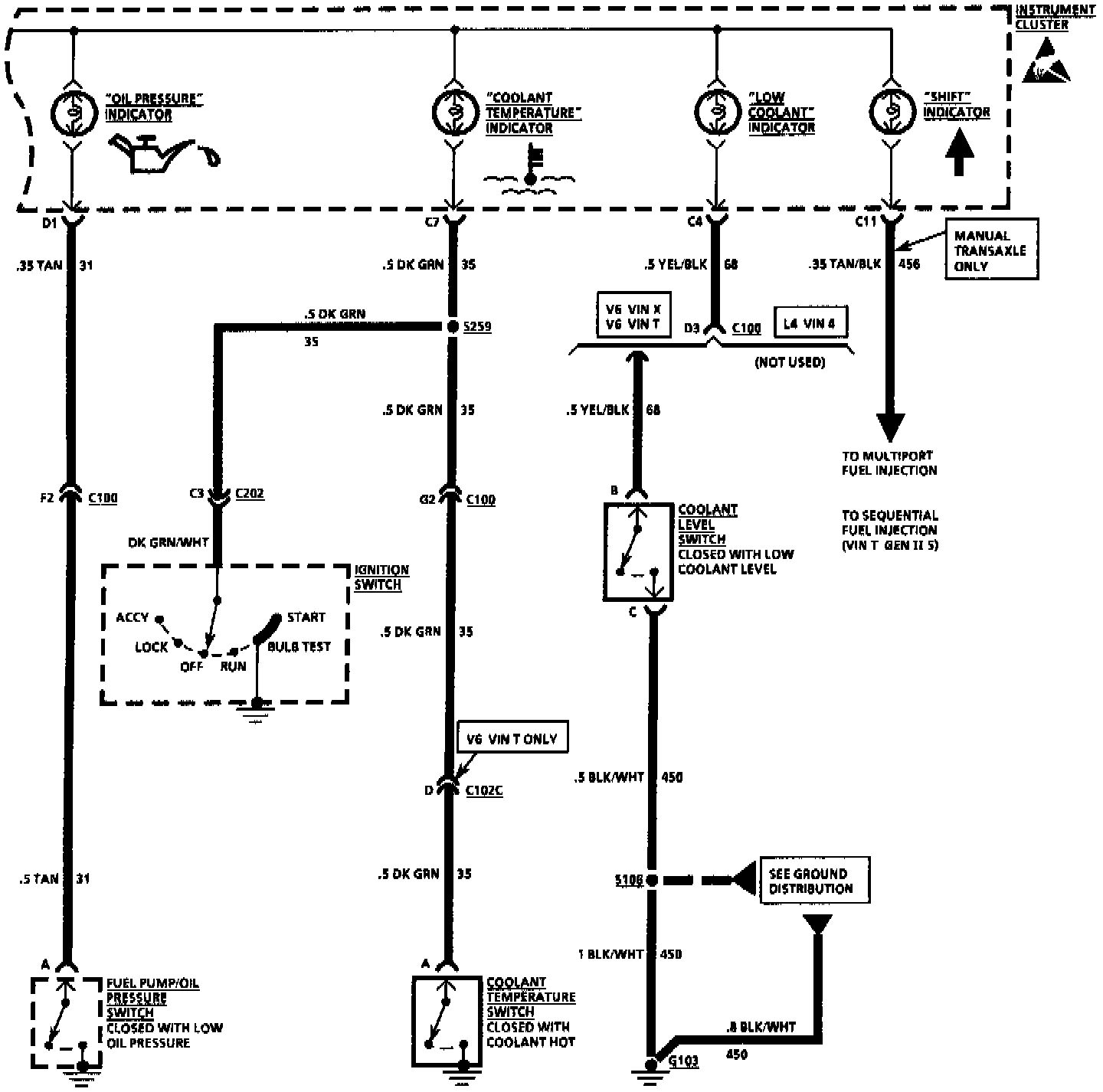

Coolant Level Indicator Lamp
>>
Base Cluster
Base Cluster
Instrument Cluster Base Cont.:
