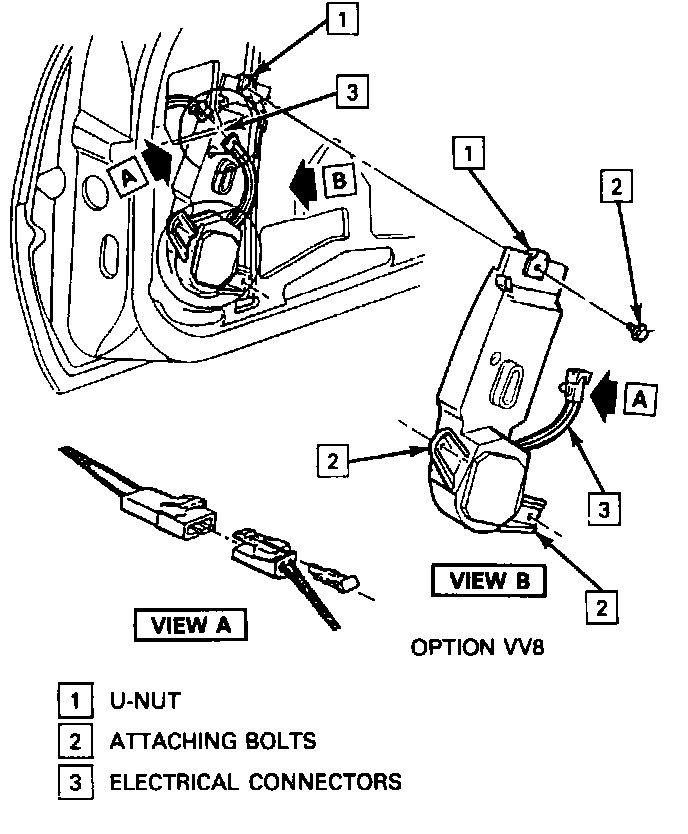

Door Speaker

Speakers:

Remove or Disconnect

1. Trim Panel.
2. Attaching screws to door.
3. Electrical connectors.
4. Speakers.

Install or Connect

1. Electrical connector.
2. Speaker to door.
3. Attaching screw to door.

Tighten
^ ^ Screws to 2 N.m (18 lb in).

4. Trim Panel.
