Trim, Covers and Adjusters

FRONT SEAT TRIM AND COVERS 28 & 29








Recliner Trim Cover - Outboard
Figures 2 and 3

Remove or Disconnect
1. Handwheel. Refer to "Handwheel" in this bulletin.
2. Three pins.
- Push out from inside of cover.
3. Recliner trim cover.

Recliner Trim Cover - Inboard
Figures 2 and 3

Remove or Disconnect
1. Three pins.
- Push out from inside of cover.
2. Recliner trim cover.

Front Seatback Center Cover or Pad
Figures 2 and 3

Remove or Disconnect
1. Front seatback center cushion. Refer to "Front Seatback Center Cushion" in this bulletin.
2. Trim retainer rings from front seatback center cushion.
3. Swing wires.
4. Staples.
5. Front seatback center cover from foam pad.

Front Seatback Cape Cover or Pad
Figure 2 and 3

Remove or Disconnect
1. Front seatback cape cushion. Refer to "Front Seatback Cape Cushion" in this bulletin.
2. J-retainers.
3. Front seatback cape cover from foam pad.

Front Seat Cushion Cover or Pad
Figures 2 and 3

Remove or Disconnect
1. Front seat cushion. Refer to "Front Seat Cushion" in this bulletin.
2. Trim retainer rings from front seat cushion assembly.
3. Swing wires.
4. Front seat cushion cover from foam pad.

Install or Connect
1. Recliner trim cover. Three pins.
- Install from outboard side of cover using a rubber mallet.
3. Handwheel. Refer to "Handwheel" in this bulletin.

Install or Connect
1. Recliner trim cover.
2. Three pins.
- Install from outboard side of cover using a rubber mallet.

Install or Connect
1. Front seatback center cover to foam pad.
2. Staples.
3. Swing wires.
4. Trim retainer rings to front seatback center cushion.
5. Front seatback center cushion. Refer to "Front Seatback Center Cushion" in this bulletin.

Install or Connect
1. Front seatback cape cover to foam pad.
2. J-retainers.
3. Front seatback cape cushion. Refer to "Front Seatback Cape Cushion" in this bulletin.

Install or Connect
1. Front seat cushion cover to foam pad.
2. Swing wires.
3. Trim retainer rings to front seat cushion assembly.
4. Front seat cushion. Refer to "Front Seat Cushion" in this bulletin.

Head Restraint Cover
Figures 2 and 3

Remove or Disconnect
1. Raise head restraint.
2. J-retainers.
3. Head restraint cover from foam pad.








HEAD RESTRAINT

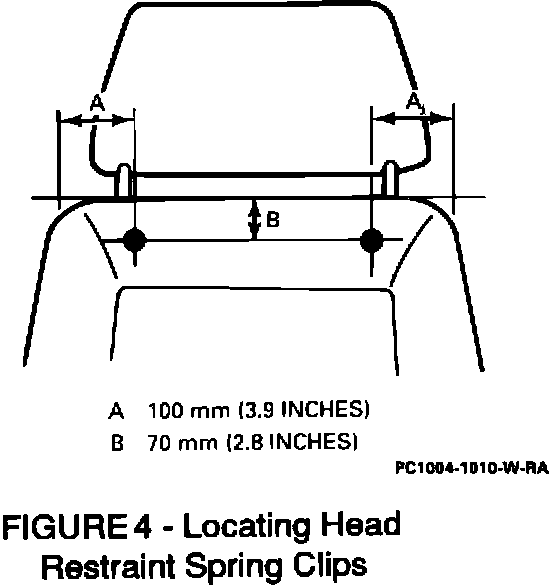

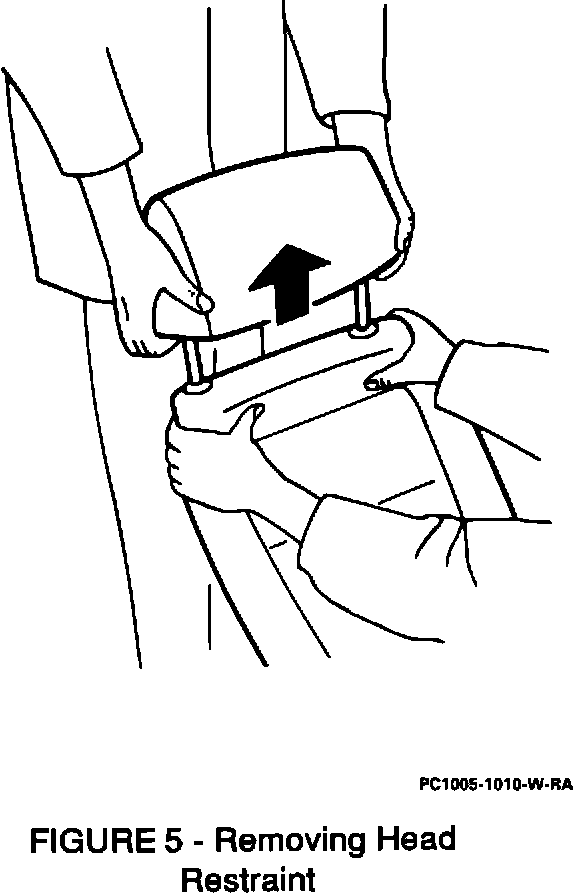

Figures 4 and 5

Remove or Disconnect
1. Fully lower head restraint.
2. Locate head restraint ratchet springs in upper portion of seatback.
3. Press and hold both head restraint ratchet springs with thumbs.
4. Head restraint with quick upward motion while holding ratchet springs.

HANDWHEEL
Figures 2 and 3

Remove or Disconnect
1. Bolt/screw.
2. Handwheel and washer's.

FRONT SEAT ADJUSTER ASSEMBLY
Figures 2 and 3

Remove or Disconnect
1. Front seat assembly. Refer to "Front Seat Assembly" in this bulletin.
2. Bolts/screws from seat cushion assembly.
3. Front seat adjuster assembly from seat cushion assembly.

FRONT SEAT RECLINER ASSEMBLY

Other than the recliner handwheel, the front seat recliner assembly is not serviceable.

Install or Connect
1. Head restraint cover to foam pad.
2. J-retainers.
3. Lower head restraint.

Install or Connect
1. Head restraint posts into seatback openings.
2. Fully lower head restraint.

Install or Connect
1. Handwheel and washers.
2. Bolt/screw.
Tighten
- Bolt/screw to 5.4 N-m (48 lb.in.).

Install or Connect
1. Front seat adjuster assembly to seat cushion assembly.
2. Bolts/screws to seat cushion assembly.
Tighten
- Bolts/screws to 11 N-m (97 lb.in.).
3. Front seat assembly. Refer to "Front Seat Assembly" in this bulletin.

FRONT SEAT ADJUSTER
Figures 2 and 3

Remove or Disconnect
1. Front seat adjuster assembly. Refer to "Front Seat Adjuster Assembly" in this bulletin.
2. Front seat adjuster release bar. Refer to "Front Seat Adjuster Release Bar" in this bulletin.
3. Bolts/screws and washers from bracket.
4. Front seat adjuster from bracket.

FRONT SEAT ADJUSTER RELEASE BAR
Figures 2 and 3

Remove or Disoonnect
1. Retainers using a screwdriver to pry retainers off.
2. Front seat adjuster release bar from adjusters.

Install or Connect
1. Front seat adjuster to bracket.
2. Bolts/screws and washers to bracket. Tighten
- Bolts/screws to 23 N-m (17 lb.ft.).
3. Front seat adjuster release bar. Refer to "Front Seat Adjuster Release Bar" in this bulletin.
4. Front seat adjuster assembly. Refer to "Front Seat Adjuster Assembly" in this bulletin.

Install or Connect
1. Front seat acouster release bar to adjusters.
2. Retainers by pressing into position.
