Front Seat and Cushions

FRONT SEAT ASSEMBLY

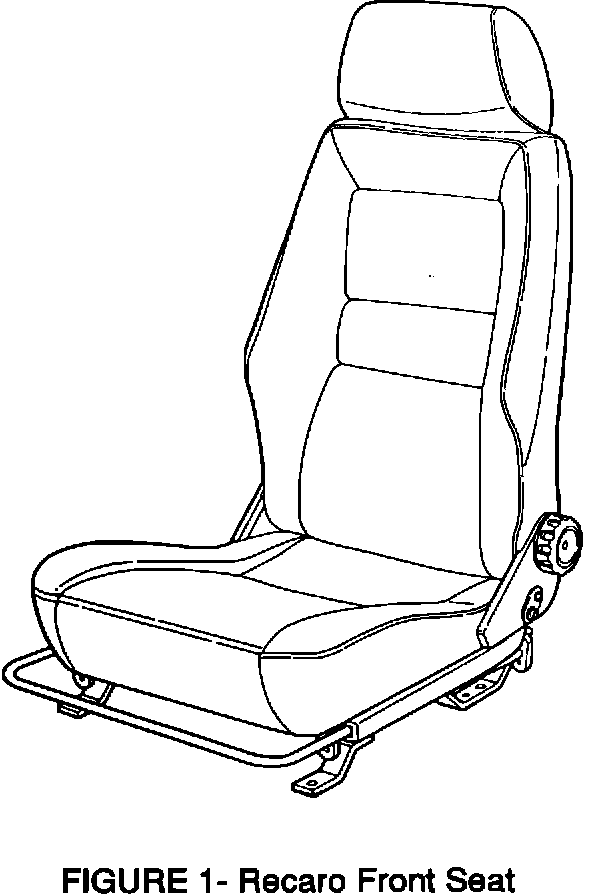

Figure 1

Remove or Disconnect
1. Operate seat to full-rearward position.
2. Front anchor bolts/screws.
3. Operate seat to full-forward posibon.
4. Rear anchor bolts/screws.
5. Seat assembly ensuring spacer washers remain in place.








FRONT SEATBACK ASSEMBLY

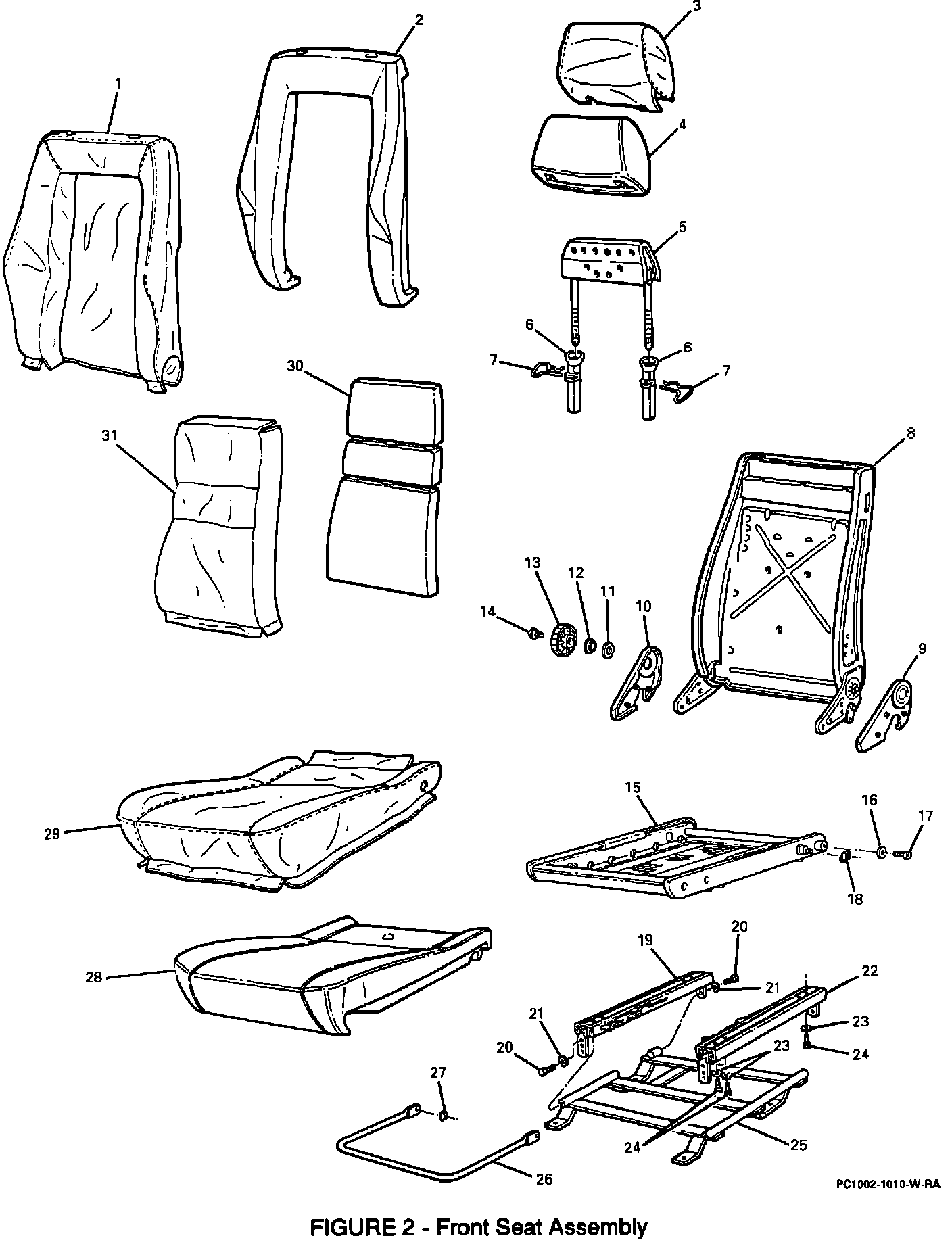

Figures 2 and 3

Remove or Disconnect
1. Recliner trim covers. Refer to "Front Seat Trim and Covers" in this bulletin.
2. Seatback to seat cushion frame retainers from pins.
3. Seatback to seat cushion frame bolts/screws and washers.
4. Seatback from pins.

Install or Connect
1. Seat assembly ensuring spacer washers are located between floor pan and seat track.
2. Rear anchor bolts/screws.
Tighten
- Bolts/screws to 24 N-m (18 lb.ft.).
3. Operate seat to full-rearward position.
4. Front anchor bolts/screws.
Tighten
- Bolts/screws to 24 N-m (18 lb.ft.).

Install or Connect
1. Seatback to pins.
2. Seatback to seat cushion frame bolts/screws and washers.
Tighten
- Bolts/screws to 11 N-m (97 lb.in.)
3. Seatback to seat cushion frame retainers to pins.
4. Recliner trim covers. Refer to "Front Seat Trim and Covers" in this bulletin.

FRONT SEAT CUSHION ASSEMBLY
Figures 2 and 3

Remove or Disconnect
1. Seat assembly. Refer to "Front Seat Assembly" in this bulletin.
2. Seatback. Refer to "Front Seat Assembly" in this bulletin.
3. Seat adjuster assembly from front seat cushion assembly. Refer to "Front Seat Adjuster Assembly" in this bulletin.

FRONT SEATBACK CENTER CUSHION
Figures 2 and 3

Remove or Disconnect
1. Front seatback assembly. Refer to "Front Seatback Assembly" in this bulletin.
2. Head restraint. Refer to "Head Restraint" in this bulletin.
3. J-retainer on boftom of front seatback center cushion.
4. Trim retainer rings connecting front seatback center cushion to seatback frame.
5. Front seatback center cushion swing wire from under tabs on seatback frame.
- Bend tabs as necessary to release swing wire.
6. Front seatback center cushion from frame.

FRONT SEATBACK CAPE CUSHION
Figures 2 and 3

Remove or Disconnect
1. Front seatback center cushion. Refer to "Front Seatback Center Cushion" in this bulletin.
2. Front seatback cape cushion swing wires from under tabs on seatback frame.
- Bend tabs as necessary to release swing wires.
3. Front seatback cape cushion from seatback frame.

FRONT SEAT CUSHION
Figures 2 and 3

Remove or Disconnect
1. Front seat cushion assembly. Refer to "Front Seat Cushion Assembly" in this bulletin.
2. J-retainers.
3. Front seat cushion assembly swing wires from under tabs on seat cushion frame.
- Bend tabs as necessary to release swing wires.
4. Front seat cushion from seat cushion frame.

Install or Connect
1. Front seat cushion assembly to seat adjuster assembly. Refer to "Front Seat Adjuster Assembly" in this bulletin.
2. Seatback. Refer to "Front Seatback Assembly" in this bulletin.
3. Seat assembly. Refer to "Front Seat Assembly" in this bulletin.

Install or Connect
1. Front seatback center cushion to seatback frame.
2. Front seatback center cushion swing wire under tabs on seatback frame.
- Bend tabs as necessary to secure swing wire.
3. Trim retainer rings connecting front seatback center cushion to seatback frame.
4. J-retainer on bottom of front seatback center cushion.
5. Head restraint. Refer to "Head Restraint" in this bulletin.

6. Front seatback assembly. Refer to "Front Seatback Assembly" in this bulletin.

Install or Connect
1. Front seatback cape cushion to seatback frame.
2. Front seatback cape cushion swing wires under tabs on seatback frame.
- Bend tabs as necessary to secure swing vvires.
3. Front seatback center cushion. Refer to "Front Seatback Center Cushion" in this bulletin.

Install or Connect
1. Front seat cushion to seat cushion frame.
2. Front seat cushion assembly swing wires under tabs on seat cushion frame.
- Bend tabs as necessary to secure swing wires.
3. J-retainers.
4. Front seat cushion assembly. Refer to "Front Seat Cushion Assembly" in this bulletin.
