Home
>>
Chevrolet
>>
1993
>>
Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G305
G305

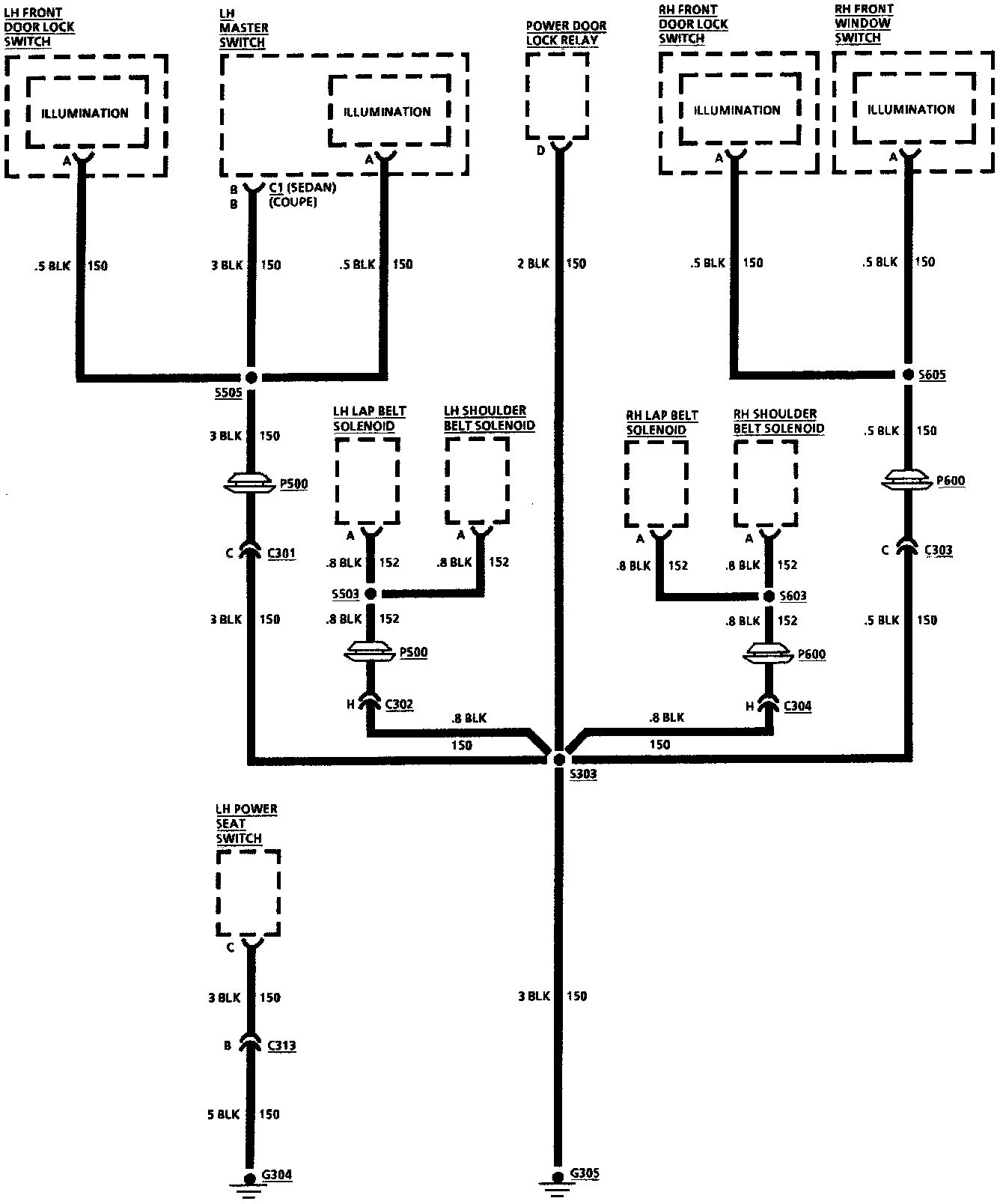

Ground Distribution: G305:
