Home >> Chevrolet >> 1993 >> Lumina L4-134 2.2L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Instrument Panel (I/P) Fuse Block >> Ctsy Fuse

Ctsy Fuse

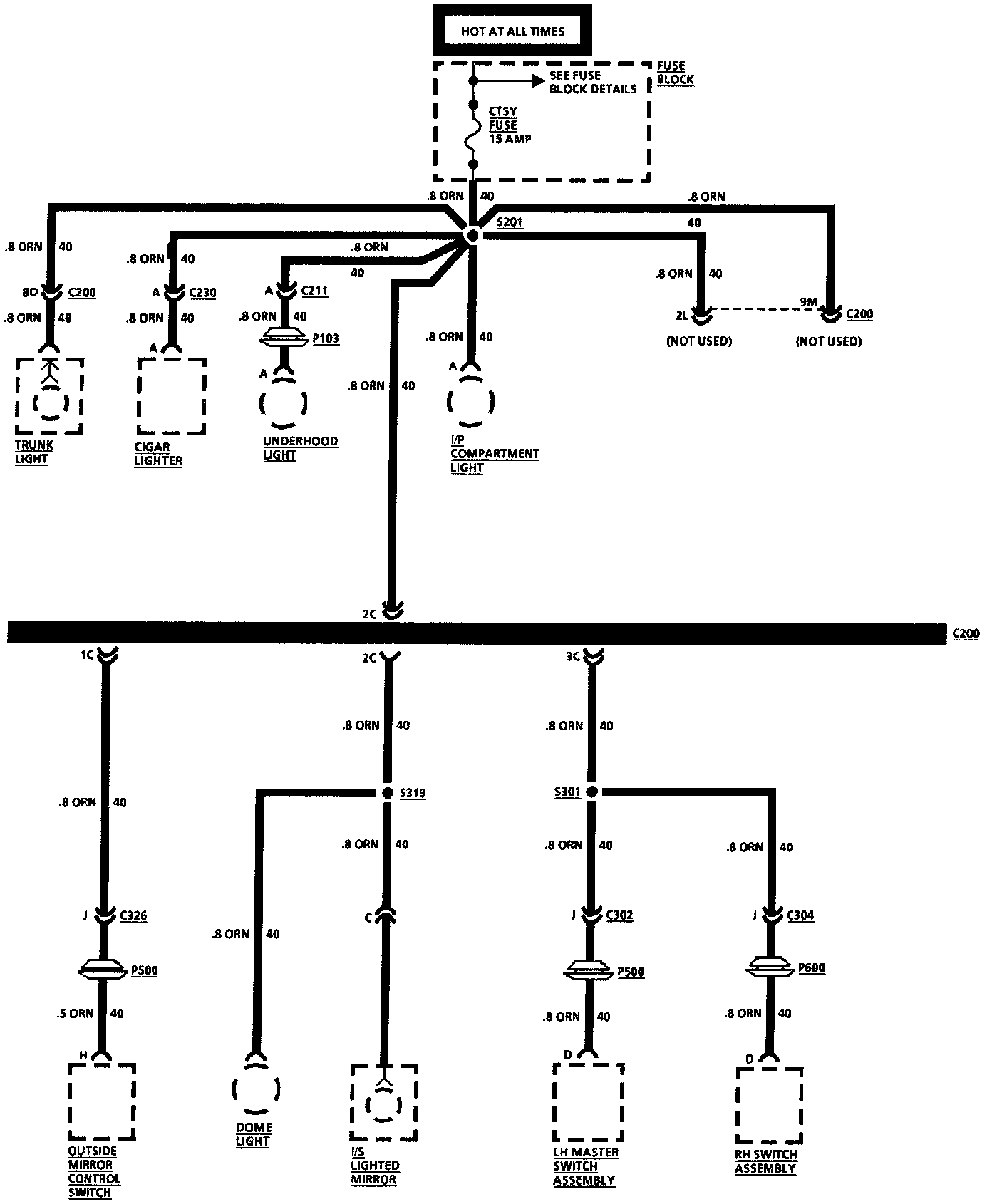

Fuse Block Details, Ctsy Fuse:
