Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1993
>>
Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
>>
Instrument Panel (I/P) Fuse Block
>>
Turn, ECM Indic Fuses
Turn, ECM Indic Fuses

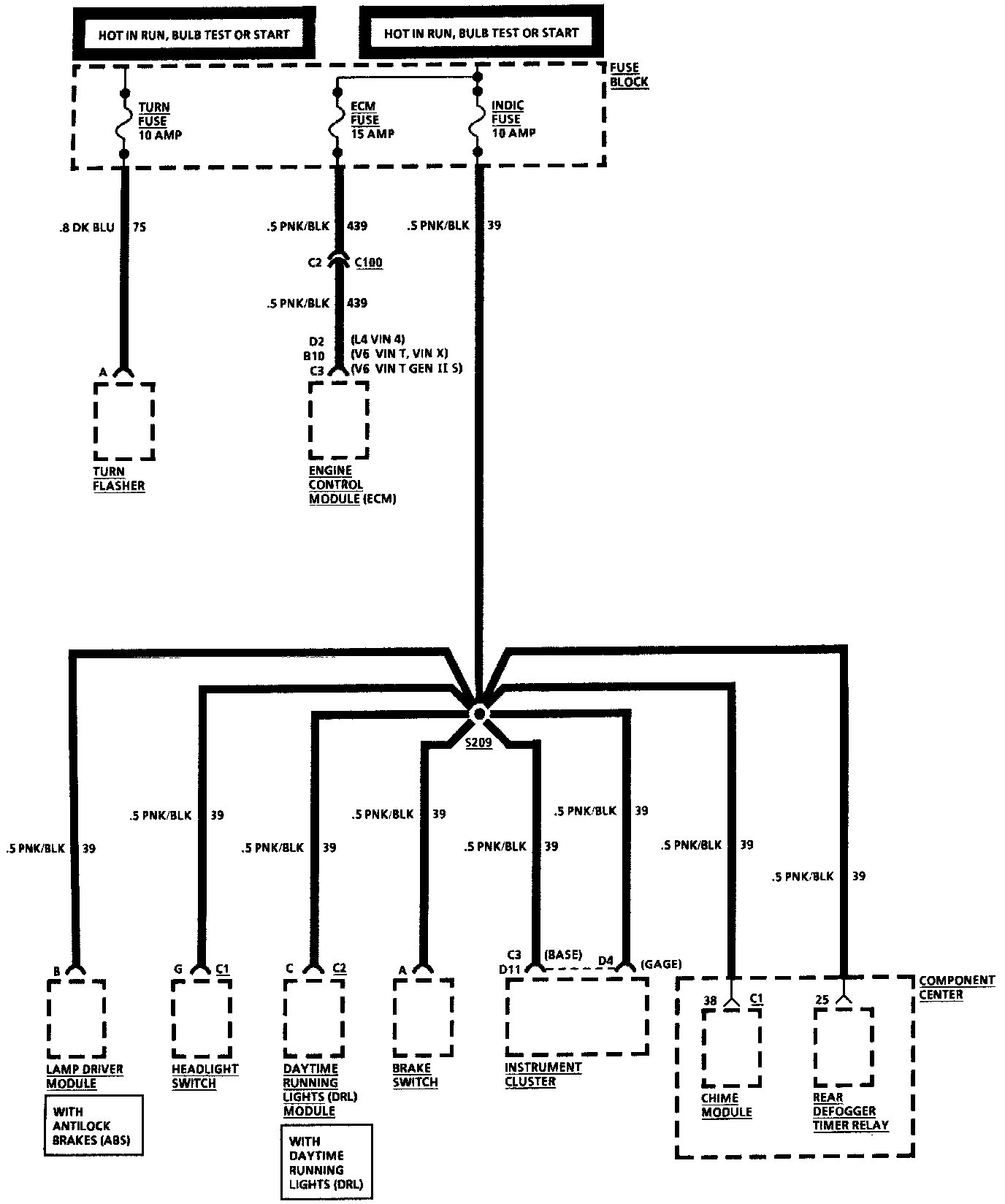

Fuse Block Details, Turn, ECM And Indic Fuses:
