Home
>>
Chevrolet
>>
1993
>>
Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
>>
Instrument Panel (I/P) Fuse Block
>>
Panel, Tail, Wiper & Radio Fuses
Panel, Tail, Wiper & Radio Fuses

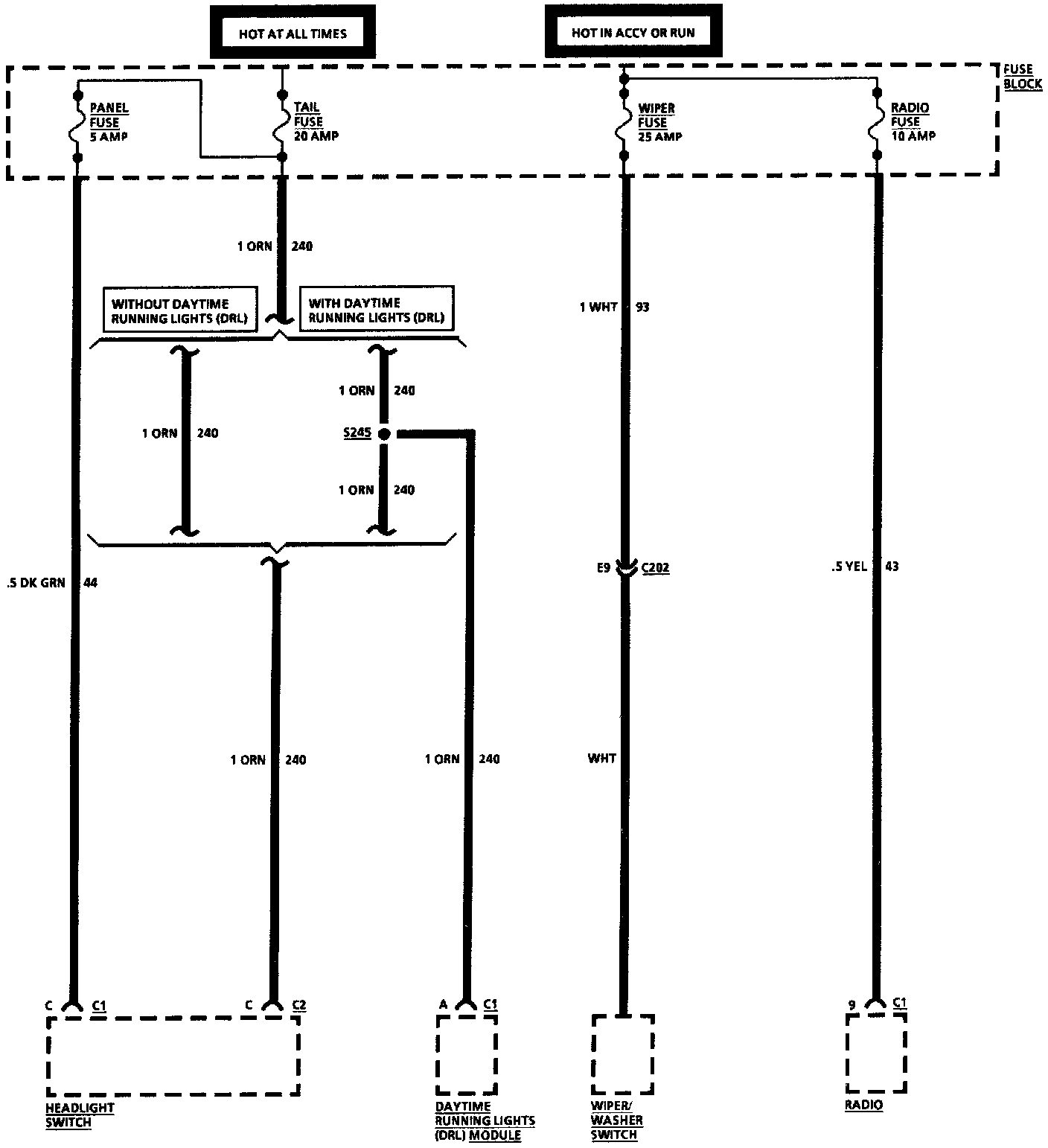

Fuse Block Details, Panel, Tail, Wiper And Radio Fuses:
