Curiosii for ever!: Car repair manuals for everyone.

Home >> Chevrolet >> 1993 >> Lumina L4-134 2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Instrument Panel (I/P) Fuse Block >> CLUST Fuse

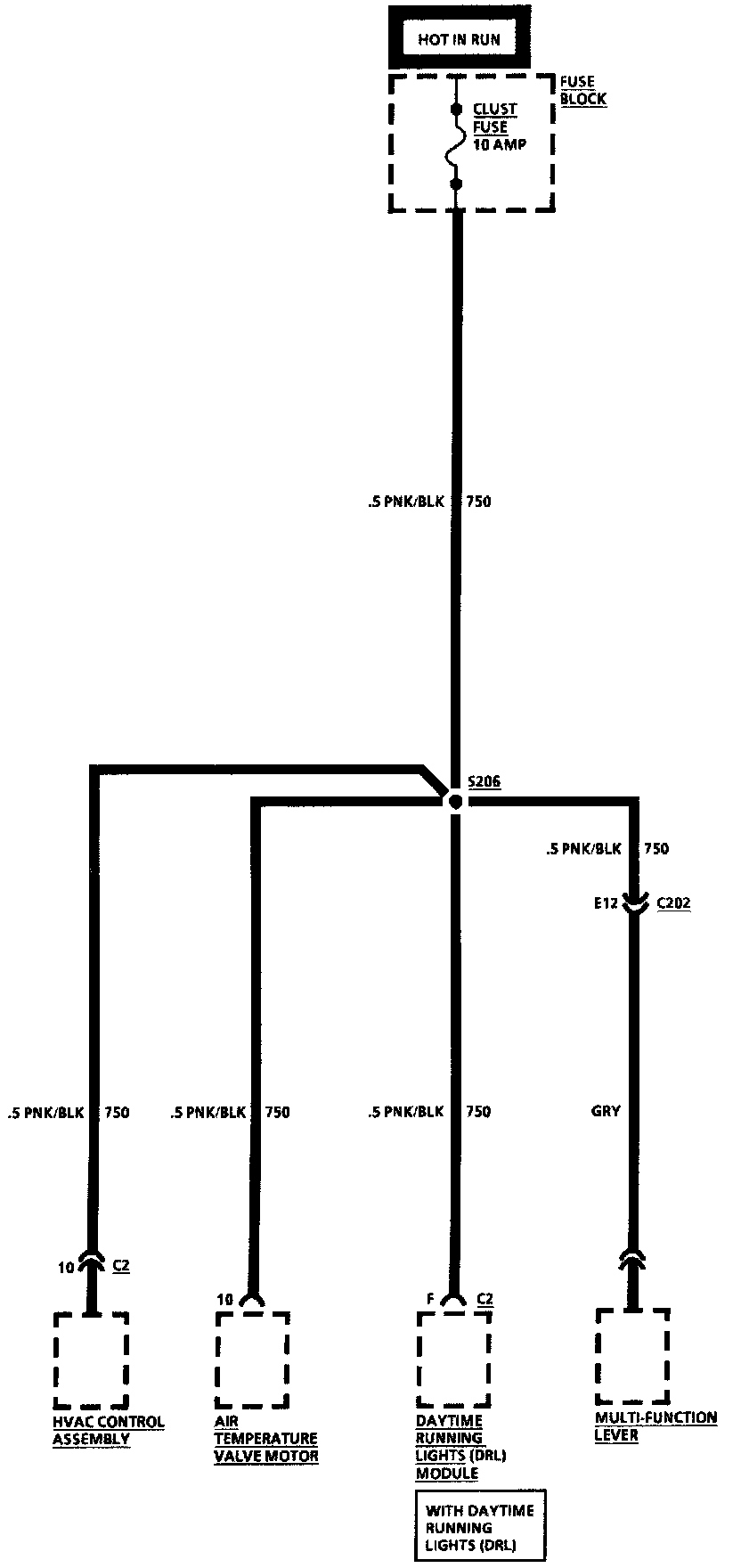

CLUST Fuse

Fuse Block Details, Clust Fuse:
