Home
>>
Chevrolet
>>
1993
>>
Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
With Gages
With Gages

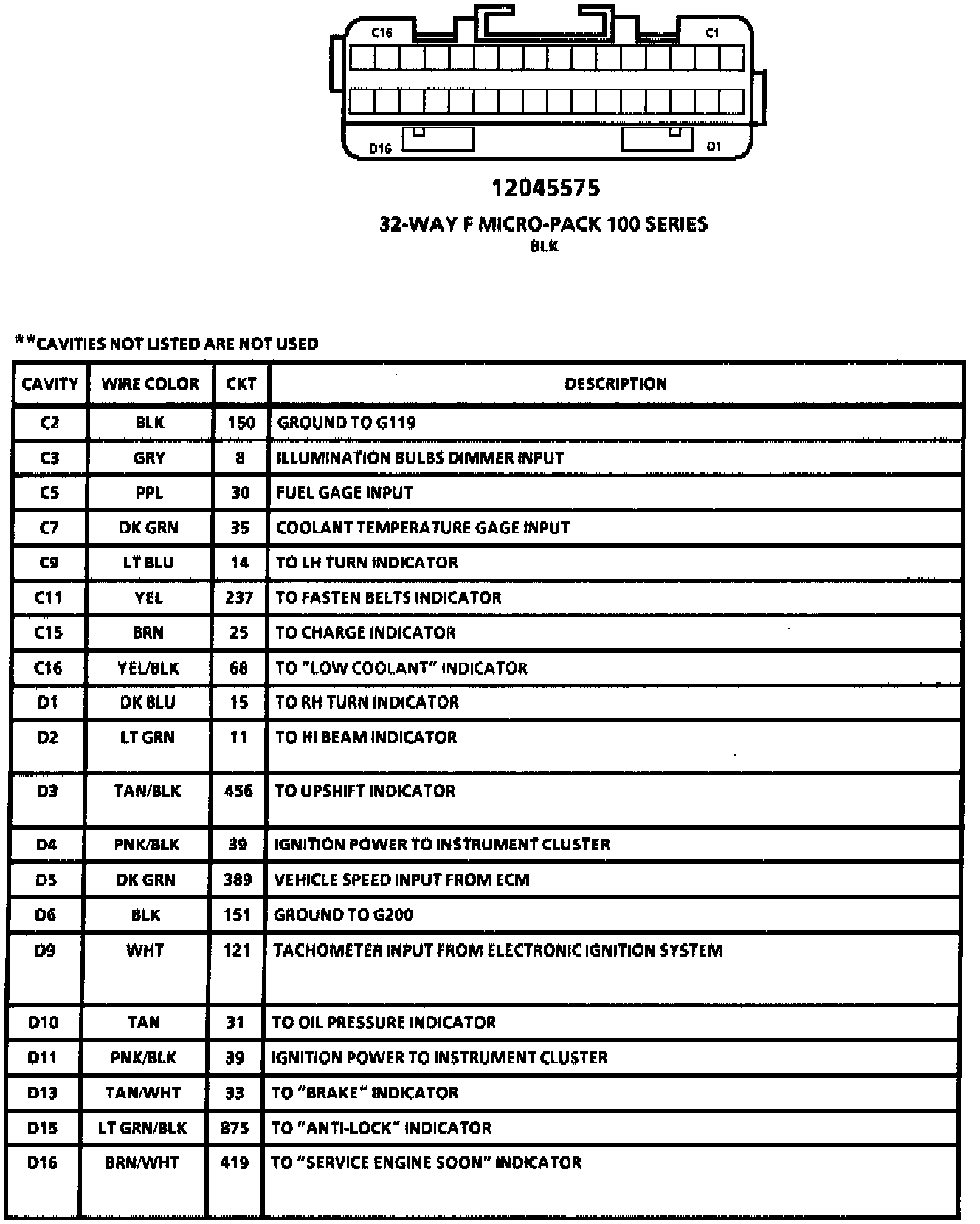

Instrument Cluster Connector: With Gages:
