Chart 4 Blower Does Not Operate at High Speed
Chart 4 Blower Does Not Operate at High Speed

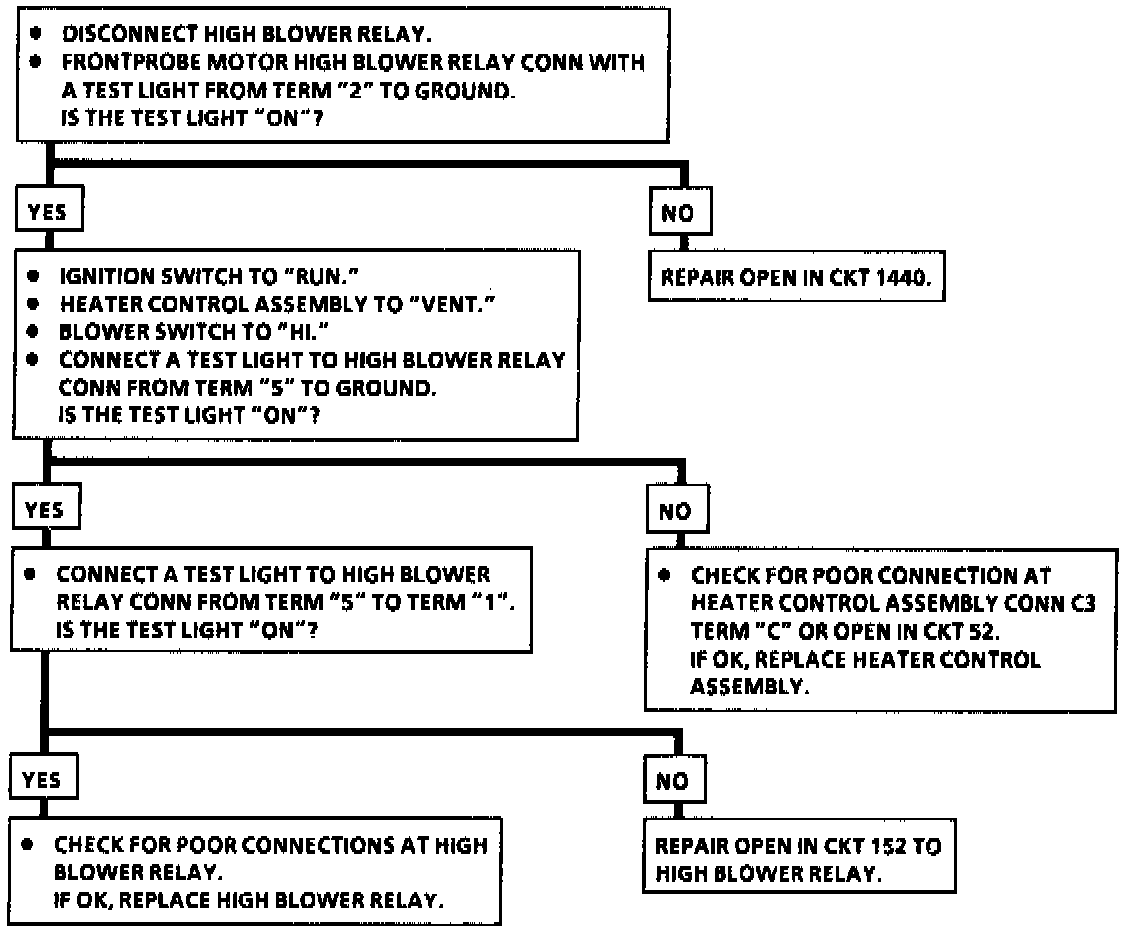

Chart 4 Blower Motor Will Operate At Low And Medium Speeds, But Not At High Speeds:
