Home
>>
Chevrolet
>>
1993
>>
Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
G322
G322

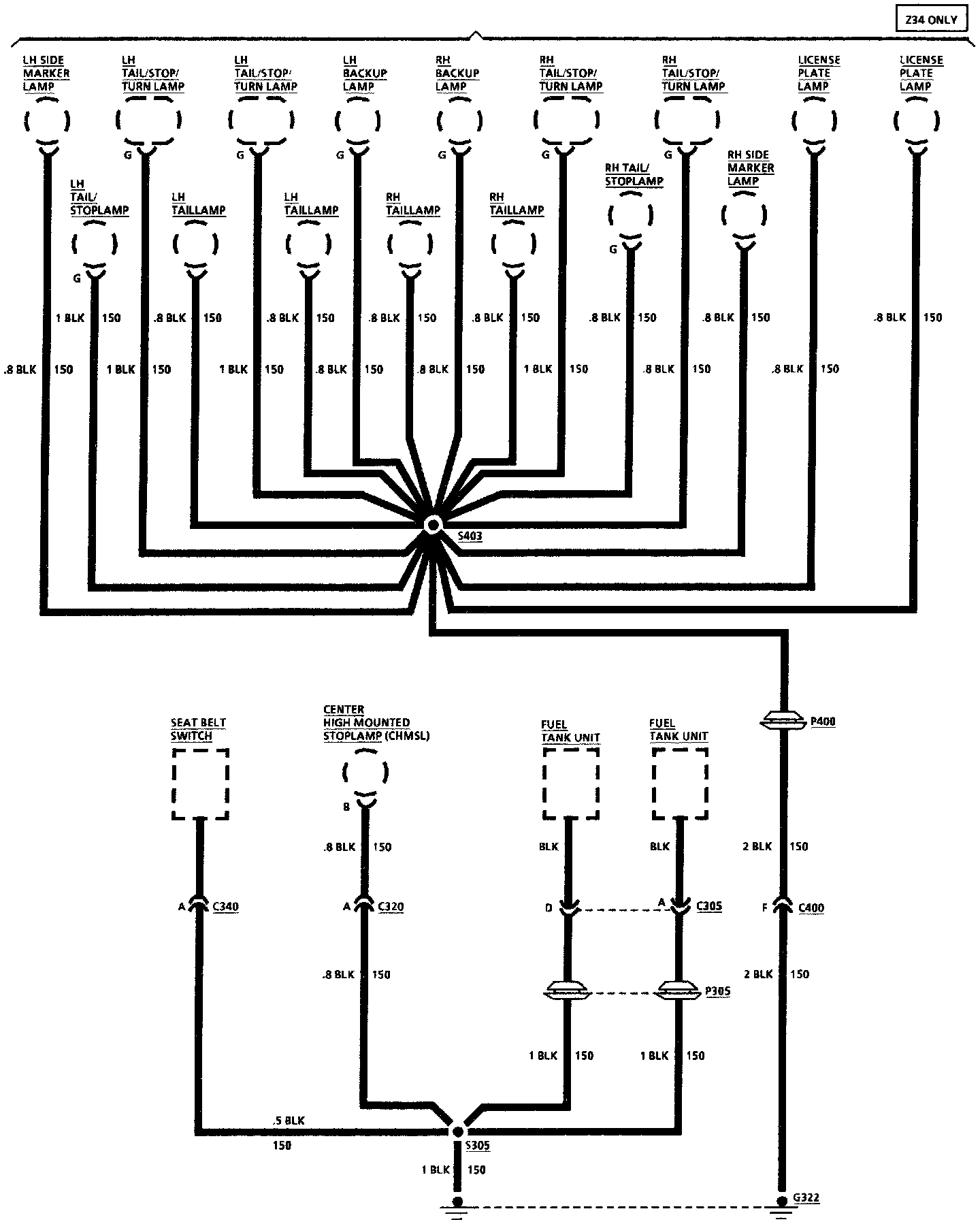

Ground Distribution: G322:
