Home >> Chevrolet >> 1993 >> Lumina L4-134 2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Fuse Block Diagrams >> Instrument Panel (I/P) Fuse Block >> Hzd and Stop Fuses

Hzd and Stop Fuses

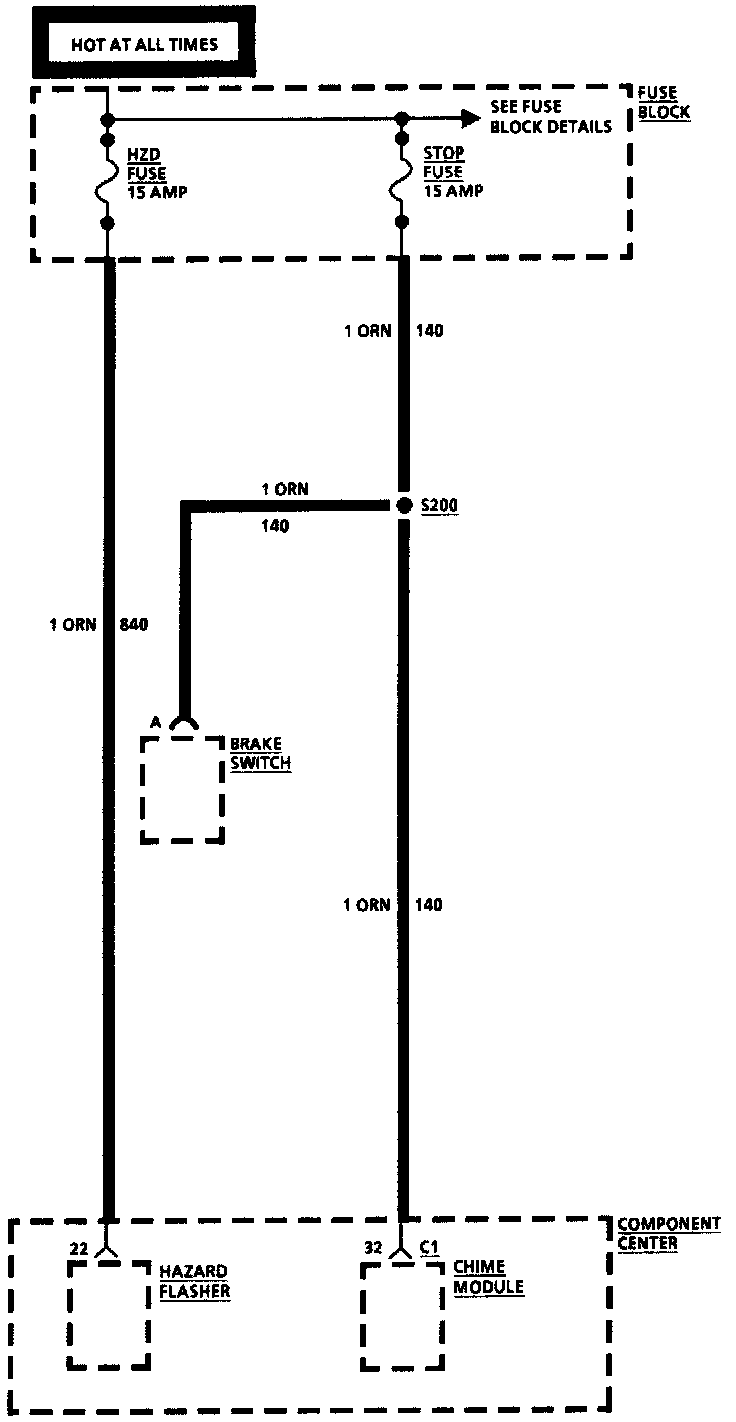

Fuse Block Details, Hazard And Stop Fuses:
