Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>

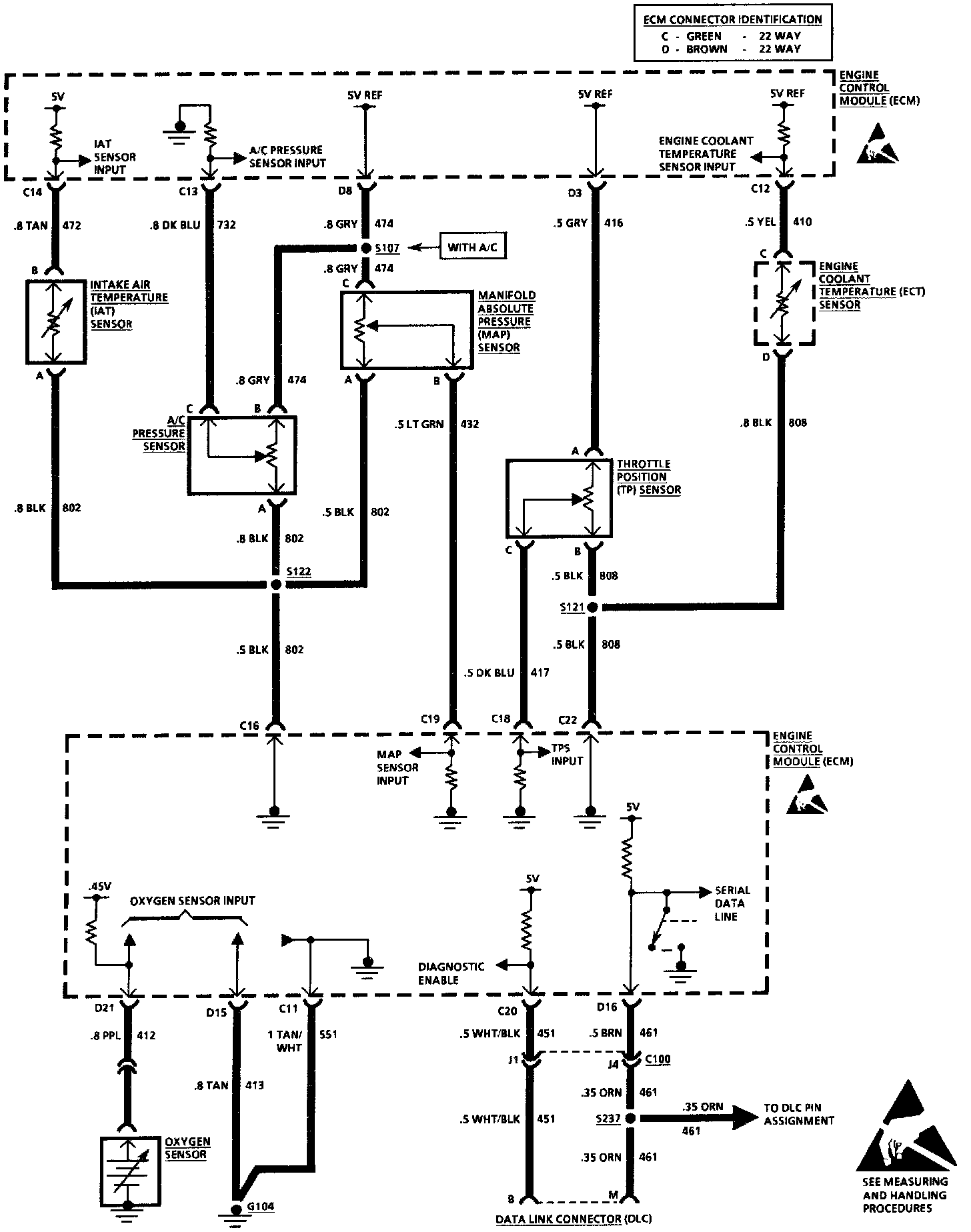

System Diagram
>>
Engine Data Sensors & Vehicle Data Sensors
Engine Data Sensors & Vehicle Data Sensors
Multiport Fuel Injection: Engine Data Sensors:
