Chevrolet
>>
1993
>>
Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Coolant Level Indicator Lamp
>>
Gauge Cluster
Gauge Cluster

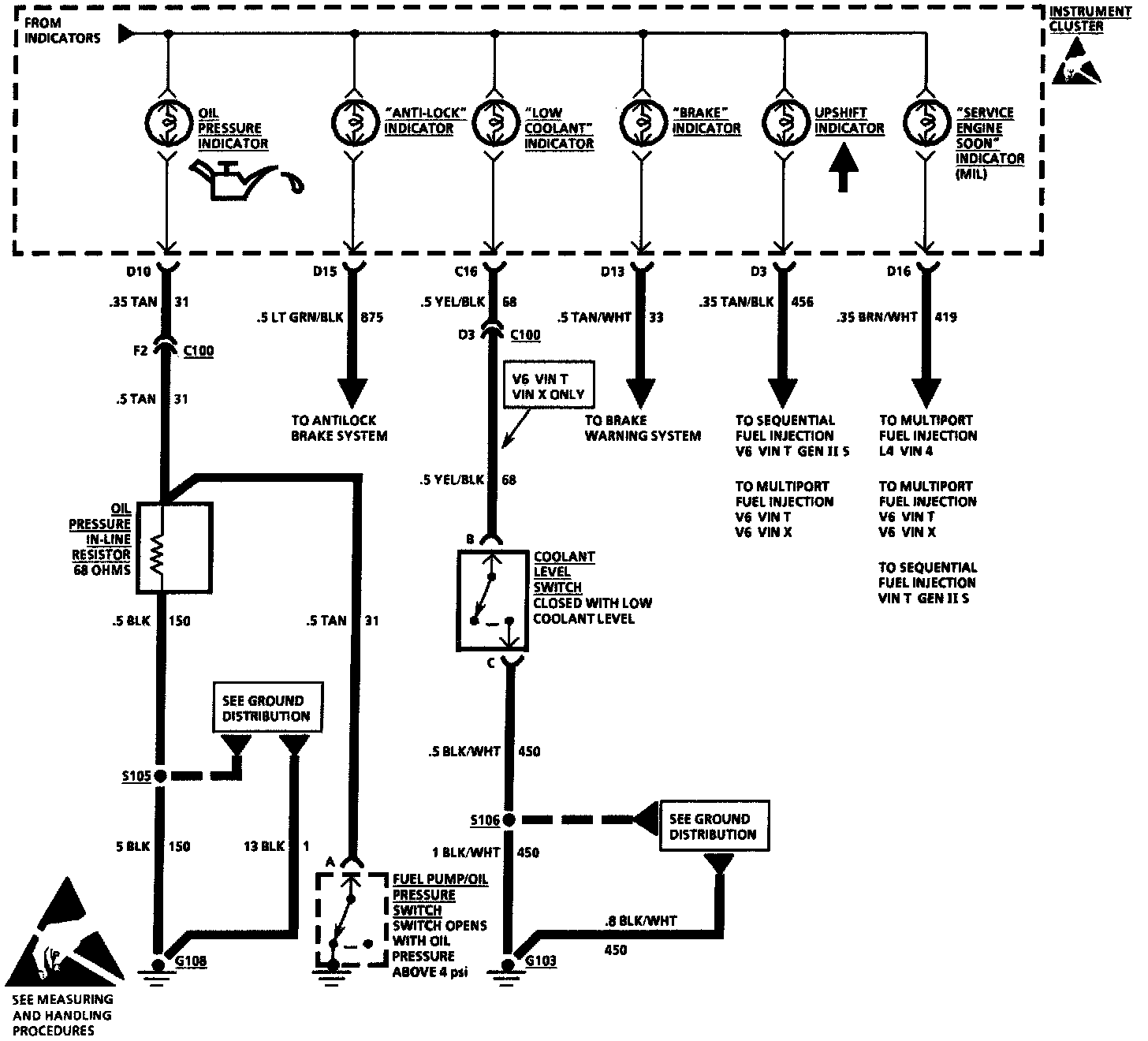

Instrument Cluster: With Gages Cont.:
