C200

Rows 2 Through 9:

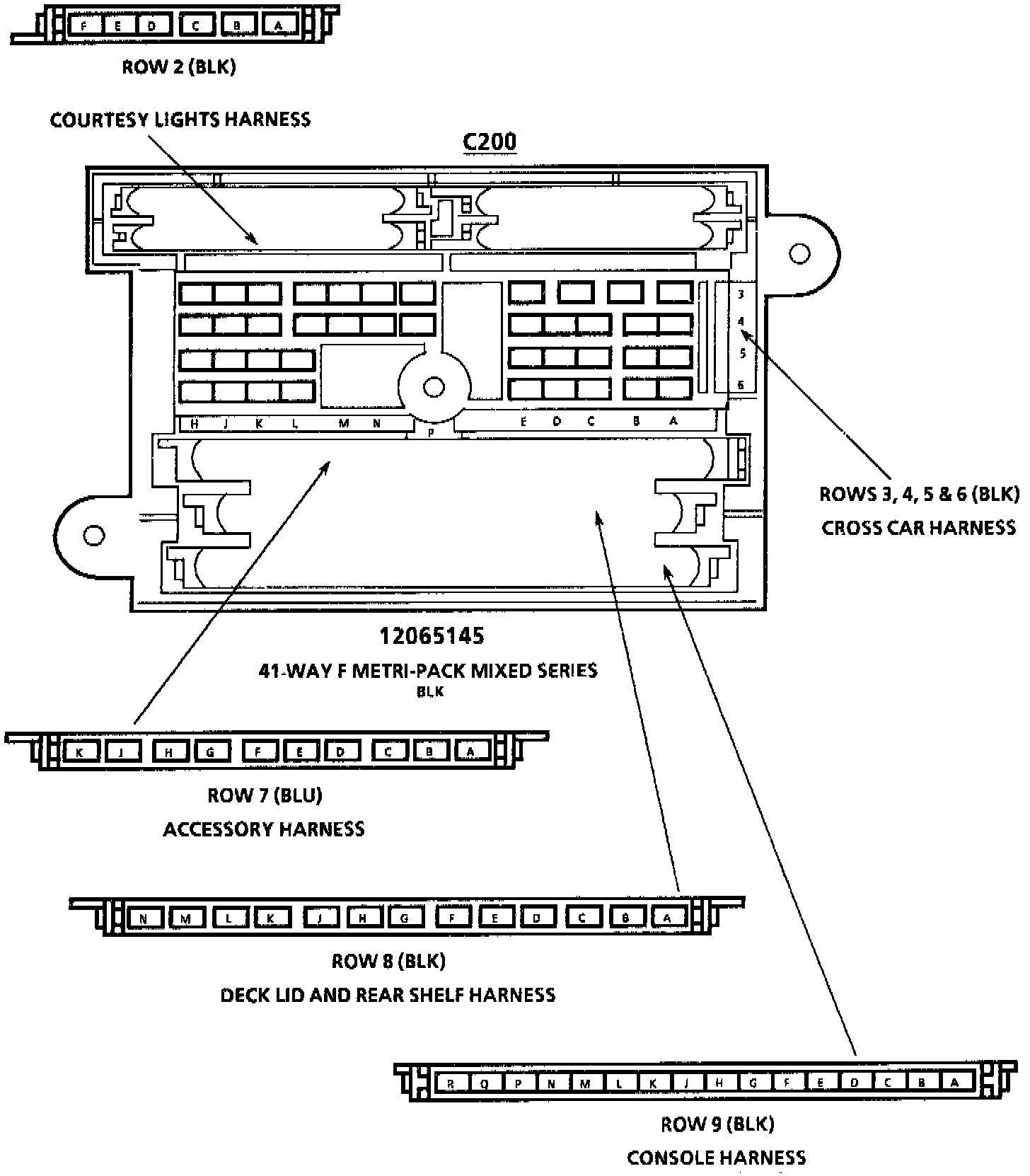

Connector face

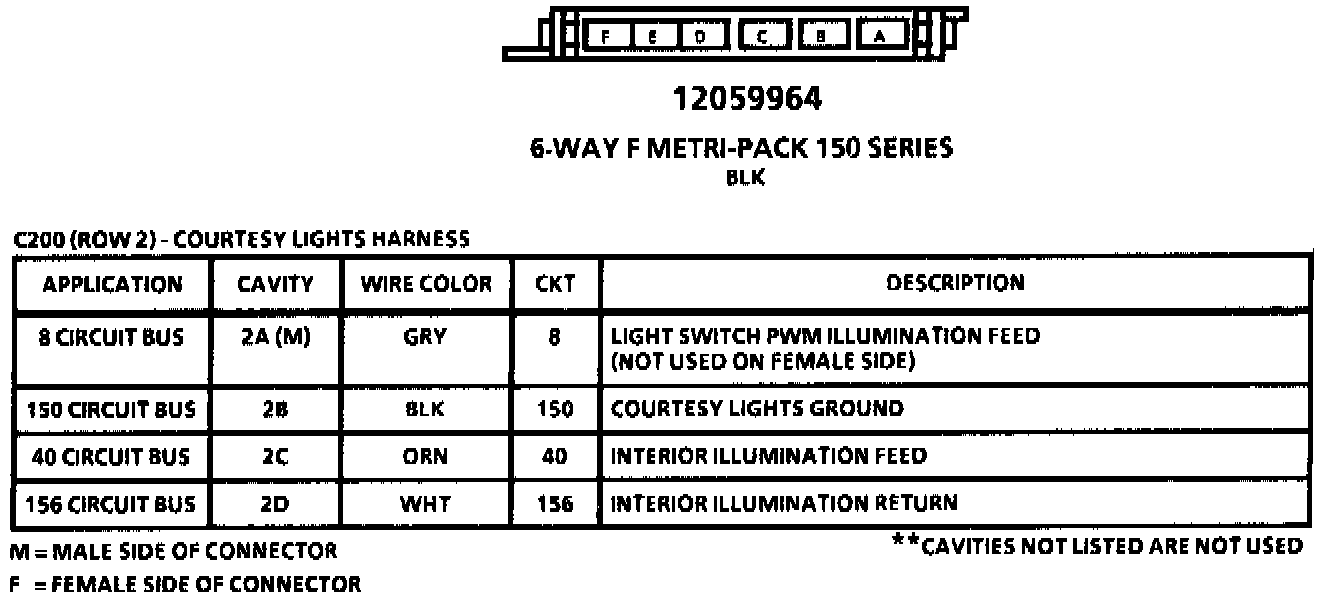

C200 Row 2:

Row 2

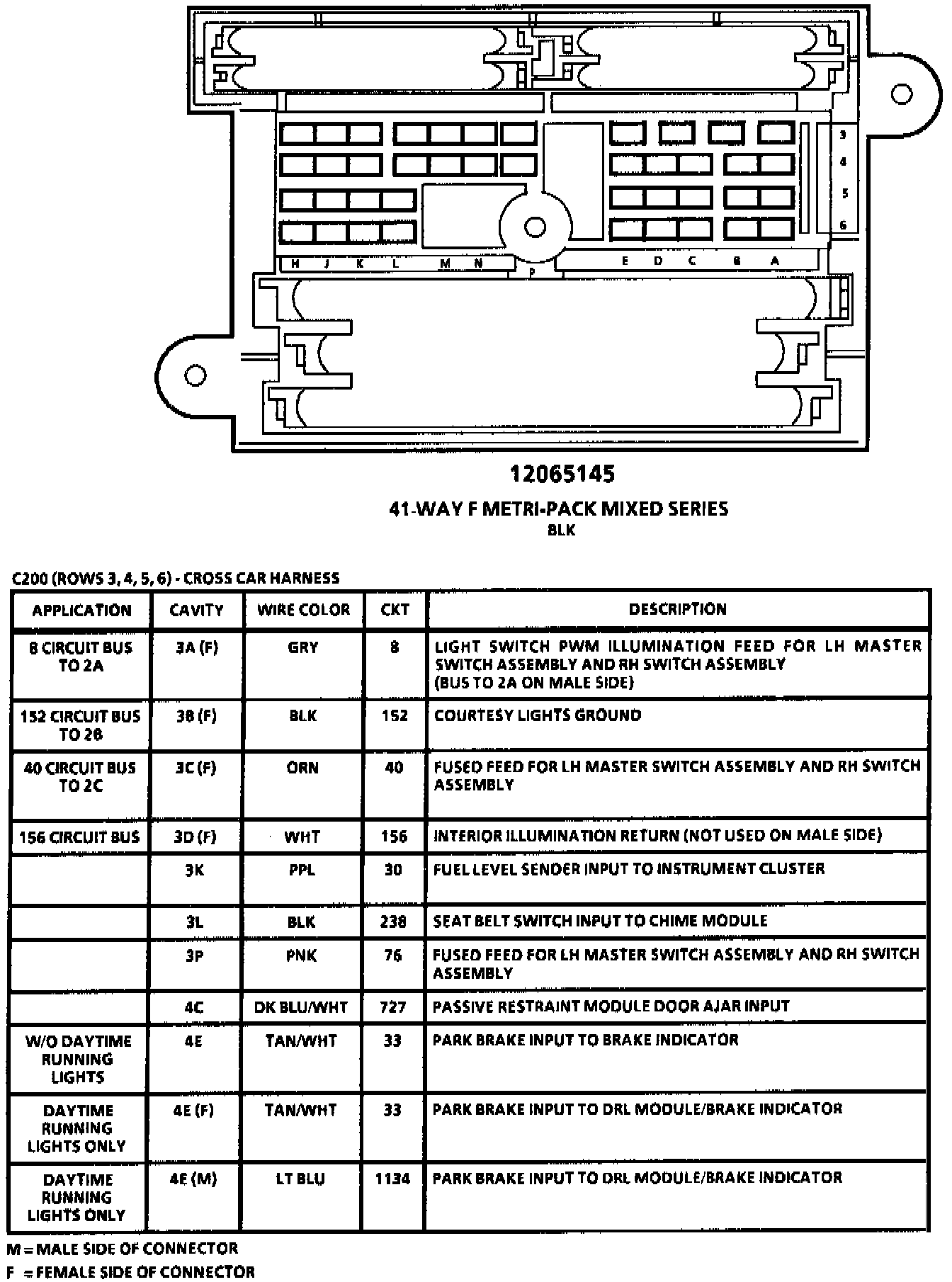

C200 Rows 3 Through 6:

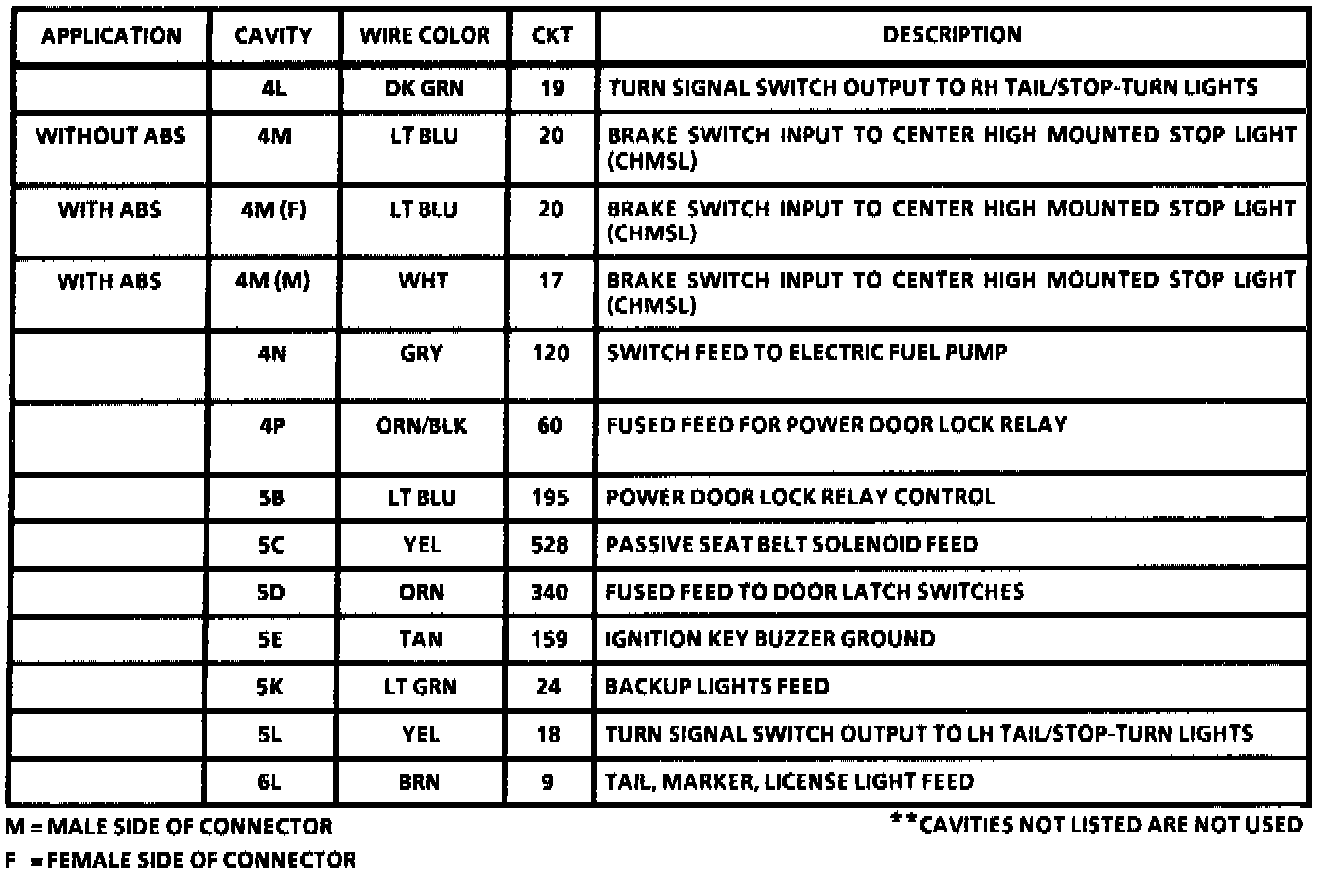

C200 Rows 3 Through 6 Cont:

Row 3, 4, 5 & 6

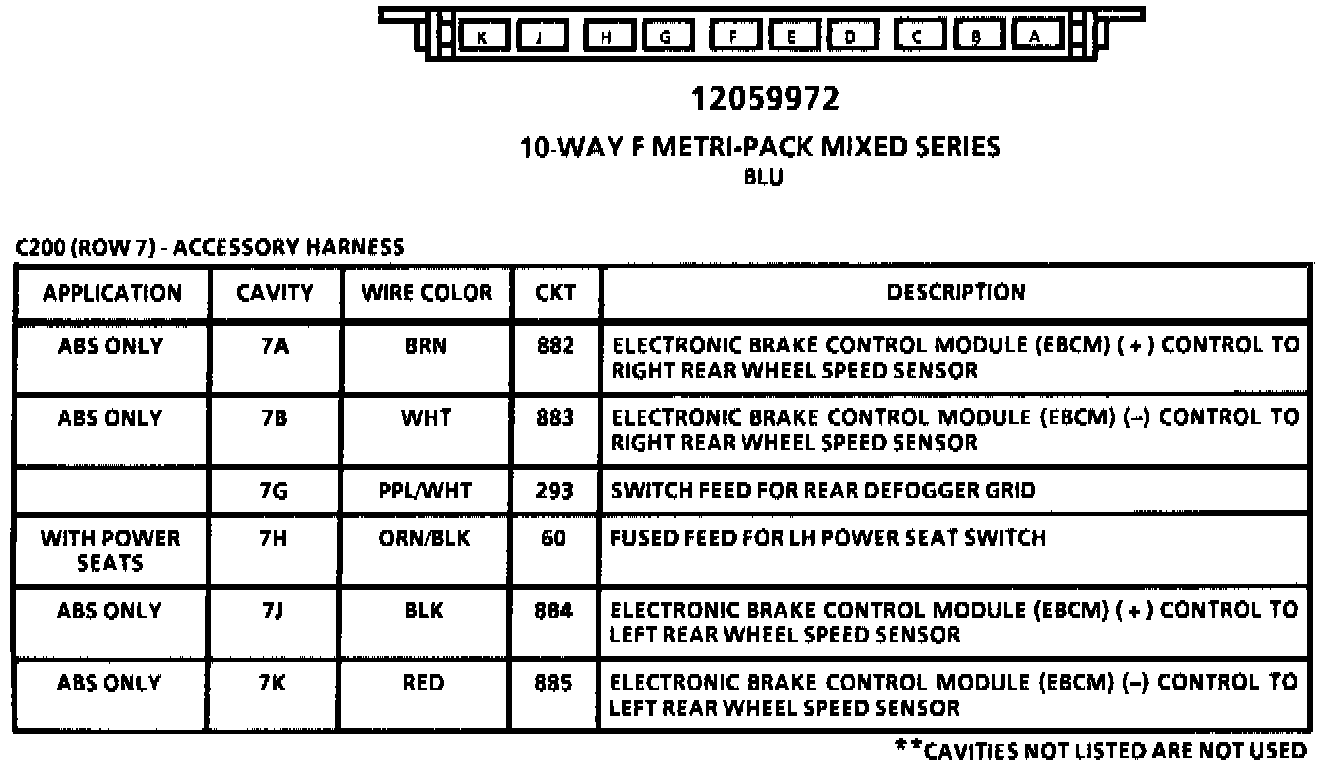

C200 Row 7:

Row 7

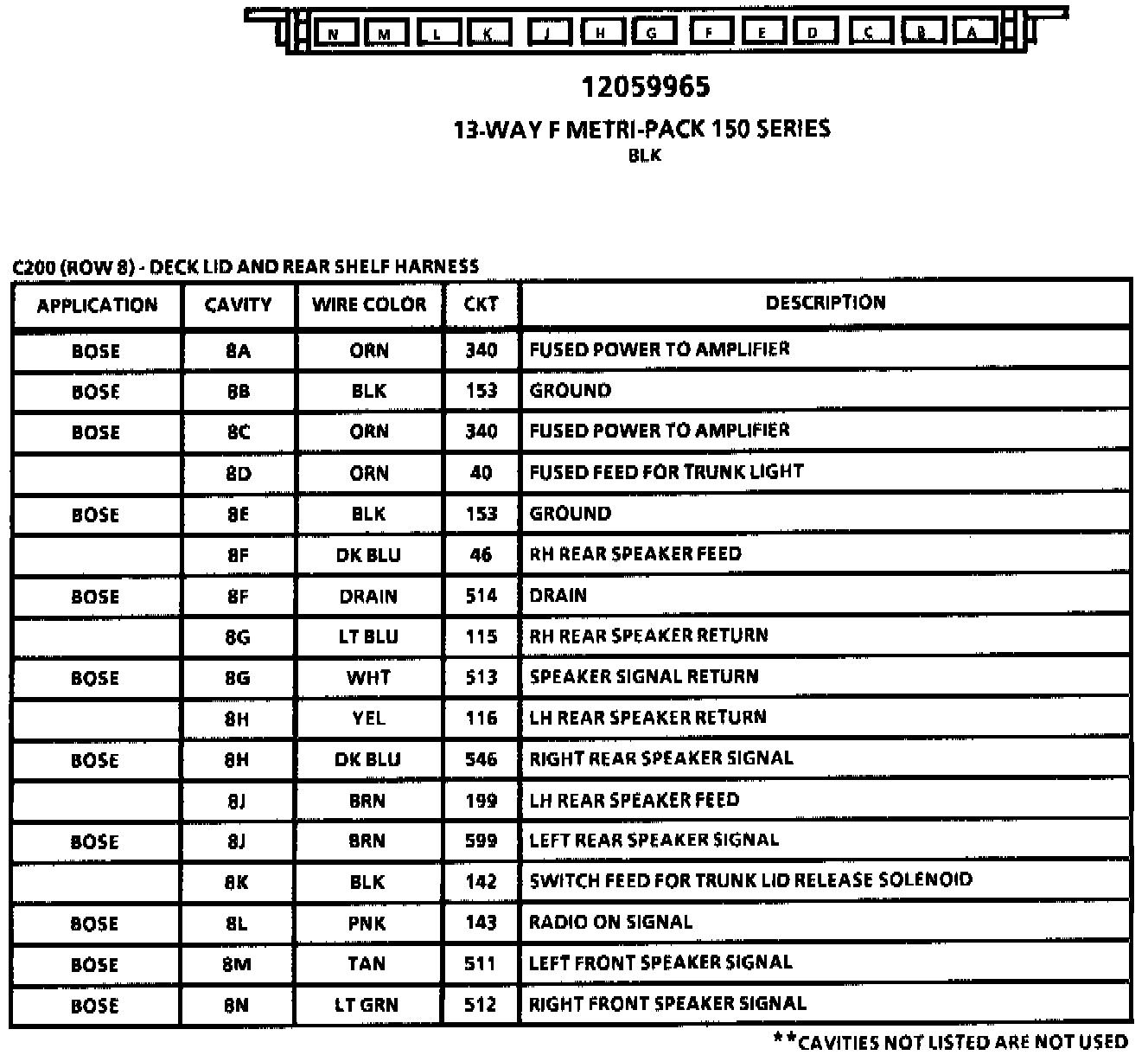

C200 Row 8 Deck Lid And Rear Shelf Harness:

Row 8

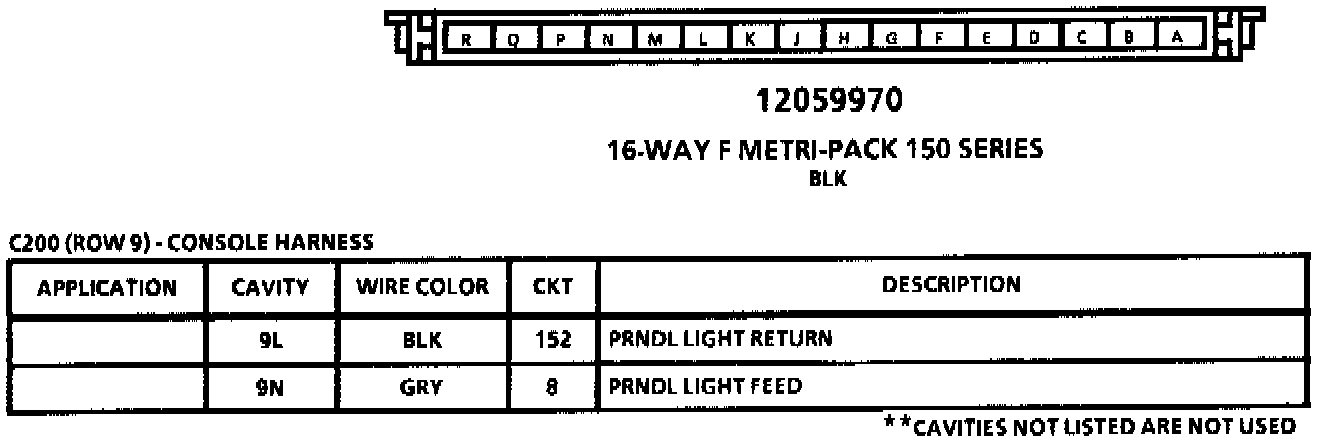

C200 Row 9 Console Harness:

Row 9
