Lumina L4-134 2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>
C100-C199
>>
C150
C150
Forward Lamp Harness To I/P Harness:

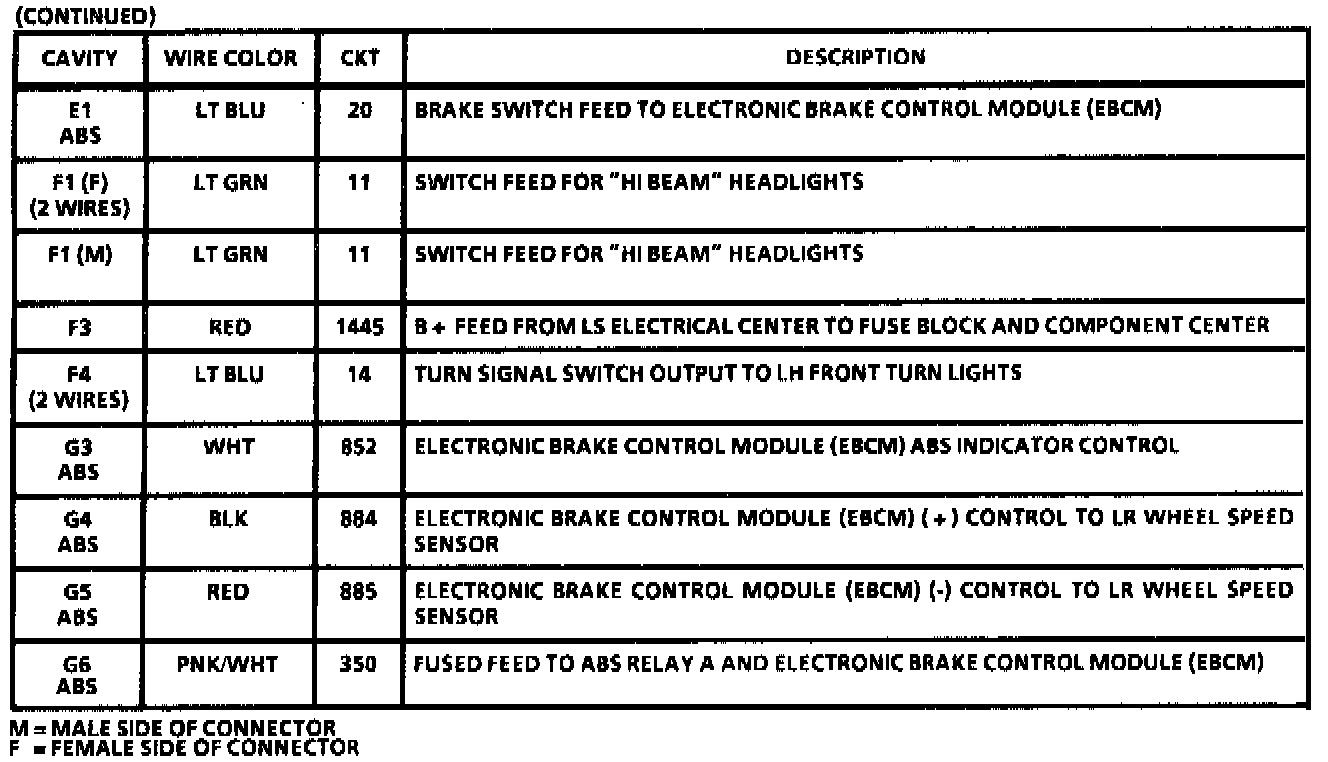

Forward Lamp Harness To I/P Harness Cont.:
