Chart 1 Wipers Do Not Operate In Any Mode
Chart 1 Wipers Do Not Operate In Any Mode

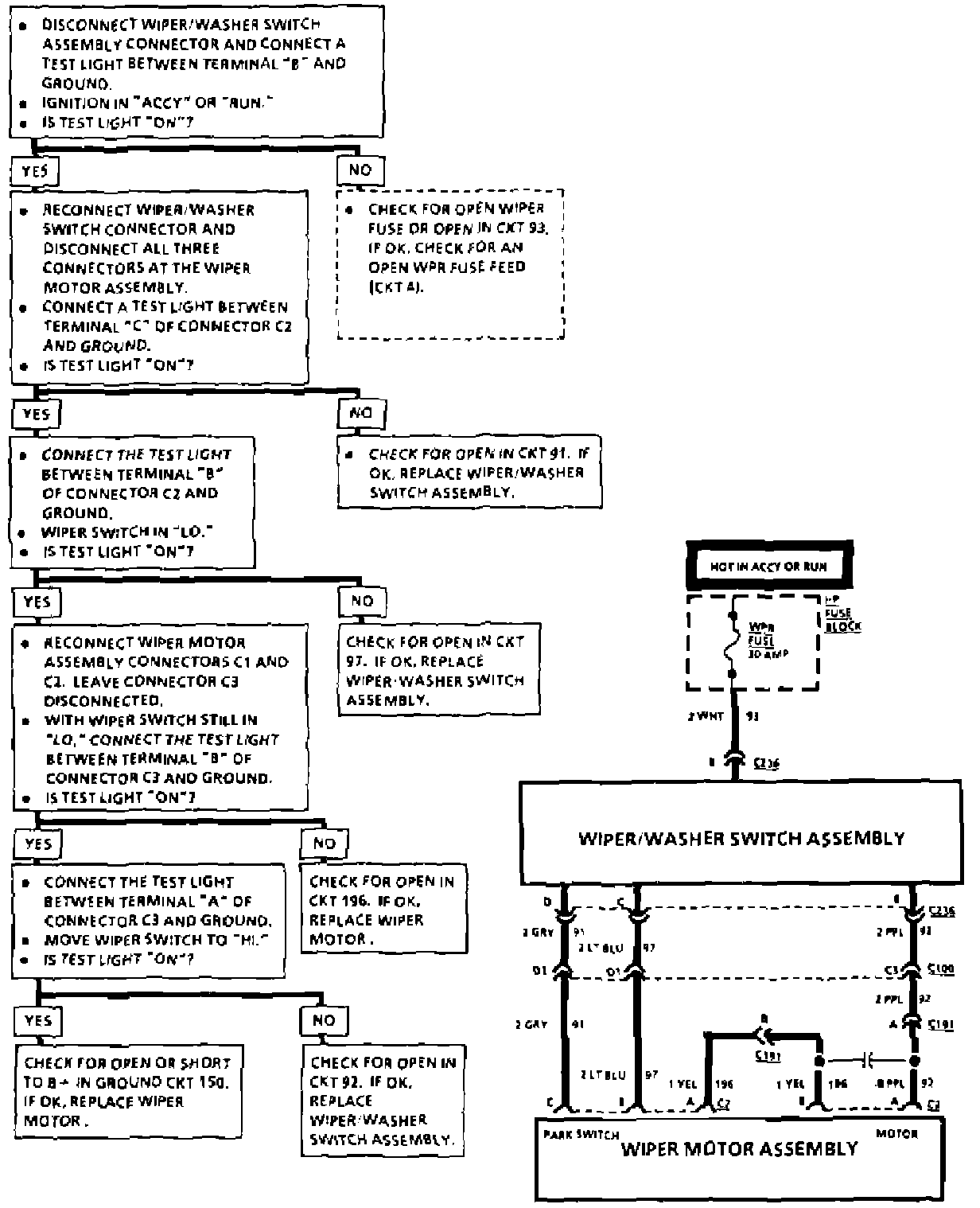

Fig. 60 Chart 1 - Wipers do not operate at any speed:
