Rear Suspension

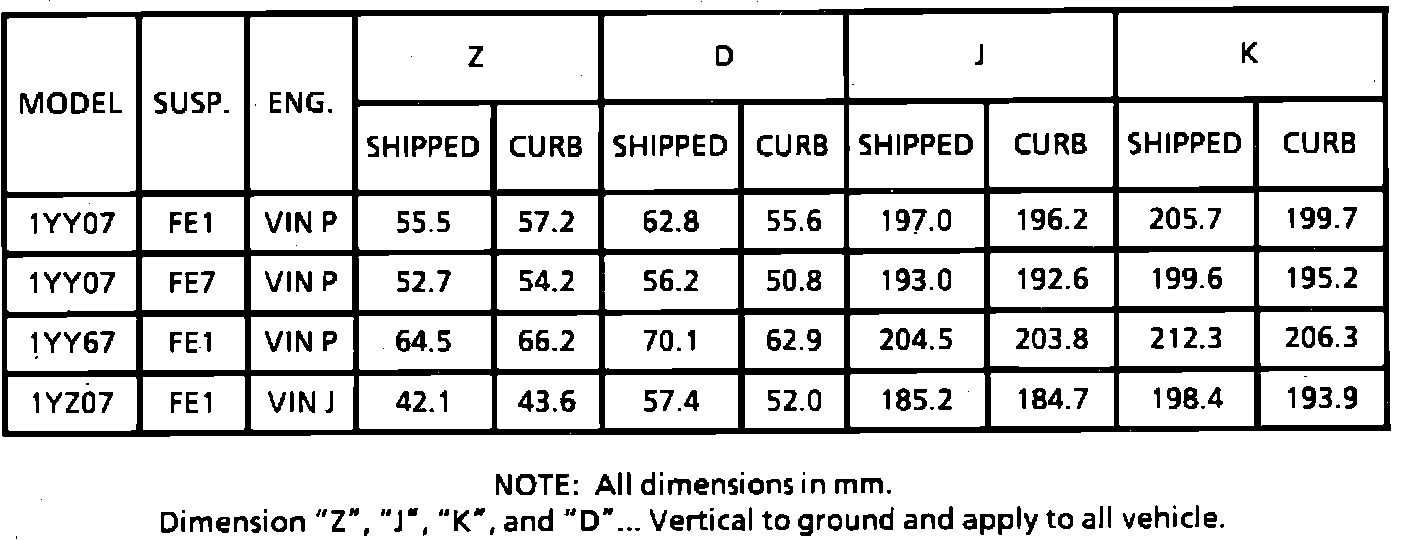

Fig. 9 Ride Height Specifications. 1992 (EF1=Soft Ride Suspension; FE7=Heavy Duty Suspension; VIN P=V8-350/5.7L Single Cam Engine; VIN J=V8-350/5.7L 4 Cam Engine; 1YY07=Hatchback; 1YY67=Convertible; 1YZ07=ZR-1 Hatchback):
