Home >> Chevrolet >> 1993 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Diagrams >> Heater and A/C Control Head >> Electronic A/C

Electronic A/C

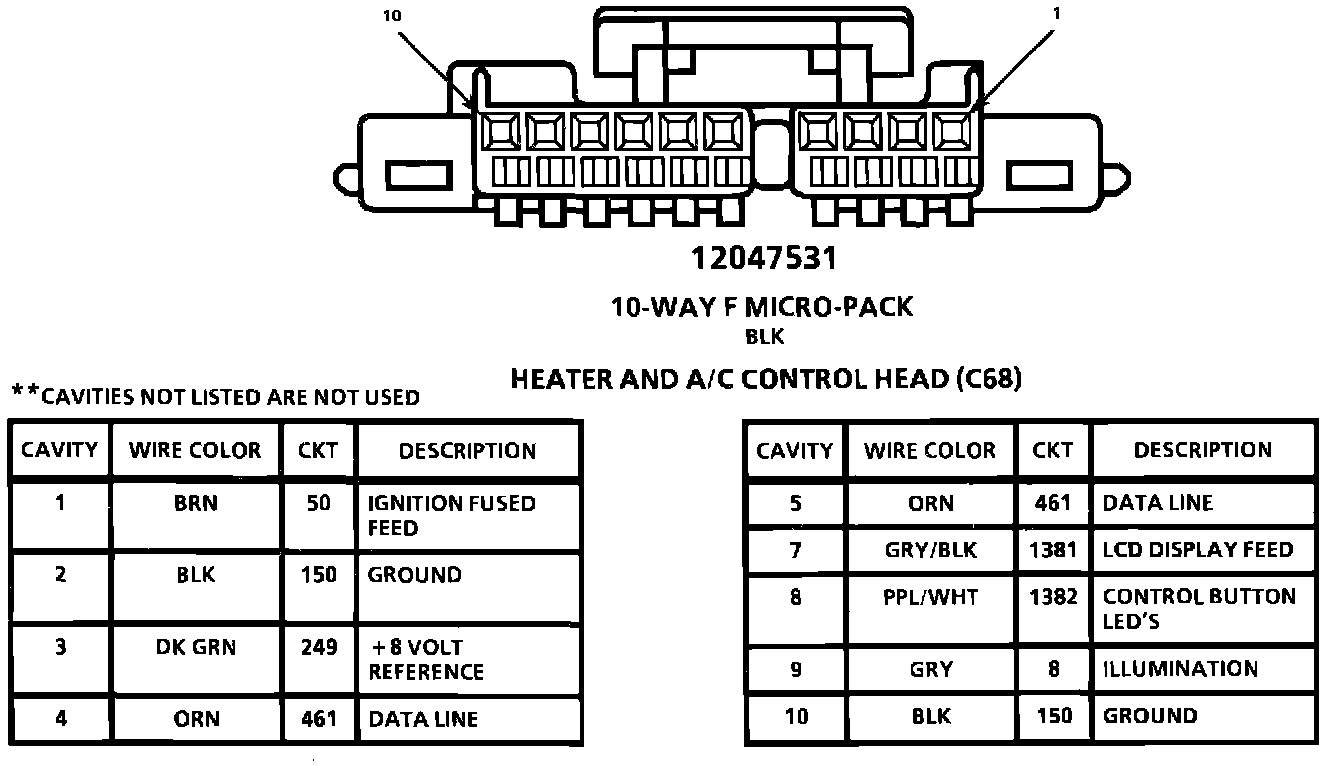

Heater And A/C Control Head (Electronic):
