Home >> Chevrolet >> 1993 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Ignition Timing >> Ignition Timing Connector >> Locations

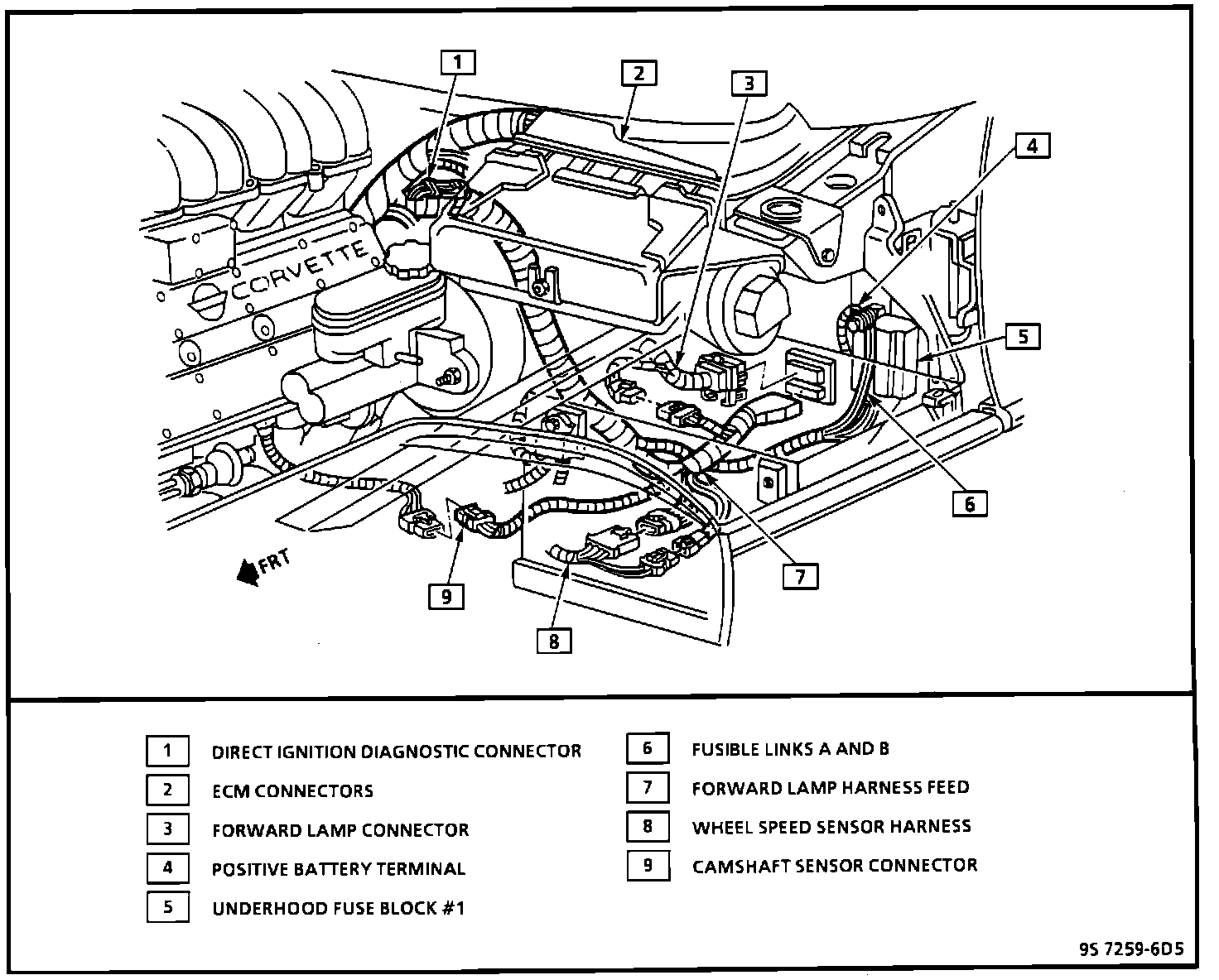

Ignition Timing Connector: Locations

Engine Wiring Harness - Left Rear Of Engine Compartment:
