Secondary Injector Control Module: Service and Repair

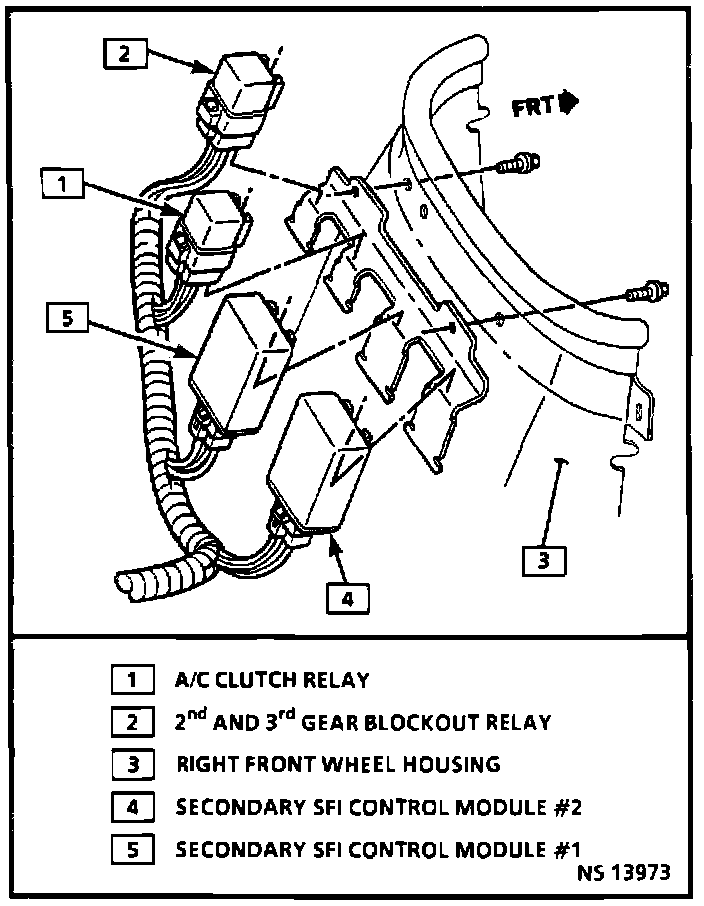

Underhood Relay Locations:

REMOVAL:
1. Disconnect the electrical connector from the relay.
2. Remove the relay.

INSTALLATION:
1. Install the new relay.
2. Connect the electrical connector.
