Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Relays and Modules - Emission Control Systems
>>
Air Injection Pump Relay
>>
Locations
>>

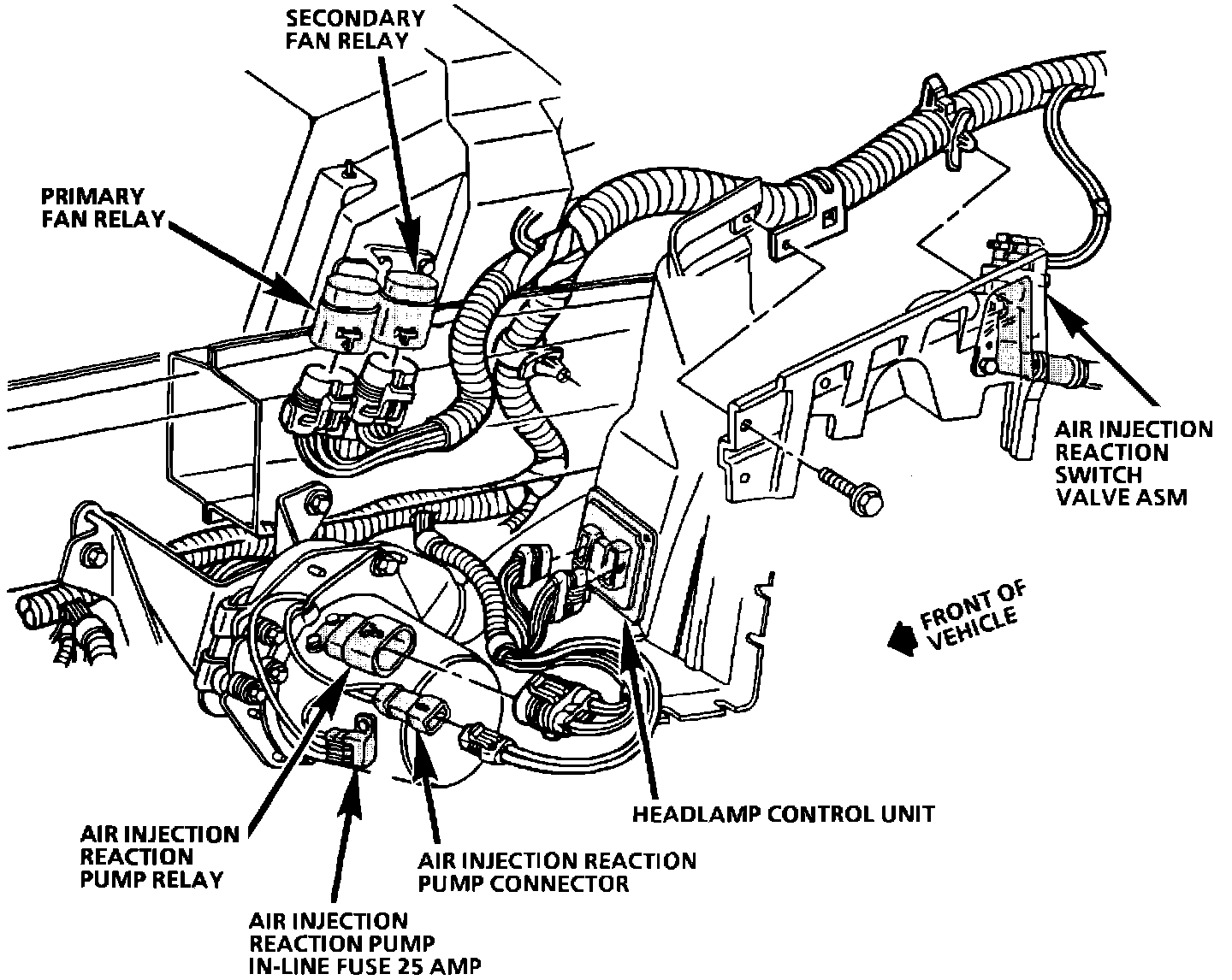

Air System Electric Air Pump Relay
Air System Electric Air Pump Relay
LH Front Of Engine Compartment:
