Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Information Bus (Data Line)
Information Bus (Data Line)

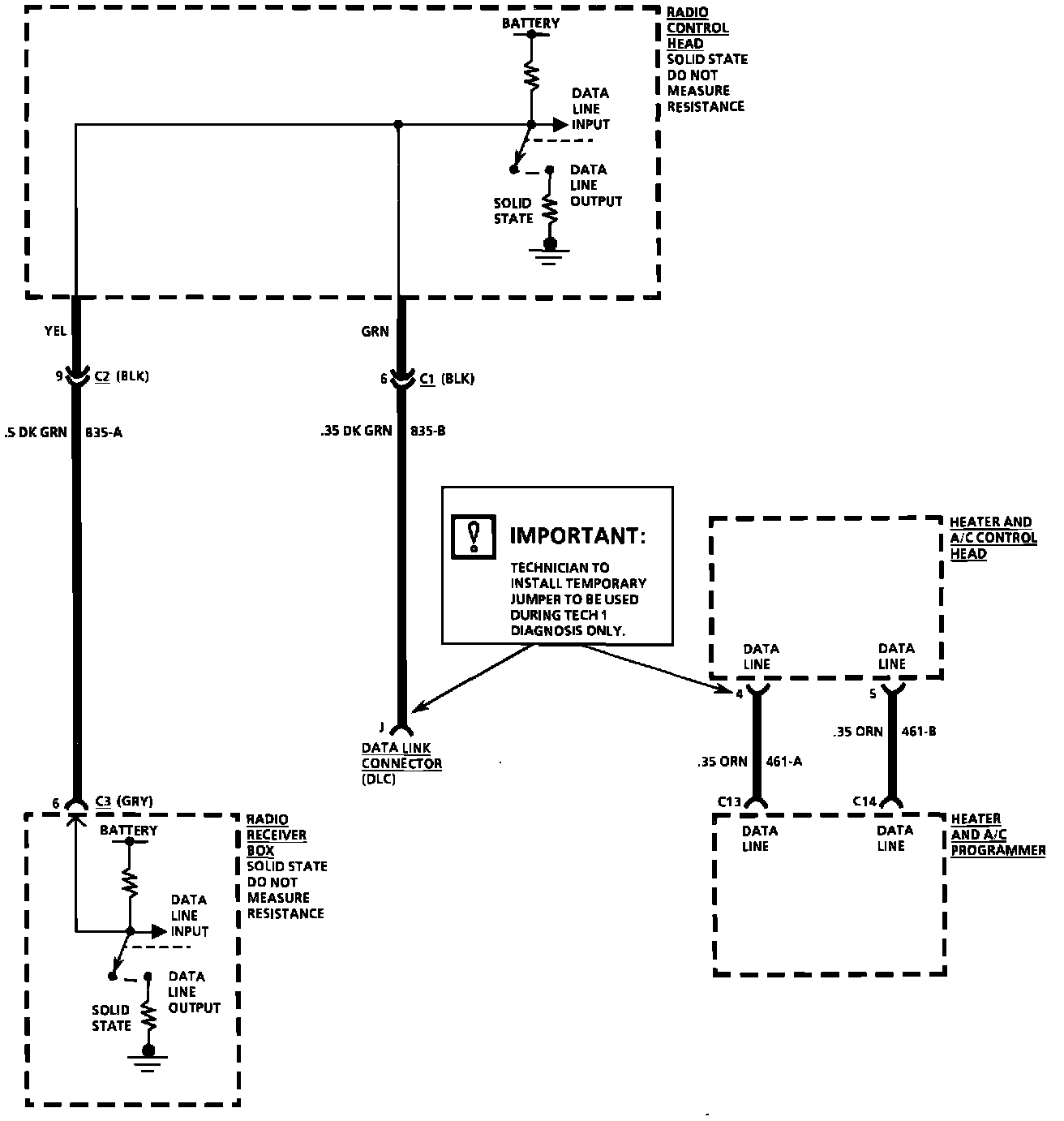

Entertainment And Comfort (E & C) Bus:
